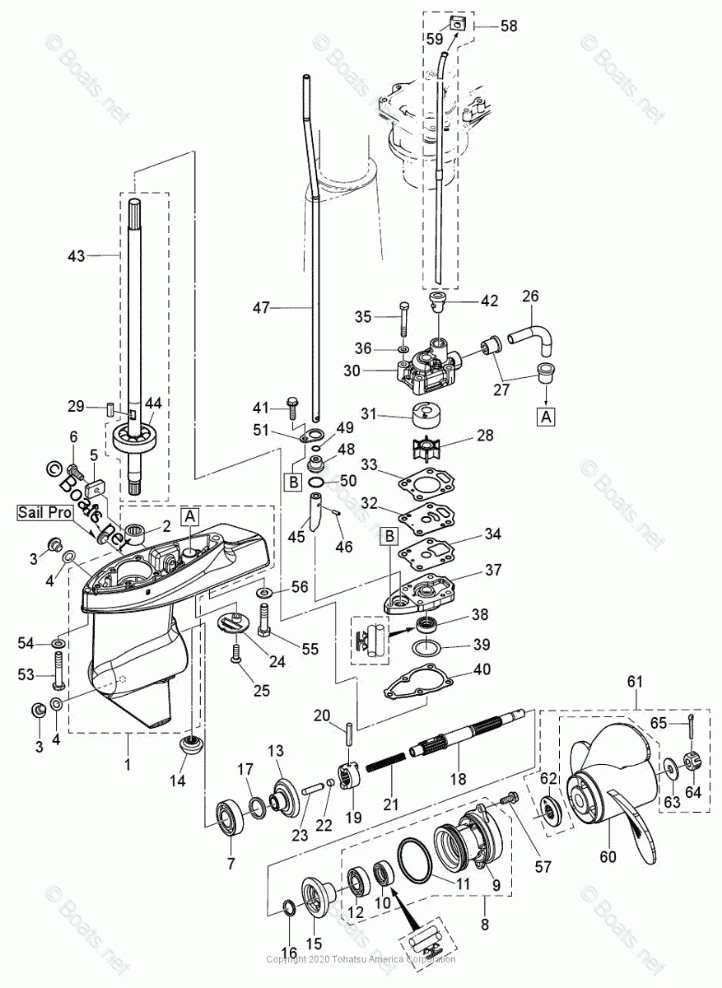

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS4D
Tohatsu
#oem кодцена
8-3
332600052M
OIL PLUG (8 X 1.25)
8-43
369643020M
DRIVE SHAFT L
8-59
369651950M
WATER TUBE GROMMET
8-58
369651100M
WATER PIPE L
8-58
369651000M
WATER PIPE S
8-26
369650350M
WATER PIPE LOWER
8-32
369650250M
GUIDE PLATE
8-37
369650171M
PUMP CASE, LOWER
8-23
369642230M
PUSH ROD
8-47
369660131M
CAM ROD L
8-63
369641240M
WASHER, PROP NUT
8-64
369641210M
PROP NUT
8-16
369640320M
WASHER,BEVEL GEAR C
8-2
369602110M
BEARING
8-24
369602060M
SUB WATER STRAINER
8-20
301642170M
PIN CLUTCH
8-47
369660121M
CAM ROD S
8-51
369660330M
STOPPER
8-7
960106004M
BEARING
8-44
960106300M
BEARING
8-33
369650181M
GASKET, WATER PUMP CASE
8-39
369640821M
369640230M *{/*MAKES SHIM KIT 369640230M*/}*
8-39
369640811M
369640230M *{/*MAKES SHIM KIT 369640230M*/}*
8-4
332600061M
GASKET (10 MULTIPLE)
8-60
3R1B645162
PROP 4/5/6HP (7.7 DIA. x 8 PITCH)
8-60
3R1B645142
PROP 4/5/6HP (7.7 DIA. x 7 PITCH)
8-12
960106002M
BEARING
8-21
393642210M
CLUTCH SPRING
8-65
9515030318M
SPLIT PIN (10 MULTIPLE)
8-25
9218030620M
SCREW (10 MULTIPLE)
8-55
9161E30835M
BOLT (10 MULTIPLE)
8-45
3GR660110M
CLUTCH CAM
8-15
3GR640890M
BEVEL GEAR (C) *{/*WHEN REPLACING 369640302M YOU MUST REPLACE GEARS A, B, C AS A SET*/}*
8-52
3DK610160M
GROMMET
8-19
301642151M
CLUTCH
8-54
9401E30600M
WASHER (10 MULTIPLE)
8-50
332660320M
O-RING
8-31
369650110M
LINER, WATER PUMP CASE
8-34
369650290M
GASKET, PUMP GUIDE PLATE
8-29
369650220M
KEY
8-28
369650211M
IMPELLER NS3.5B/NS5B/4-6HP 4STR
8-40
369650200M
GASKET, WATER PUMP CASE LOWER
8-30
369650160M
PUMP CASE, UPPER
8-42
369650140M
SEAL RUBBER LOWER
8-43
369643010M
DRIVE SHAFT S
8-49
369660211M
O-RING A
8-22
369642220M
SPRING HOLDER
8-18
369642111M
PROPELLER SHAFT (12 SPLINE)
8-17
369640120M
SHIM KIT
8-38
369602230M
OIL SEAL
8-10
369601110M
OIL SEAL, PROPELLER SHAFT
8-11
345650150M
O-RING
8-27
369650360M
SEAL RUBBER
8-60
369B645181
PROP 4/5/6HP (7.9 DIA. x 9 PITCH)
8-35
9161E30645M
BOLT
8-41
9101E35625M
BOLT & WASHER (10 MULTIPLE)
8-53
9161E30645M
BOLT
8-14
3GR640200M
BEVEL GEAR (B) *{/* IF REPLACING 369640202M SEE BULLETIN 17-020US*/}*
8-13
3GR640100M
BEVEL GEAR (A)
8-46
9514070310M
SPRING PIN (10 MULTIPLE)
8-56
9401030800M
WASHER (10 MULTIPLE)
8-36
9401030600M
WASHER (10 MULTIPLE)
8-57
9101E35616M
BOLT & WASHER (10 MULTIPLE)
8-1
369Q600003
GEAR CASE (AMB)
8-6
9101030616M
BOLT (10 MULTIPLE)
8-61
3H6873260M
PROP HDWR KIT 4C/5B/F4/5/6A2 &B
8-5
3H6602180M
ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*
8-62
3AS642300M
THRUST HOLDER, PROPELLER
8-60
393B645121
PROP 4/5/6HP (7.9 DIA. x 6 PITCH)
8-8
369Q873231
PROP SHAFT HOUSING ASSY (AMB)
8-9
369Q601011
PROP SHAFT HOUSING (AMB)
8-48
3UA660310M
CAM ROD BUSHING
