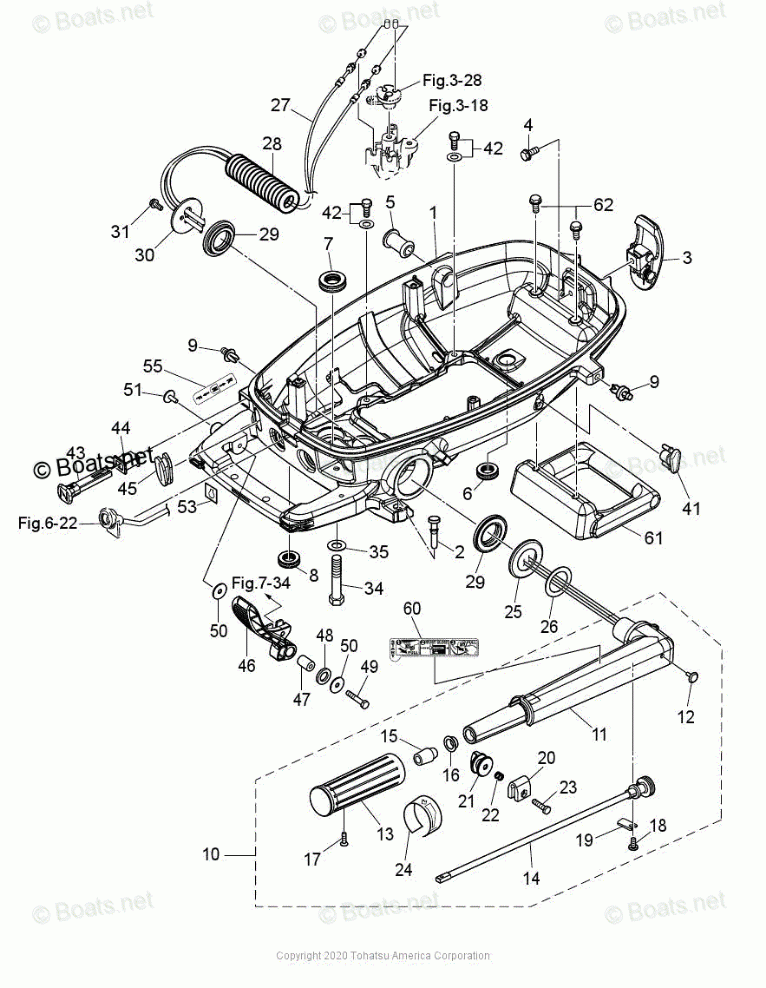

BOTTOM COWL & TILLER HANDLE

Tohatsu MFS5DLPG
Tohatsu
#oem кодцена
10-50
345051221M
WASHER, RACHET
10-2
3GR671610M
GROMMET, 5.5-9.5-44
10-28
3BJ061330M
PROTECTOR (L=320MM) NLA *{/*PART IS NO LONGER AVAILABLE*/}*
10-47
3GR630660M
COLLAR, 15.9-17.9
10-30
3GR631070M
COVER
10-48
3GR631080M
WASHER, 30-45-1
10-27
3GR636000M
THROTTLE WIRE
10-46
3GR661100M
SHIFT LEVER
10-45
3GR662600M
GROMMET, 21-38.5
10-44
3GR671040M
BUSHING, CHOKE ROD
10-41
3GR671290M
GROMMET
10-5
3GR671870M
GROMMET, 10.5-15.5-20.5-32
10-24
3AC720190M
THROTTLE DECAL
10-49
3H6624450M
BOLT
10-25
3H6630260M
SPACER, HANDLE
10-29
3H6631020M
BUSHING, STEERING HANDLE
10-60
3PG675580M
STARTING PROCEDURE DECAL
10-51
3T5760370M
PLUG ,CABLE TERMINAL
10-62
3V1601080M
BOLT, 6-16 PRE-COATED (10 MULTIPLE)
10-35
9402030600M
WASHER (10 MULTIPLE)
10-43
3H6671511M
CHOKE ROD (4-STROKE NEW STYLE)
10-61
3WL611990M
REAR CARRYING HANDLE MFS4/5/6D (2020)
10-7
3B7760930M
GROMMET
10-12
350671540M
PIN
10-8
345671170M
GROMMET
10-19
3B2630630M
SUPPORTER
10-3
3AA671201M
COWL LATCH ASSY.
10-26
3B2631080M
WASHER
10-10
3PGW630030
TILLER HANDLE ASSY
10-11
3V1W630113
TILLER HANDLE
10-23
9101030625M
BOLT (10 MULTIPLE)
10-34
9101030625M
BOLT (10 MULTIPLE)
10-4
9101E35616M
BOLT & WASHER (10 MULTIPLE)
10-42
9101E35616M
BOLT & WASHER (10 MULTIPLE)
10-31
9101E35616M
BOLT & WASHER (10 MULTIPLE)
10-15
3H6630480M
SHAFT, RUBBER THROTTLE
10-9
350671540M
PIN
10-16
3H6635100M
BUSHING
10-13
3R3630120M
GRIP
10-20
3V1630351M
FRICTION PIECE
10-22
3V1630360M
SPRING
10-14
3V1630410M
THROTTLE SHAFT
10-21
3V1630770M
ADJUST NUT
10-17
9208030518M
SCREW (10 MULTIPLE)
10-18
9215030612M
SCREW (10 MULTIPLE)
10-6
338671630M
SUPPORTING RUBBER, FUEL PIPE
10-1
3WLW671000
BOTTOM COWL, MFS5DLPG (WHITE) 2020
