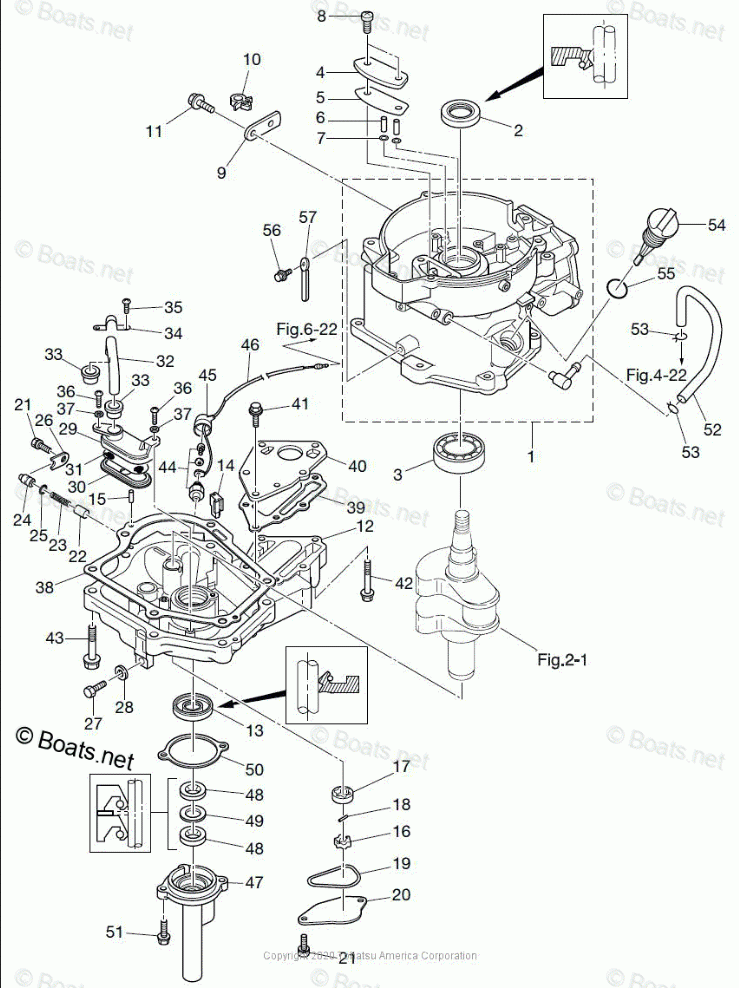

CYLINDER + OIL PAN

Tohatsu MFS6D
Tohatsu
#oem кодцена
1-25
345660210M
O-RING A
1-57
3PR069720M
CLAMP
1-54
3H6074210M
FILLER CAP, ENGINE OIL
1-55
3H6074220M
O-RING
1-16
3H6076010M
ROTOR, OIL PUMP INNER
1-17
3H6076020M
ROTOR, OIL PUMP OUTER
1-18
3H6076030M
PIN, OIL PUMP
1-20
3H6076060M
COVER, OIL PUMP
1-22
3H6076210M
PLUNGER, CONTROL
1-23
3H6076220M
SPRING, PRESSURE
1-24
3H6076230M
SEAT, SPRING
1-26
3H6671150M
COVER, PLUNGER
1-45
3KY076120M
GROMMET
1-52
3R1074350M
BREATHER PIPE
1-33
3H6074160M
SEAL RUBBER, STRAINER
1-6
3R1074390M
COLLAR, BREATHER
1-19
3R1076050M
O-RING, OIL PUMP
1-42
9101145640M
BOLT (10 MULTIPLE)
1-21
9101216616M
BOLT (10 MULTIPLE)
1-43
9101245840M
BOLT
1-35
9215216512M
SCREW (10 MULTIPLE)
1-8
9215216616M
SCREW
1-37
9401210500M
WASHER (10 MULTIPLE)
1-7
9414030500M
WAVE WASHER
1-3
960136205M
BALL BEARING
1-41
9101F45620M
BOLT (10 MULTIPLE)
1-34
3H6074170M
STOPPER, STRAINER
1-32
3H6074150M
PIPE, STRAINER
1-4
3ASB074310
CAP, BREATHER CHAMBER, 4/5/6B NLA *{/* PART IS NO LONGER AVAILABLE*/}*
1-5
3AS074320M
GASKET, BREATHER CAP
1-1
3GRB011841
CYLINDER, 4/5/6C, 4-ST. (AMB)
1-27
3H6077051M
BOLT, DRAIN
1-51
9101E35620M
BOLT & WASHER (10 MULTIPLE)
1-15
345011110M
DOWEL PIN 6-12
1-2
3AB001210M
OIL SEAL
1-53
3C7022150M
CLIP
1-28
3H6074060M
WASHER
1-11
9101E35612M
BOLT & WASHER (10 MULTIPLE)
1-56
9101E35612M
BOLT & WASHER (10 MULTIPLE)
1-47
369012104M
HEAD, CRANKCASE
1-49
369012170M
SPACER
1-12
3AS077090M
OIL PAN, NSF4/5/6A,B,C *{/*requires 3R1076050M o-ring for oil pump*/}*
1-31
3H6074130M
MESH, STRAINER
1-36
3C8024200M
BOLT 5-16 PRECOATED
1-13
3GR001220M
OIL SEAL
1-48
3GR012150M
OIL SEAL
1-10
3GR069730M
CLAMP
1-46
3GR076130M
LEAD WIRE, OIL PRESSURE SWITCH (L=390MM)
1-9
3GR635050M
HOLDER, CABLE
1-40
3H6023021M
PLATE, EXHAUST NSF5A
1-39
3H6023050M
GASKET, EXHAUST PLATE
1-38
3H6074020M
GASKET, OIL PAN
1-14
3H6074040M
GROMMET, OIL PAN
1-29
3H6074110M
BODY, STRAINER
1-30
3H6074120M
CAP, STRAINER
1-44
3H6076111M
SWITCH, OIL PRESSURE
