ПУСКОВОЙ МЕХАНИЗМ Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8B (2020)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2020
MFS8B

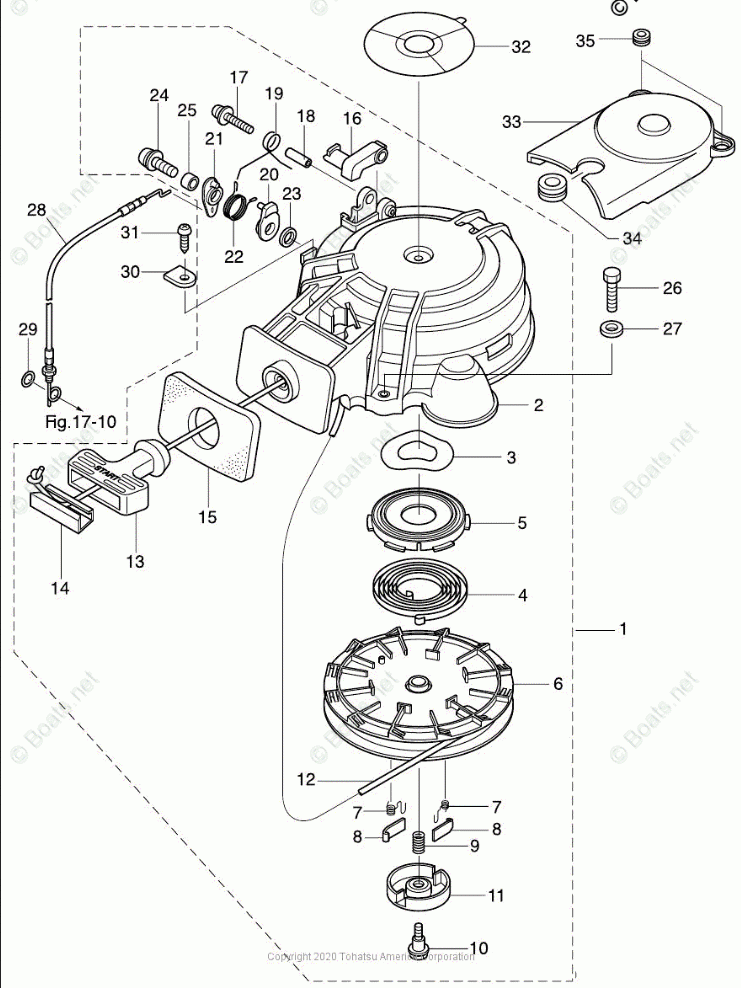

ПУСКОВОЙ МЕХАНИЗМ
ПУСКОВОЙ МЕХАНИЗМ

ПУСКОВОЙ МЕХАНИЗМ

Tohatsu MFS8B

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

7-12

STARTER ROPE

STARTER ROPE

7-3

WAVE WASHER

WAVE WASHER

7-10

BOLT

BOLT

7-19

SPRING, STARTER LOCK

SPRING, STARTER LOCK

7-18

COLLAR

COLLAR

7-1

RECOIL STARTER ASSY, F8/9.8B

RECOIL STARTER ASSY, F8/9.8B

7-15

SEAL RUBBER, STARTER, F8/9.8B

SEAL RUBBER, STARTER, F8/9.8B

7-6

REEL

REEL

7-31

TAPPING SCREW

TAPPING SCREW

7-5

STARTER SPRING CASE

STARTER SPRING CASE

7-34

RUBBER MOUNT

RUBBER MOUNT

7-26

BOLT, PRE-COATED (10@-25)

BOLT, PRE-COATED (10@-25)

7-21

LEVER, STARTER LOCK

LEVER, STARTER LOCK

7-20

CAM, STARTER LOCK

CAM, STARTER LOCK

7-22

SPRING, STARTER LOCK CAM

SPRING, STARTER LOCK CAM

7-17

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

7-14

ROPE ANCHOR

ROPE ANCHOR

7-9

FRICTION SPRING

FRICTION SPRING

7-27

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-32

CAUTION DECAL (B)

CAUTION DECAL (B)

7-7

RETURN SPRING

RETURN SPRING

7-33

BELT COVER

BELT COVER

7-28

WIRE, STARTER LOCK

WIRE, STARTER LOCK

7-24

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

7-23

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-35

GROMMET

GROMMET

7-30

RETAINER

RETAINER

7-11

FRICTION PLATE

FRICTION PLATE

7-4

STARTER SPRING

STARTER SPRING

7-13

STARTER HANDLE

STARTER HANDLE

7-2

STARTER CASE

STARTER CASE

7-16

STARTER LOCK (BLACK)

STARTER LOCK (BLACK)

7-29

O-RING, 1.5-2.5

O-RING, 1.5-2.5

7-32

CAUTION DECAL B

CAUTION DECAL B

7-8

RATCHET

RATCHET

7-25

COLLAR

COLLAR
