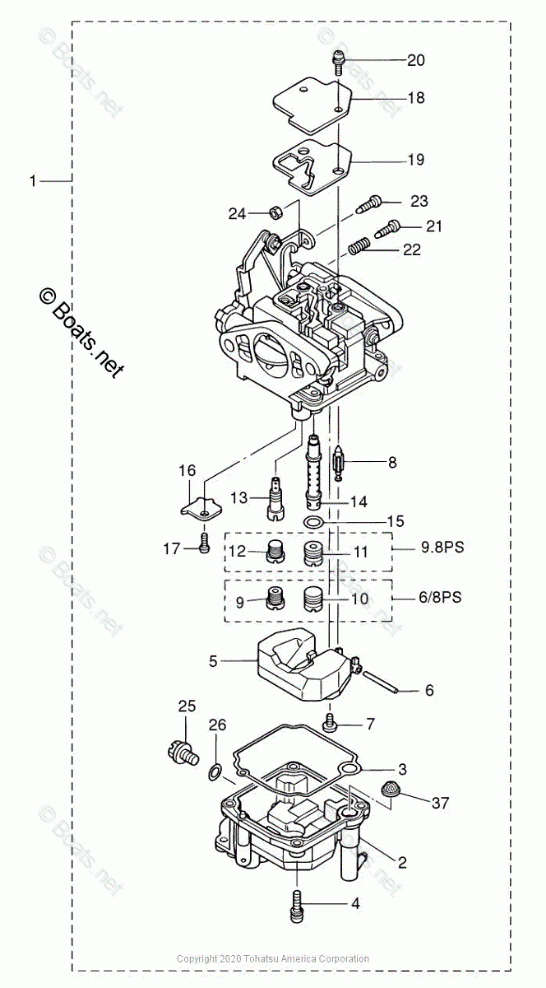

CARBURETOR

Tohatsu MFS8B

CARBURETOR

#

oem код

название

цена

6-15

O-RING

O-RING

6-14

MAIN NOZZLE

MAIN NOZZLE

6-20

SCREW

SCREW

6-17

SCREW

SCREW

6-21

STOP SCREW

STOP SCREW

6-12

PLUG

PLUG

6-9

MAIN JET #76

MAIN JET #76

6-26

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

6-25

DRAIN SCREW

DRAIN SCREW

6-24

NUT

NUT

6-19

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

6-23

STOP SCREW

STOP SCREW

6-10

PLUG

PLUG

6-1

CARBURETOR, F8A3

CARBURETOR, F8A3

6-8

FLOAT VALVE

FLOAT VALVE

6-16

PLATE

PLATE

6-3

GASKET, FLOAT CHAMBER

GASKET, FLOAT CHAMBER

6-2

FLOAT CHAMBER

FLOAT CHAMBER

6-18

COVER PLATE

COVER PLATE

6-6

FLOAT ARM PIN

FLOAT ARM PIN

6-5

FLOAT

FLOAT

6-37

FUEL FILTER

FUEL FILTER

6-4

SCREW

SCREW

6-7

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

6-11

MAIN JET #92

MAIN JET #92

6-22

SPRING

SPRING

6-13

SLOW JET #39

SLOW JET #39

6-1

CARBURETOR, F8A2/A3

CARBURETOR, F8A2/A3
