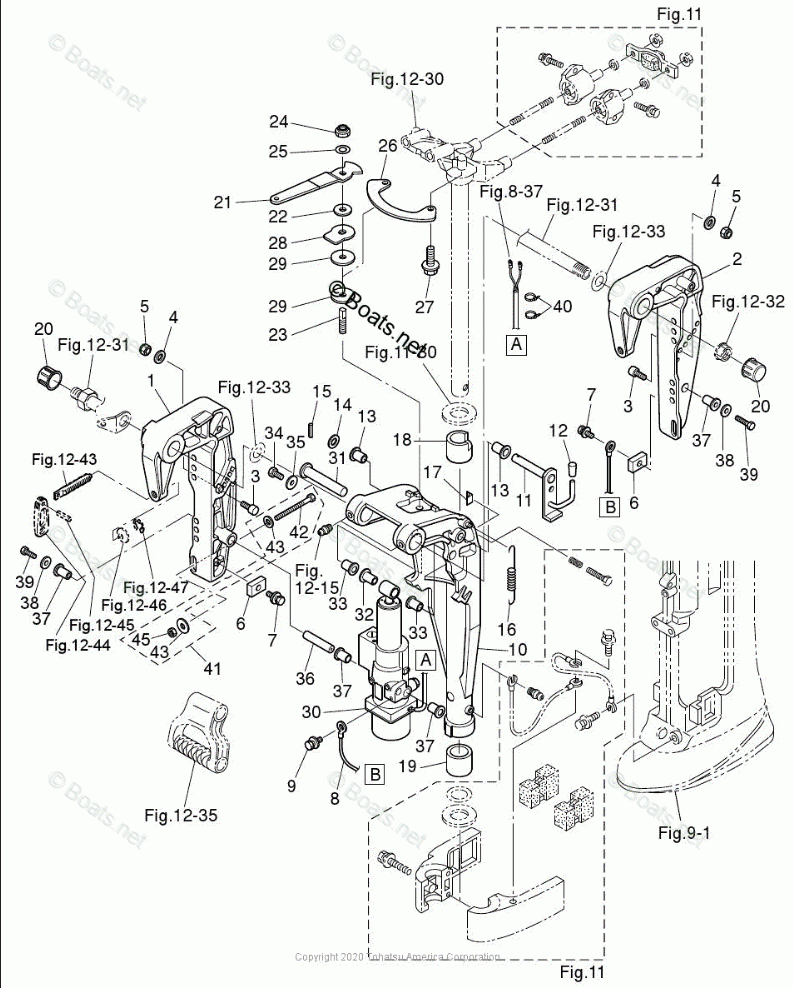

BRACKET (EFT & EPT MODEL)

Tohatsu MFS9.8B
Tohatsu
#oem кодцена
13-35
345051221M
WASHER, RACHET
13-18
3Z0624170M
BUSHING, 24-30-30
13-21
3AA624410M
HANDLE, CO-PILOT
13-26
3AA624470M
PLATE
13-31
3KY770710M
CYLINDER PIN (UPPER)
13-33
3R0770760M
BUSHING, 13-17-19.5
13-22
3R3624430M
WASHER
13-23
3R3624450M
BOLT, CO-PILOT
13-28
3R3624481M
WASHER, CO-PILOT
13-5
3V5624420M
NYLON NUT, CO-PILOT (8MM)
13-17
3Z0630350M
FRICTION PIECE
13-12
369624331M
GRIP
13-37
3Z0770760M
BUSHING, 13-16-31
13-32
3Z0770760M
BUSHING, 13-16-31
13-36
3Z0771011M
CYLINDER PIN (LOWER)
13-3
3Z0771150M
TRIM LOCK PIN
13-40
3Z0843980M
BAND LEAD WIRE 203-LOCAL PURCHASE
13-39
9101030820M
BOLT
13-15
9514033516M
SPRING PIN (10 MULTIPLE)
13-29
3RS624490M
DISK, CO-PILOT
13-8
398623961M
GROUND WIRE
13-19
350624170M
BUSHING
13-13
353632070M
COLLAR
13-7
9101E35616M
BOLT & WASHER (10 MULTIPLE)
13-6
3H6602180M
ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*
13-4
3P0662330M
WASHER (10 MULTIPLE)
13-16
3R0624730M
SPRING, TILT STOPPER
13-10
3V1Q772080
SWIVEL BRACKET (PTT)
13-30
3Z0Q771511
POWER TILT ASSY. (F8/9.8)
13-1
3Z0Q772112
CLAMP BRACKET, (PTT-RIGHT) STARBOARD
13-2
3Z0Q772120
CLAMP BRACKET, (PTT-LEFT) PORT
13-34
9101030612M
BOLT (10 MULTIPLE)
13-27
9101E35616M
BOLT & WASHER (10 MULTIPLE)
13-20
346621270M
BRACKET CAP
13-42
9161E30885M
BOLT
13-45
9301030800M
NUT (10 MULTIPLE)
13-24
9304030800M
NYLON NUT (10 MULTIPLE)
13-25
9401030800M
WASHER (10 MULTIPLE)
13-43
9401030800M
WASHER (10 MULTIPLE)
13-14
9401E31000M
WASHER (10 MULTIPLE)
13-38
307621161M
WASHER
13-9
9101E35612M
BOLT & WASHER (10 MULTIPLE)
13-11
3Z0624762M
TILT STOPPER NO LONGER AVAILABLE *{/*PART IS NO LONGER AVAILABLE*/}*
