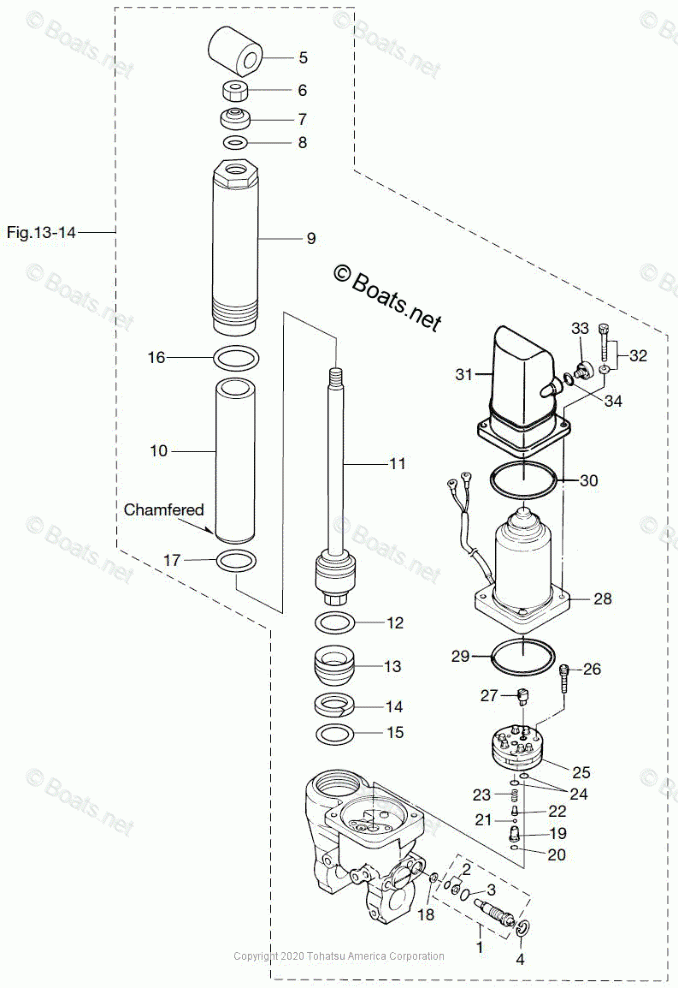

POWER TILT

Tohatsu MFS25C

POWER TILT

#

oem код

название

цена

14-18

SEAL WASHER

SEAL WASHER

14-16

O-RING

O-RING

14-21

BALL

BALL

14-23

SPRING

SPRING

14-25

PUMP

PUMP

14-2

SEAL SET

SEAL SET

14-34

O-RING

O-RING

14-33

CAP ASSY.

CAP ASSY.

14-31

RESERVOIR TANK

RESERVOIR TANK

14-32

BOLT

BOLT

14-30

O-RING, 2.4-66.6

O-RING, 2.4-66.6

14-24

O-RING

O-RING

14-5

JOINT

JOINT

14-22

SPRING SEAT

SPRING SEAT

14-19

VALVE SEAT

VALVE SEAT

14-15

O-RING

O-RING

14-8

O-RING

O-RING

14-26

BOLT

BOLT

14-9

CYLINDER

CYLINDER

14-27

COUPLING, PUMP

COUPLING, PUMP

14-29

O-RING

O-RING

14-3

O-RING

O-RING

14-20

O-RING

O-RING

14-1

MANUAL VALVE ASSY

MANUAL VALVE ASSY

14-28

PTT MOTOR

PTT MOTOR

14-10

INNER TUBE

INNER TUBE

14-17

O-RING

O-RING

14-11

PISTON ROD ASSY

PISTON ROD ASSY

14-6

NUT

NUT

14-12

O-RING

O-RING

14-14

BACK-UP RING

BACK-UP RING

14-13

FREE PISTON

FREE PISTON

14-7

DUST SEAL

DUST SEAL

14-4

C-RING

C-RING
