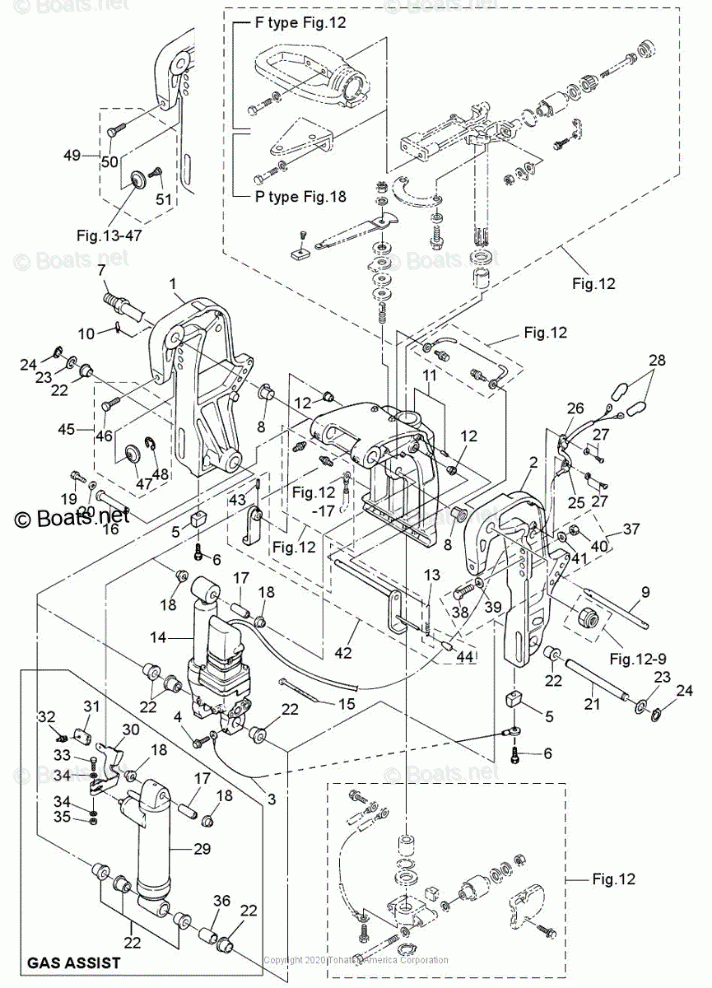

BRACKET (PTT & GAS ASSIST)

Tohatsu MFS30C
Tohatsu
#oem кодцена
13-20
345051221M
WASHER, RACHET
13-21
3KY771010M
CYLINDER PIN (LOWER)
13-7
3AD621910M
SWIVEL BRACKET BOLT (PTT)
13-5
3B7602181M
ANODE
13-38
3C7621332M
BOLT, STERN BRACKET
13-40
3C7621391M
NUT
13-22
3C8770761M
BUSHING, 18-24-22
13-8
3C8772130M
BUSHING
13-50
3C8772160M
CLAMP SCREW (PTT) *{/*threaded end requires bolt #3C8621070M and pad #332621011M to install*/}*
13-49
3C8772170M
CLAMP SCREW KIT
13-42
3GF624661M
TILT STOPPER (PTT TYPE)
13-30
3R0663110M
LOCK LEVER
13-42
3AC624661M
TILT STOPPER (GAS ASSIST)
13-17
3R0770750M
BUSHING, 13-16-40
13-36
3R0771050M
COLLAR
13-23
3R0771120M
WASHER
13-9
3R0771180M
THRUST ROD
13-27
9215035612M
SCREW (10 MULTIPLE)
13-24
9451031800M
C-RING
13-10
9516031000M
R-PIN D=10MM
13-41
9401E31200M
WASHER (10 MULTIPLE)
13-37
3AD721201M
RIGGING BOLT SET
13-45
3RS772171M
CLAMP SCREW KIT
13-14
3AC771511M
POWER TRIM & TILT ASSY
13-39
353613340M
WASHER, 13-34-3
13-12
353632070M
COLLAR
13-25
336069730M
CLAMP
13-13
3R0624730M
SPRING, TILT STOPPER
13-29
3R0Q776012
GAS SHOCK ABSORBER
13-33
3V2600010M
BOLT, 6-35 PRECOATED
13-19
9101030612M
BOLT (10 MULTIPLE)
13-6
9101035630M
BOLT (10 MULTIPLE)
13-35
9301030600M
NUT (10 MULTIPLE)
13-34
9401030600M
WASHER (10 MULTIPLE)
13-47
332621011M
PAD, CLAMP SCREW (THREADED STYLE)
13-51
3C8621070M
SHOULDER BOLT
13-4
9101E35612M
BOLT & WASHER (10 MULTIPLE)
13-26
345069150M
CORD CLAMP A
13-15
1H2315340M
LEAD WIRE BAND-LOCAL PURCHASE NLA *{/*PART IS NO LONGER AVAILABLE*/}*
13-44
369624331M
GRIP
13-3
398623961M
GROUND WIRE
13-16
3KY770710M
CYLINDER PIN (UPPER)
13-18
3R0770760M
BUSHING, 13-17-19.5
13-28
3Y1761450M
TERMINAL CAP
13-48
9453030500M
E-RING (10 MULTIPLE)
13-43
9514033516M
SPRING PIN (10 MULTIPLE)
13-32
346663340M
STOPPER
13-31
3AL663330M
LOCK LEVER GRIP
13-46
3RS772160M
CLAMP SCREW (PTT)
13-11
3ACW772083M
SWIVEL BRACKET
