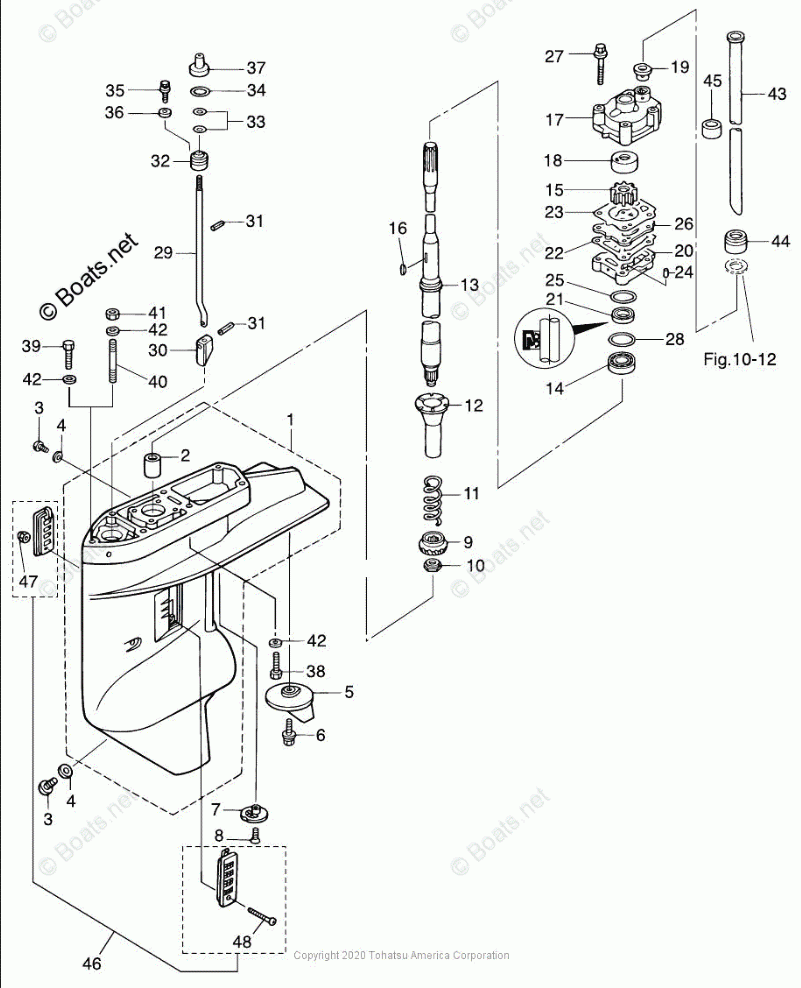

GEAR CASE, DRIVE SHAFT

Tohatsu MFS30C
Tohatsu
#oem кодцена
11A-3
332600052M
OIL PLUG (8 X 1.25)
11A-43
3R0651000M
WATER PIPE S
11A-37
346660370M
HOLDER, CAM ROD
11A-34
3C8660320M
O-RING
11A-9
3NV640200M
BEVEL GEAR B (PINION)
11A-29
3NV660120M
CAM ROD S
11A-29
3NV660130M
CAM ROD L
11A-29
3NV660140M
CAM ROD UL
11A-13
3R0643010M
DRIVE SHAFT S
11A-18
3R0650110M
LINER, PUMP CASE
11A-17
3R0650160M
UPPER PUMP CASE
11A-23
3R0650180M
GASKET, PUMP CASE
11A-43
3R0651100M
WATER PIPE L
11A-11
346643270M
SPRING
11A-43
3R0651200M
WATER PIPE UL
11A-44
3R0652060M
UPPER SEAL RUBBER, WATER PUMP
11A-32
3R0660310M
BUSHING, CAM ROD
11A-39
9161E30845M
BOLT
11A-8
9218E30620M
SCREW (10 MULTIPLE)
11A-31
9514070312M
SPRING PIN (10 MULTIPLE)
11A-45
98AM1201000
RUBBER PIPE
11A-4
332600061M
GASKET (10 MULTIPLE)
11A-40
9153E30830M
STUD BOLT
11A-30
3AC660112M
CLUTCH CAM
11A-1
3AEW600002M
GEARCASE HOUSING
11A-20
346650172M
PUMP CASE LOWER *{/*FITS 25C2, #40911~ AND 30A3, #30720~*/}*
11A-13
346643035M
DRIVE SHAFT UL (OVERALL LENGTH 35")
11A-16
332650220M
IMPELLER KEY
11A-5
3C8602171M
TRIM TAB
11A-33
332660210M
O-RING
11A-25
336624150M
O-RING
11A-14
346602130M
BEARING B, TAPERED ROLLER
11A-28
346640230M
SHIM KIT
11A-12
346643280M
PIPE
11A-21
346650130M
OIL SEAL
11A-22
348650291M
GASKET, PUMP GUIDE PLATE
11A-2
3AE602110M
NEEDLE BEARING
11A-1
3AEQ600002
GEAR CASE
11A-19
3B7650140M
SEAL RUBBER LOWER WATER PIPE
11A-46
3C7602051M
WATER STRAINER (SET OF 2)
11A-6
9101E35620M
BOLT & WASHER (10 MULTIPLE)
11A-13
346643025M
DRIVE SHAFT L (OVERALL LENGTH 30")
11A-27
9101E35652M
BOLT & WASHER
11A-38
9161E30840M
BOLT B (10 MULTIPLE)
11A-48
9215030430M
SCREW (10 MULTIPLE)
11A-41
9301030800M
NUT (10 MULTIPLE)
11A-47
9304030400M
NYLON NUT (10 MULTIPLE)
11A-42
9401030800M
WASHER (10 MULTIPLE)
11A-35
9101E35612M
BOLT & WASHER (10 MULTIPLE)
11A-7
369602060M
SUB WATER STRAINER
11A-24
334650120M
DOWEL PIN,4-10
11A-10
346640271M
NUT, BEVEL GEAR B
11A-36
3R0663080M
WASHER, 6-16-1.5
11A-15
3NV650210M
IMPELLER
