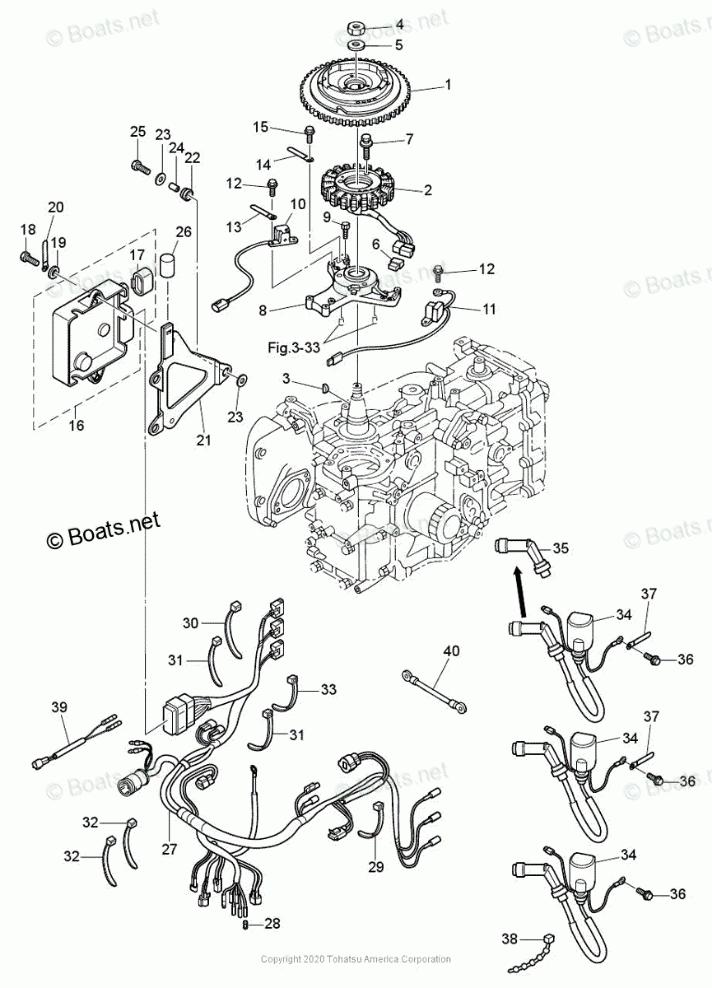

ГЕНЕРАТОР

Tohatsu MFS30C
Tohatsu
#oem кодцена
8-23
3C8663080M
WASHER (10 MULTIPLE)
8-9
3AC068640M
BOLT (10 MULTIPLE)
8-17
3AC031690M
PLUG, ECU
8-8
3AC060080M
COIL BRACKET
8-10
3AC060710M
PULSER COIL #1
8-2
3AC061230M
ALTERNATOR
8-26
3AC061330M
PROTECTOR
8-34
3AC064690M
IGNITION COIL
8-21
3AC102040M
BRACKET, ECU
8-5
353001330M
WASHER, MAGNETO
8-33
3AC760910M
LEAD WIRE BAND-LOCAL PURCHASE NLA *{/*PART IS NO LONGER AVAILABLE*/}*
8-11
3AD060710M
PULSER COIL #2
8-1
3AD061010M
FLYWHEEL ASSY W/RING GEAR (ZF 91)
8-27
3NW102050M
ECU CORD, MF & EF
8-27
3NV102051M
ECU CORD, EP & EPT
8-39
3NV725690M
ADAPTOR PLUG
8-6
3AC010470M
PLUG (ALTERNATOR COUPLER)
8-4
353001320M
NUT, MAGNETO
8-19
3C8663080M
WASHER (10 MULTIPLE)
8-7
3AD068640M
BOLT, 6-25 PRE-COATED
8-24
3H6760791M
COLLAR, 6.2-9-7.4
8-18
9101030616M
BOLT (10 MULTIPLE)
8-25
9101030620M
BOLT (10 MULTIPLE)
8-36
9101E35620M
BOLT & WASHER (10 MULTIPLE)
8-14
398069720M
CLAMP
8-15
9101E35612M
BOLT & WASHER (10 MULTIPLE)
8-13
3PR069720M
CLAMP
8-38
336760910M
BAND
8-37
3PR069720M
CLAMP
8-20
3T4069721M
CLAMP
8-22
3T5069200M
MOUNT RUBBER
8-28
3T5760370M
PLUG ,CABLE TERMINAL
8-12
9101035512M
BOLT
8-35
3AC069990M
PLUG CAP (WITH RESISTANCE)
8-3
334001310M
MAGNETO KEY
8-16
3YP064010M
ECU, F30C
