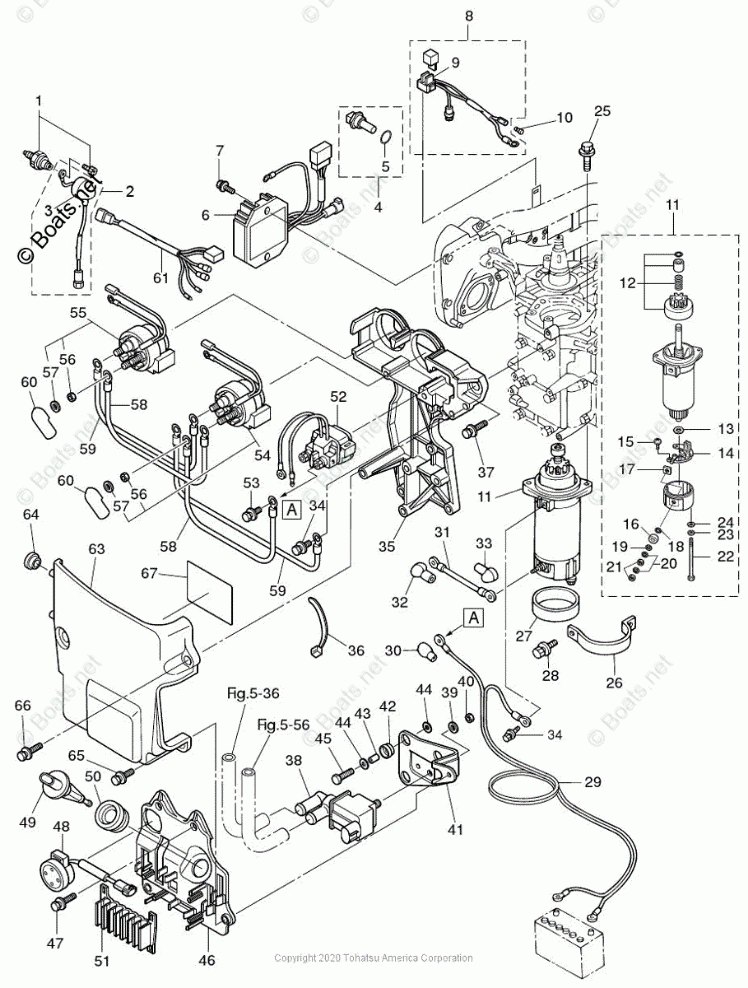

ELECTRIC PARTS Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS30C (2020)

ELECTRIC PARTS

Tohatsu MFS30C

oem код

название

цена

9-55

3AC725810M

PTT SOLENOID SWITCH "B"

9-63

3AC069190M

COVER, ELECTRIC BRACKET

9-17

3GF750170M

BUSHING

9-18

3GF750180M

O-RING

9-22

3GF750190M

BOLT

9-12

3RS760150M

PINION ASSY

9-28

9101035820M

BOLT

9-21

9302030600M

NUT (10 MULTIPLE)

9-24

9402210500M

WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*

9-23

9413210500M

SPRING WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*

9-64

309650320M

GROMMET, WATER TUBE

9-41

3AC025010M

PLATE

9-50

3AC043190M

GROMMET, MAT SENSOR

9-51

3AC061350M

HOLDER

9-35

3AC069010M

ELECTRIC BRACKET

9-38

3AC102110M

ISC VALVE

9-13

3GF750150M

WASHER

9-49

3AC102150M

MAT SENSOR

9-46

3AC620040M

CORD HOLDER

9-67

3AC720280M

WIRING DIAGRAM DECAL

9-61

3AC725690M

PTT EXTENSION CORD

9-54

3AC725800M

PTT SOLENOID SWITCH "A"

9-6

3AC760652M

RECTIFIER (RS21-21) F25/30B

9-8

3AC760660M

FUSE CABLE

9-48

3AC761710M

OVER-HEAT BUZZER

9-58

3C7725830M

CORD B, SOLENOID SWITCH

9-26

3R0760090M

BAND, STARTER MOTOR

9-31

3R3761410M

STARTER CORD

9-4

3Y9725140M

WATER TEMPERATURE SENSOR, D40/50/70/90/115A/F25/30B

9-11

3GF760100M

STARTER MOTOR ASSY, M40/50D/MD40/50B2/MFS9.9/15/20E/MFS25/30B/C

9-1

3H6076111M

SWITCH, OIL PRESSURE

9-16

3GF750160M

BUSHING

9-14

3GF750140M

BRUSH HOLDER ASSY

9-44

3C8663080M

WASHER (10 MULTIPLE)

9-39

9401030600M

WASHER (10 MULTIPLE)

9-5

3G9661360M

O-RING

9-43

3H6760791M

COLLAR, 6.2-9-7.4

9-52

3H8760400M

STARTER SOLENOID

9-45

9101030620M

BOLT (10 MULTIPLE)

9-65

9101E35616M

BOLT & WASHER (10 MULTIPLE)

9-66

9101E35620M

BOLT & WASHER (10 MULTIPLE)

9-47

9101E35620M

BOLT & WASHER (10 MULTIPLE)

9-37

9101E35625M

BOLT & WASHER (10 MULTIPLE)

9-7

9101E35625M

BOLT & WASHER (10 MULTIPLE)

9-15

9215216408M

SCREW (10 MULTIPLE)

9-56

9301030600M

NUT (10 MULTIPLE)

9-40

9301030600M

NUT (10 MULTIPLE)

9-19

9401030600M

WASHER (10 MULTIPLE)

9-20

9413030600M

SPRING WASHER (10 MULTIPLE)

9-27

3C8760070M

RUBBER, STARTER MOTOR

9-57

9413030600M

SPRING WASHER (10 MULTIPLE)

9-34

9101E35612M

BOLT & WASHER (10 MULTIPLE)

9-30

3AA761450M

TERMINAL CAP

9-29

3AC761200M

BATTERY CABLE L=2500

9-59

3C8725831M

CABLE ASSY B

9-3

3KY076120M

GROMMET

9-42

3T5069200M

MOUNT RUBBER

9-10

3T5760370M

PLUG ,CABLE TERMINAL

9-9

3T5762470M

FUSE, 20A

9-33

3Y0761450M

TERMINAL CAP

9-32

3Y1761450M

TERMINAL CAP

9-60

3Y1761450M

TERMINAL CAP

9-25

9101035830M

BOLT

9-53

9101E35610M

BOLT & WASHER (10 MULTIPLE)

9-2

3AC076141M

LEAD CABLE, PRESSURE SWITCH
