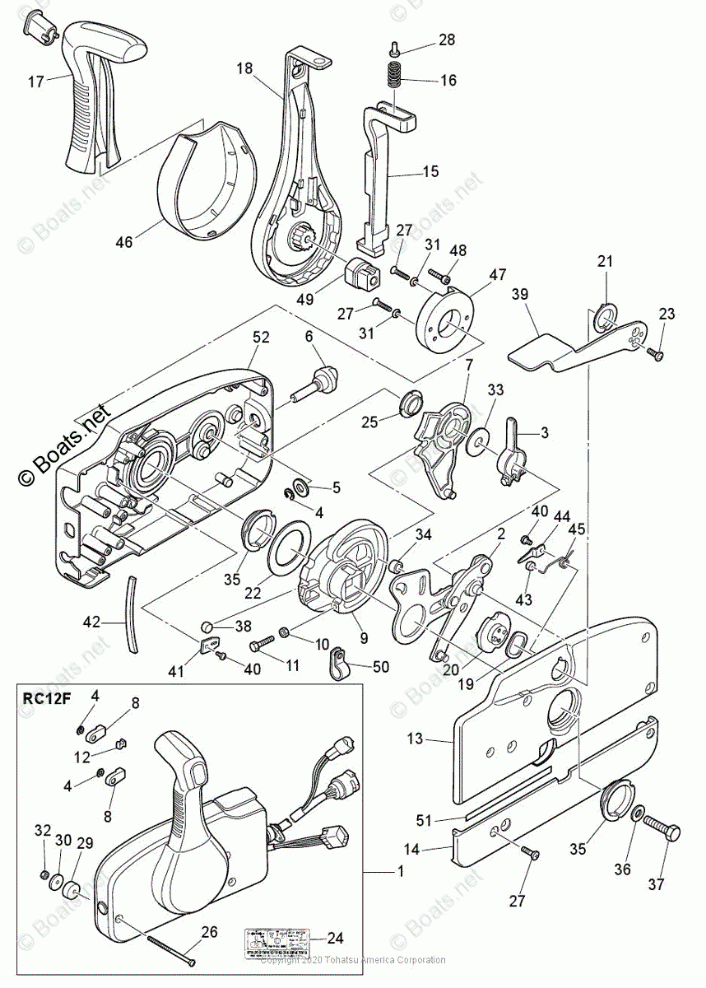

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS60A
Tohatsu
#oem кодцена
21-10
9301030500M
NUT (10 MULTIPLE)
21-28
3VL843750M
SCREW
21-4
9453030600M
E-RING (10 MULTIPLE)
21-1
3U2B845000
RC BOX, RC12F, ALL TLDI/MFS40/50A 2018
21-50
3U2069730M
CLAMP
21-46
3U2631070M
COVER
21-47
3U2635060M
HOLDER
21-15
3U2844010M
NEUTRAL LOCK ARM
21-37
3U2844420M
BOLT
21-39
3U2B843120
FREE THROTTLE LEVER
21-52
3U2B844400
FRONT HOUSING
21-27
3VK843750M
SCREW (10 MULTIPLE )
21-51
3U2721870M
CAUTION DECAL
21-40
9215030406M
SCREW (10 MULTIPLE)
21-49
3U2773670M
JOINT
21-18
3U2843430M
CONTROL LEVER
21-31
3U2843710M
WASHER (10 MULTIPLE)
21-26
3U2843750M
SCREW
21-17
3U2844040M
GRIP
21-6
3U2844270M
ADJUSTING SCREW
21-35
3U2844310M
BUSHING
21-48
3U2849170M
BOLT
21-14
3U2B843660
REAR PANEL
21-13
3U2B844410
REAR HOUSING
21-23
9216030512M
SCREW (10 MULTIPLE)
21-11
9101030525M
BOLT (10 MULTIPLE)
21-32
9301030600M
NUT (10 MULTIPLE)
21-12
3A3843760M
GROMMET
21-36
9401030800M
WASHER (10 MULTIPLE)
21-30
353843710M
WASHER
21-38
353843880M
ROLLER, THROTTLE DRUM
21-5
353843940M
WASHER
21-8
3A3833142M
TERMINAL EYE
21-42
3A3843070M
SPRING
21-9
3A3843642M
DRIVE GEAR
21-2
3A3843651M
THROTTLE ARM
21-19
3A3843680M
WAVE WASHER
21-29
3A3843740M
SPACER
21-7
3A3843810M
SHIFT GEAR ASSY
21-21
3A3844350M
BUSHING
21-33
3A3843830M
WASHER (10 MULTIPLE)
21-20
3A3843910M
DRUM, FREE ACCELERATOR
21-16
3A3844030M
SPRING
21-34
3A3844210M
ROLLER
21-22
3A3844220M
THRUST PLATE
21-41
3A3844230M
RETAINER
21-43
3A3844240M
ROLLER, FREE ACCELERATOR
21-45
3A3844250M
SPRING, FREE ACCELERATOR
21-44
3A3844260M
RETAINER
21-3
3A3844280M
ARM
21-25
3A3844320M
BUSHING B
21-24
3VK843390M
INSTRUCTION DECAL
