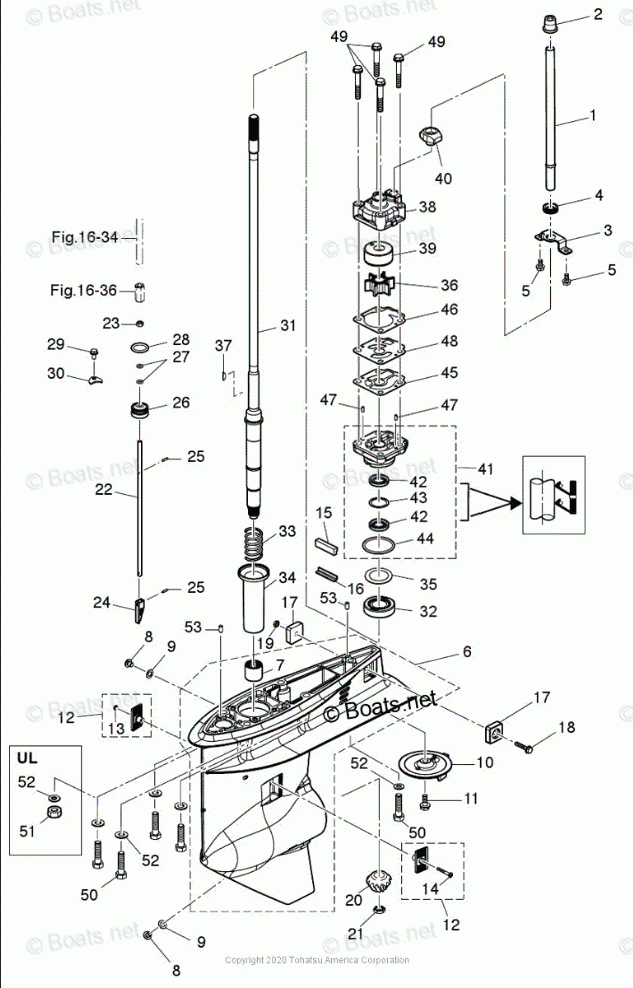

GEAR CASE, DRIVE SHAFT

Tohatsu MFS60A
Tohatsu
#oem кодцена
11-8
332600052M
OIL PLUG (8 X 1.25)
11-41
3KY650021M
PUMP CASE ASSY (LOWER)
11-50
3KY600010M
BOLT 10-40 P1.25
11-15
3KY600410M
WATER SEAL RUBBER
11-16
3KY600420M
WATER SEAL PLATE
11-12
3KY602050M
WATER STRAINER SET
11-7
3KY602110M
ROLLER BEARING 1416
11-32
3KY602150M
TAPERED ROLLER BEARING 30205XR
11-20
3KY640200M
BEVEL GEAR B
11-31
3KY643010M
DRIVE SHAFT (S)
11-31
3KY643020M
DRIVE SHAFT (L)
11-31
3KY643030M
DRIVE SHAFT (UL)
11-33
3KY643270M
DRIVE SHAFT SPRING
11-34
3KY643280M
DRIVE SHAFT SPRING GUIDE
11-1
3KY651000M
WATER PIPE (S)
11-43
3C8640840M
SHIM
11-1
3KY651100M
WATER PIPE (L)
11-1
3KY651200M
WATER PIPE (UL)
11-3
3KY652030M
LOCK PLATE
11-4
3KY652040M
WATER PIPE AUXILIARY MOUNT
11-2
3KY652060M
WATER PIPE SEAL (UPPER)
11-22
3KY660130M
CAM ROD (L)
11-22
3KY660140M
CAM ROD (UL)
11-10
3KZ602170M
TRIM TAB
11-39
3T5650110M
LINER, PUMP CASE
11-49
9101E35855M
BOLT
11-9
332600061M
GASKET (10 MULTIPLE)
11-45
3C8650293M
GASKET
11-40
3C8650140M
RUBBER SEAL
11-21
3C8640270M
NUT BEVEL GEAR
11-37
332650220M
IMPELLER KEY
11-23
9301030600M
NUT (10 MULTIPLE)
11-27
332660210M
O-RING
11-35
345640230M
SHIM KIT
11-44
345650150M
O-RING
11-42
3C8602230M
OIL SEAL
11-36
3C8650212M
IMPELLER (40D/F40A/50D/F50A)
11-48
3C8650250M
GUIDE PLATE
11-6
3KYQ600001
GEAR CASE ASSY
11-6
3KYW600001
GEAR CASE ASSY (WHITE)
11-38
3T5650160M
UPPER PUMP CASE *{/*MUST USE WITH 3T5873223M W/P KIT OR 3T5 PARTS*/}*
11-46
3T5650182M
GASKET, PUMP CASE
11-18
9101E35625M
BOLT & WASHER (10 MULTIPLE)
11-14
9215030430M
SCREW (10 MULTIPLE)
11-13
9304030400M
NYLON NUT (10 MULTIPLE)
11-51
3B7611140M
NUT
11-52
9402E31000M
WASHER (10 MULTIPLE)
11-53
3AB011110M
DOWEL PIN, 6-12
11-5
9101E35612M
BOLT & WASHER (10 MULTIPLE)
11-29
9101E35612M
BOLT & WASHER (10 MULTIPLE)
11-19
9304030600M
NYLON NUT
11-47
334650120M
DOWEL PIN,4-10
11-17
3KY602180M
ANODE
11-11
9101035820M
BOLT
11-28
3C8660320M
O-RING
11-26
3R0660310M
BUSHING, CAM ROD
11-25
9514070312M
SPRING PIN (10 MULTIPLE)
11-30
353660240M
STOPPER
11-24
3AC660112M
CLUTCH CAM
