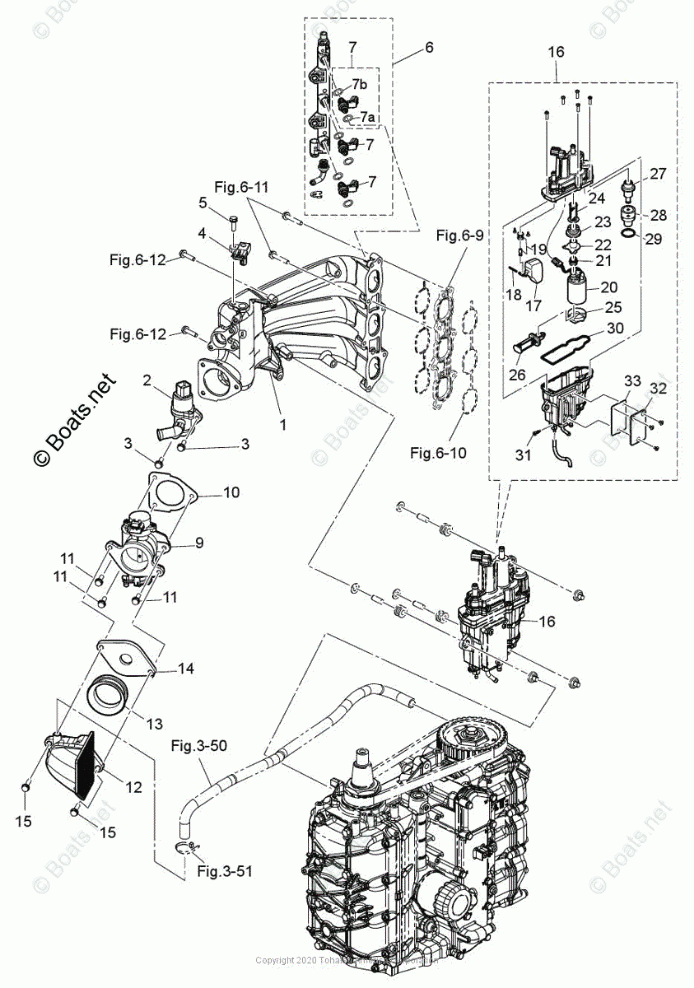

ВПУСКНОЙ КОЛЛЕКТОР

Tohatsu MFS60A
Tohatsu
#oem кодцена
5-11
9101E35620M
BOLT & WASHER (10 MULTIPLE)
5-22
3KY043250M
JOINT
5-7A
3KY103040M
O RING FUEL INJECTOR MFS40-60A
5-7B
3KY103030M
O RING FUEL INJECTOR MFS40-60A
5-1
3UR020100M
INTAKE MANIFOLD ASSY MFS60A
5-9
3UR101000M
THROTTLE BODY ASSY MFS60A
5-7
3KY103000M
FUEL INJECTOR ASSY
5-4
3KY102140M
T/MAP SENSOR
5-2
3KY102110M
ISC VALVE
5-6
3KY102000M
FUEL RAIL ASSY
5-33
3KY101800M
SEAL
5-32
3KY101790M
COVER
5-28
3KY101570M
HOLDER
5-27
3KY101540M
FUEL REGULATOR
5-10
3KY101040M
GASKET
5-29
3KY100950M
O-RING
5-26
3KY043220M
FILTER (INLET)
5-3
9101E35620M
BOLT & WASHER (10 MULTIPLE)
5-30
3KY032350M
O-RING
5-5
9101E35620M
BOLT & WASHER (10 MULTIPLE)
5-15
9101E35625M
BOLT & WASHER (10 MULTIPLE)
5-12
3KY024090M
INTAKE SILENCER ASSY
5-13
3KY024180M
GASKET
5-17
3KY032300M
FLOAT
5-18
3KY032320M
FLOAT ARM PIN
5-19
3KY032390M
FLOAT VALVE ASSY
5-24
3KY043210M
FILTER (OUTLET)
5-31
3KY032920M
DRAIN SCREW
5-14
3KY035360M
RESTRICTOR (MFS40A)
5-20
3KY043020M
FUEL FEED PUMP
5-23
3KY043130M
GROMMET
5-25
3KY043140M
GROMMET
5-21
3KY043191M
GROMMET
5-16
3KY101501M
VAPOR SEPARATOR ASSY
