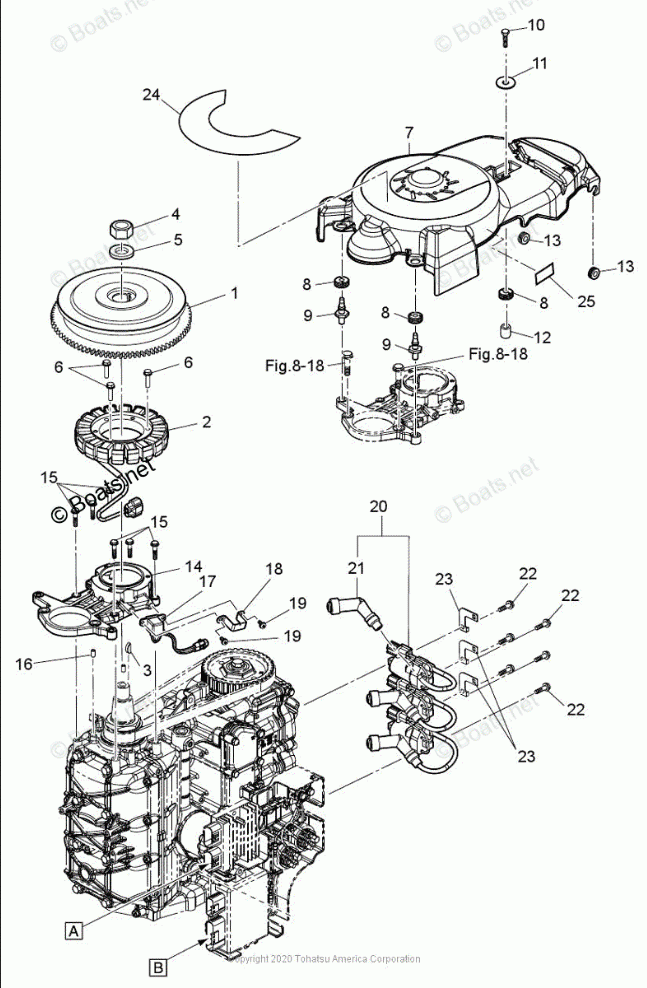

Tohatsu MFS60A

ГЕНЕРАТОР

#

oem код

название

цена

7-12

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

7-5

WASHER, 20.5-37-5

WASHER, 20.5-37-5

7-8

GROMMET, 16-2.5

GROMMET, 16-2.5

7-23

STAY

STAY

7-25

FUSE DECAL

FUSE DECAL

7-24

CAUTION DECAL

CAUTION DECAL

7-7

RING GEAR COVER

RING GEAR COVER

7-1

FLYWHEEL W. GEAR

FLYWHEEL W. GEAR

7-2

ALTERNATOR ASSY

ALTERNATOR ASSY

7-17

PULSAR COIL

PULSAR COIL

7-18

PULSAR COIL GUARD

PULSAR COIL GUARD

7-14

COIL BRACKET

COIL BRACKET

7-4

NUT, 20P1.25

NUT, 20P1.25

7-10

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-9

RING GEAR COVER HOOK

RING GEAR COVER HOOK

7-3

MAGNETO KEY

MAGNETO KEY

7-11

WASHER, 6-16-1.5

WASHER, 6-16-1.5

7-21

PLUG CAP (WITH RESISTANCE)

PLUG CAP (WITH RESISTANCE)

7-19

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

7-16

DOWEL PIN 6-12

DOWEL PIN 6-12

7-13

GROMMET

GROMMET

7-15

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-6

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-22

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-20

IGNITION COIL W/R-CAP MFS60A

IGNITION COIL W/R-CAP MFS60A
