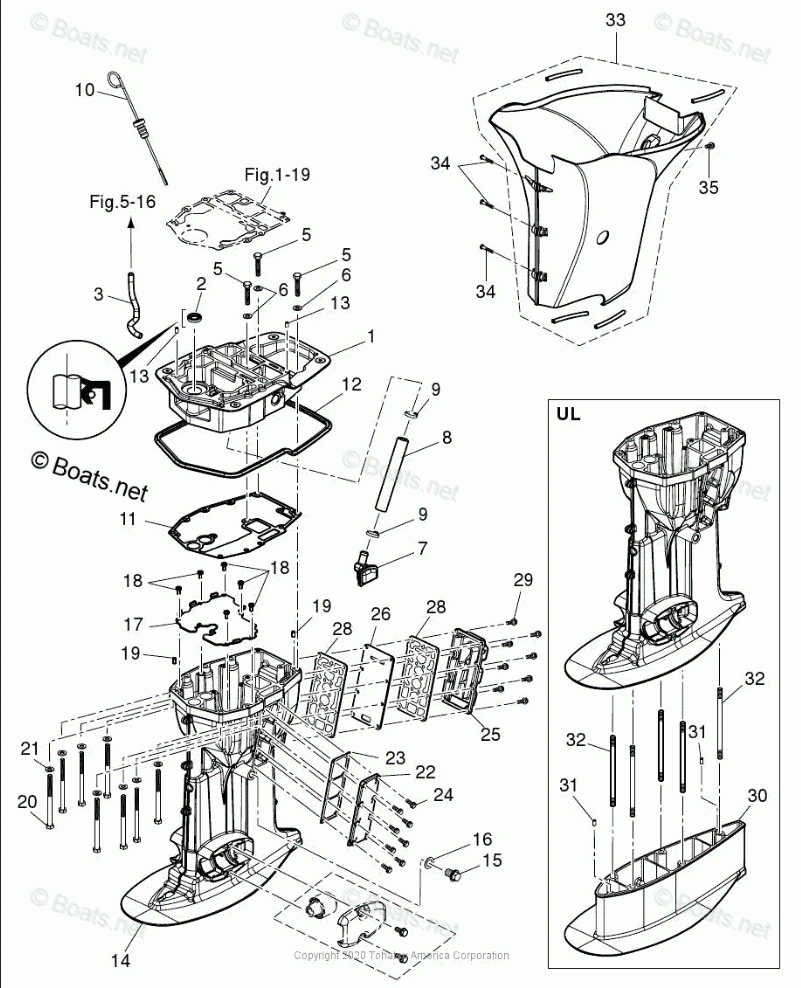

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS60A
Tohatsu
#oem кодцена
10-2
346012150M
OIL SEAL, DRIVE SHAFT
10-11
3KY610120M
DRIVE SHAFT HOUSING GASKET
10-15
3R3077051M
DRAIN BOLT (14mm-1.50 pitch)
10-18
9215030510M
SCREW (10 MULTIPLE)
10-7
3KY077100M
OIL STRAINER ASSY
10-8
3KY077150M
PIPE L=150MM
10-10
3KY077210M
OIL LEVEL GAUGE
10-17
3KY077400M
GUIDE PLATE
10-23
3KY610290M
GASKET
10-34
3F3024230M
TAPPING SCREW 5-30
10-32
3KY611110M
STUD 10-145 P1.25
10-28
3KY612200M
IDLE EXHAUST PORT GASKET (OUTSIDE)
10-26
3KY621140M
PLATE
10-3
3KY652100M
COOLING HOSE 185-30
10-12
3KY671160M
ENGINE BASE SEAL
10-5
3LD010120M
CYLINDER HEAD BOLT
10-20
3B7610182M
BOLT 8-115
10-16
3R3074060M
WASHER (10 MULTIPLE)
10-31
3AB011110M
DOWEL PIN, 6-12
10-1
3KYQ013000
ENGINE BASE ASSY
10-25
3KYW612080
IDLE EXHAUST PORT (WHITE)
10-14
3KYQ610200
DRIVE SHAFT HOUSING ASSY (S)
10-22
3KYQ610280
COVER
10-14
3KYQ610301
DRIVE SHAFT HOUSING ASSY (L)
10-30
3KYQ611100
EXTENSION HOUSING (UL)
10-25
3KYQ612080
IDLE EXHAUST PORT COVER
10-33
3KYQ612250
APRON (L & UL)
10-22
3KYW610280
COVER (WHITE)
10-33
3KYW612250
APRON ASSY (L & UL) - (WHITE)
10-13
345011110M
DOWEL PIN 6-12
10-33
3KZQ612250
APRON (S)
10-35
9101E35616M
BOLT & WASHER (10 MULTIPLE)
10-24
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-29
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-21
9401030800M
WASHER (10 MULTIPLE)
10-6
9401030800M
WASHER (10 MULTIPLE)
10-19
345011110M
DOWEL PIN 6-12
10-14
3KYW610301
DRIVE SHAFT HSG ASSY, L (WHITE)
