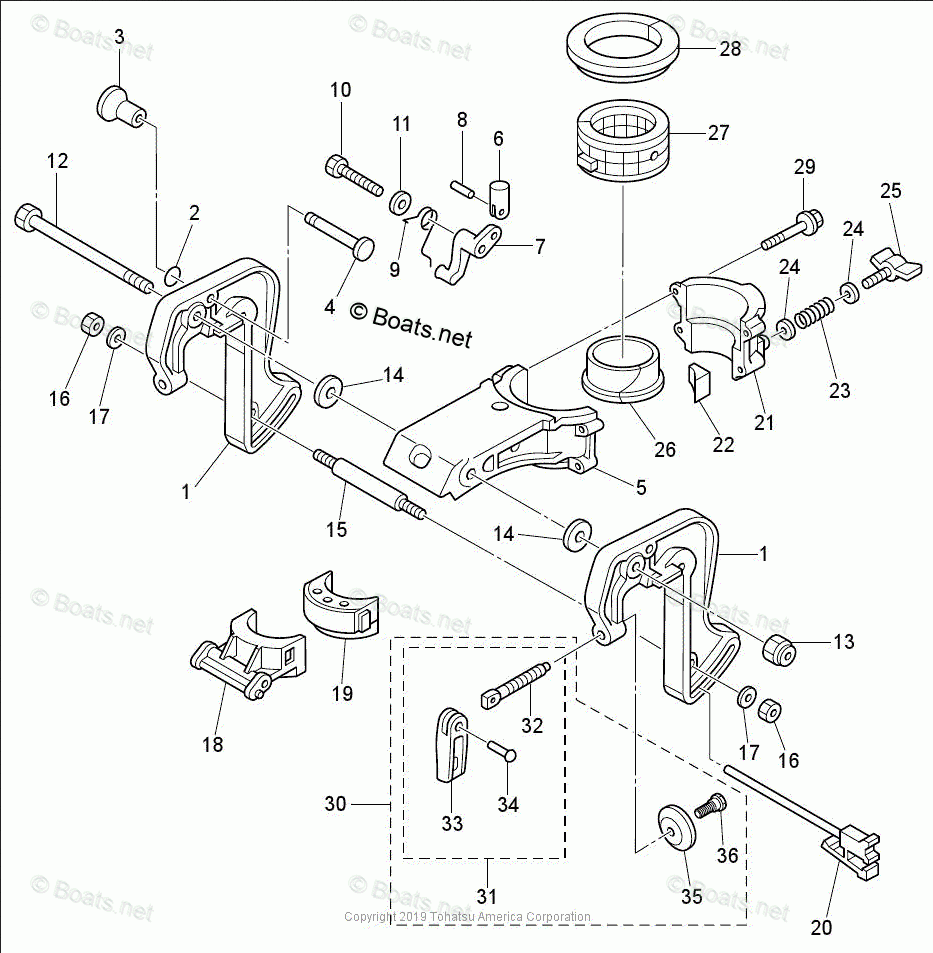

CLAMP BRACKET/SWIVEL BRACKET

Tohatsu MFS2.5C
Tohatsu
#oem кодцена
11-12
309621152M
BOLT
11-20
3F0621600M
THRUST ROD, CLIP TYPE *{/*will not work with older flat bottom stern bracket-will only work with newer s/s bracket*/}*
11-26
3AB623211M
PIVOT BUSHING (BLACK)
11-4
3AB624640M
TILT STOPPER
11-7
3AB630680M
LEVER
11-9
3AB663360M
SPRING
11-34
3C8621042M
RIVET
11-36
3C8621070M
SHOULDER BOLT
11-28
3H6623250M
THRUST BUSHING
11-19
3AB613361M
DAMPER (LOWER)
11-10
9161E30650M
BOLT
11-11
9401E30600M
WASHER (10 MULTIPLE)
11-17
9401E30600M
WASHER (10 MULTIPLE)
11-24
9401E30600M
WASHER (10 MULTIPLE)
11-8
9514030212M
ROLL PIN (10 MULTIPLE)
11-6
3AB663341M
STOPPER NLA *{/*PART IS NO LONGER AVAILABLE*/}*
11-18
3AB622120M
THRUST SUPPORTER
11-27
393624161M
BUSHING UPPER
11-23
309624461M
SPRING, STEER. ADJUST SCREW
11-29
3V2600010M
BOLT, 6-35 PRECOATED
11-33
3ABQ621020
CLAMP SCREW HANDLE (AMB)
11-1
3ABQ621112
CLAMP BRACKET (SEE NOTE) *{/*MUST USE 3AB624640M TILT STOPPER*/}*
11-5
3ABQ623911
SWIVEL BRACKET "A"
11-21
3ABQ623921
SWIVEL BRACKET "B"
11-31
3GTQ621051
CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C
11-30
3GTQ621051
CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C
11-16
9301030600M
NUT (10 MULTIPLE)
11-32
369621061M
CLAMP SCREW (THREADED STYLE)
11-13
9304030800M
NYLON NUT (10 MULTIPLE)
11-2
301660230M
O-RING
11-14
307621161M
WASHER
11-15
309621171M
DISTANCE PIECE
11-22
309624412M
FRICTION PLATE
11-3
309624630M
KNOB, T/STOPPER
11-35
332621011M
PAD, CLAMP SCREW (THREADED STYLE)
11-25
3GT624420M
FRICTION KNOB
