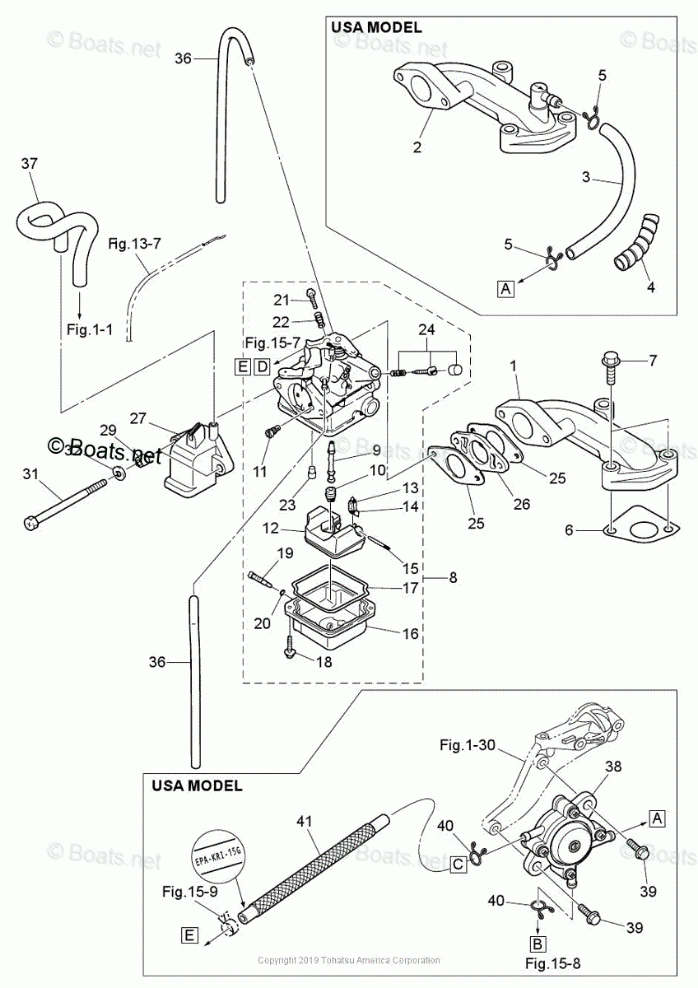

INTAKE MANIFOLD & CARBURETOR

Tohatsu MFS2.5B
Tohatsu
#oem кодцена
4-1
3BRB020911
INTAKE MANIFOLD
4-20
3H6032930M
O-RING, DRAIN SCREW
4-17
3H6032220M
O-RING, FLOAT CHAMBER
4-15
3H6032320M
ARM PIN, FLOAT
4-13
3H6032400M
FLOAT VALVE
4-14
3H6032440M
CLIP
4-22
3H6032670M
SPRING, STOP SCREW
4-19
3H6032920M
DRAIN SCREW
4-26
3H6039521M
INSULATOR
4-23
3GT032560M
RUBBER CAP
4-4
3V1761480M
SPIRAL TUBE PROTECTOR
4-31
9161F10685M
BOLT (10 MULTIPLE)
4-18
9225036412M
SCREW
4-10
3AU044680M
MAIN JET #68, F3.5A/B/6B
4-11
3GU049300M
SLOW JET #130, HIGH ALT. (~9840 FT.)
4-9
3R4032520M
MAIN NOZZLE
4-38
3GT040000M
FUEL PUMP, F2B/2.5B/3.5B
4-12
3GT032310M
FLOAT, F3.5B/2.5B/2B
4-2
3GTB020101
INTAKE MANIFOLD ASSY
4-3
98AB701000M
FUEL PIPE 7MM (5/16") (1 EA.=1 METER)
4-25
3H6020110M
GASKET, CARBURETOR
4-29
3H6760791M
COLLAR, 6.2-9-7.4
4-7
9101E30630M
BOLT (10 MULTIPLE)
4-39
9101E35620M
BOLT & WASHER (10 MULTIPLE)
4-32
9401030600M
WASHER (10 MULTIPLE)
4-36
98AB301000M
FUEL PIPE 3MM 1/8" (1 EA.=1 METER)
4-40
338022150M
CLIP, FUEL PIPE
4-16
3GT032210M
FLOAT CHAMBER
4-6
3AB021040M
INTAKE MANIFOLD GASKET
4-21
3AB032650M
STOP SCREW
4-37
3AB074350M
BREATHER HOSE
4-24
3AS032660M
PILOT SCREW SET
4-5
3C7022150M
CLIP
4-27
3GR024090M
AIR SILENCER
4-41
3GT021610M
FUEL HOSE W/PROTECTOR L=390mm
4-8
3WD032000M
CARBURETOR ASSY, F2.5A/B
