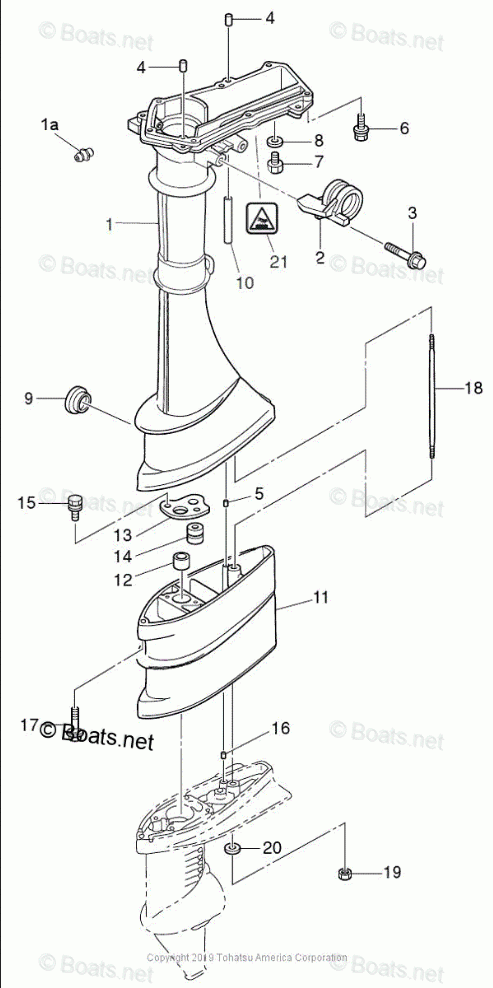

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS2.5B
Tohatsu
#oem кодцена
8-11
3ABQ611000
EXTENSION HOUSING "L", F2.5AB/3.5AB
8-13
3AB643320M
DRIVE SHAFT BUSHING STOPPER
8-8
332600061M
GASKET (10 MULTIPLE)
8-1A
344671771M
GREASE NIPPLE
8-20
9401E30600M
WASHER (10 MULTIPLE)
8-3
9101E35835M
BOLT & WASHER
8-15
9101E35612M
BOLT & WASHER (10 MULTIPLE)
8-17
3GU600010M
BOLT, 6-30 PRECOATED
8-21
3GR761910M
HIGH TEMP CAUTION DECAL
8-18
3F0611011M
STUD BOLT
8-12
3AB600030M
DRIVE SHAFT BUSHING
8-2
3ABQ620011
STEERING BRACKET
8-5
3AB011110M
DOWEL PIN, 6-12
8-16
3AB011110M
DOWEL PIN, 6-12
8-9
369610160M
GROMMET
8-4
345011110M
DOWEL PIN 6-12
8-14
172360080M
GROMMET
8-10
98AB301000M
FUEL PIPE 3MM 1/8" (1 EA.=1 METER)
8-19
9301030600M
NUT (10 MULTIPLE)
8-7
9106E30808M
WATER PLUG
8-6
9101035630M
BOLT (10 MULTIPLE)
8-1
3ABQ610204
DRIVE SHAFT HOUSING "S", F2.5AB/3.5AB
