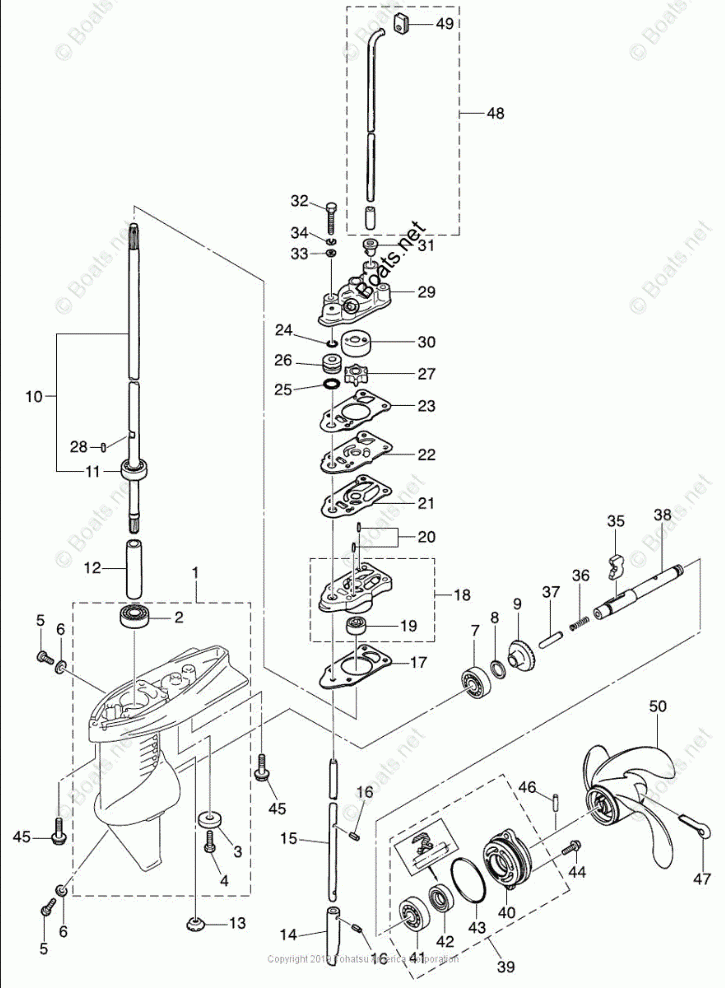

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS3.5C
Tohatsu
#oem кодцена
10-50
309641060M
PROP 3 BLADE RESIN (7.4 DIA. X 5.7 PITCH)
10-26
3F0660310M
BUSHING, CAM ROD
10-12
3F0643210M
SPACER
10-30
3F0650110M
LINER,WP-3.5B
10-29
3F0650160M
CASE, WATERPUMP-3.5B
10-23
3F0650180M
GASKET, WATER PUMP-3.5B
10-17
3F0650200M
GASKET, WATER PUMP-3.5B
10-21
3F0650290M
GASKET, GUIDE PLATE
10-31
3F0650320M
GROMMET LOWER, WATER TUBE
10-14
3F0660110M
CLUTCH CAM
10-15
3F0660120M
CAM ROD S
10-15
3F0660130M
CAM ROD L
10-9
3GR640100M
BEVEL GEAR (A)
10-37
3F0642230M
PUSH ROD, CLUTCH
10-13
3GR640200M
BEVEL GEAR (B) *{/* IF REPLACING 369640202M SEE BULLETIN 17-020US*/}*
10-45
3GU600010M
BOLT, 6-30 PRECOATED
10-18
3H2650401M
PUMP CASE ASSY (LOWER)
10-32
9161E30645M
BOLT
10-16
9514070308M
SPRING PIN (10 MULTIPLE)
10-47
9515030435M
SPLIT PIN (10 MULTIPLE)
10-11
960106000M
BEARING
10-2
960106000M
BEARING
10-41
960106001M
BEARING
10-7
960106004M
BEARING
10-6
332600061M
GASKET (10 MULTIPLE)
10-36
3F0642210M
SPRING, CLUTCH
10-46
309641261M
SHEAR PIN-PACKAGE OF 5-(5/32" X 1" : 4mm X 24mm)
10-40
3F0Q601011
PROP SHAFT HOUSING
10-5
332600052M
OIL PLUG (8 X 1.25)
10-3
338602182M
ANODE
10-43
345650150M
O-RING
10-8
369640120M
SHIM KIT
10-27
369650211M
IMPELLER NS3.5B/NS5B/4-6HP 4STR
10-28
369650220M
KEY
10-24
369660211M
O-RING A
10-20
3B2650220M
KEY
10-1
3BMQ600002
GEAR CASE, F2.5AB/3.5AB
10-50
3F0641010M
PROP 3 BLADE RESIN (7.4 DIA. x 7 PITCH) PLASTIC
10-50
3F0B645120
PROPELLER 6 P ALUM-2.5A/3.5A/3.5B
10-39
3F0Q873231
PROP SHAFT HOUSING ASSY
10-35
3F0642150M
CLUTCH-3.5B
10-4
9101030616M
BOLT (10 MULTIPLE)
10-44
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-33
9401030600M
WASHER (10 MULTIPLE)
10-34
9413030600M
SPRING WASHER (10 MULTIPLE)
10-25
301660230M
O-RING
10-42
309601110M
OIL SEAL
10-22
3AB650250M
WATER PUMP GUIDE PLATE
10-49
3AB650310M
GROMMET, WATER PIPE (UPPER)
10-48
3AB651910M
WATER PIPE "S", F2/3.5A
10-48
3AB651920M
WATER PIPE "L", F2.5A/3.5A
10-19
3F0602230M
OIL SEAL
10-38
3F0642110M
PROPELLER SHAFT-3.5B
10-50
314641030M
PROP 2.5 HP (7.4 DIA. X 4.5 PITCH)-PLASTIC
