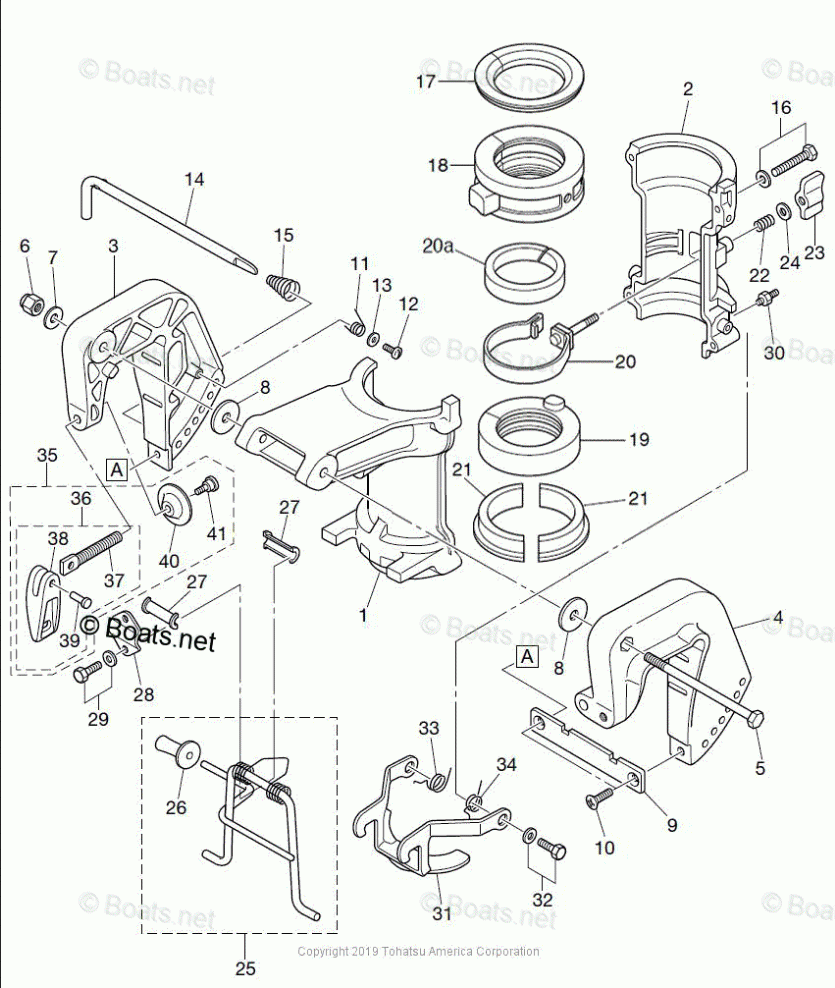

BRACKET & REVERSE LOCK

Tohatsu MFS6C
Tohatsu
#oem кодцена
9-5
309621152M
BOLT
9-9
3B2621180M
DISTANCE PLATE, BRACKET
9-29
9101E35612M
BOLT & WASHER (10 MULTIPLE)
9-30
344671771M
GREASE NIPPLE
9-11
369621461M
SPRING, STERN BRACKET
9-13
369621470M
WASHER (10 MULTIPLE)
9-28
369624391M
SET PLATE
9-33
369663380M
SPRING R
9-34
369663390M
SPRING L
9-20A
3GR624170M
BUSHING
9-41
3C8621070M
SHOULDER BOLT
9-20
3GR624180M
FRICTION BAND ASSY *{/*WHEN REPLACING 3H9624181M use 3GR624170M and 3GR624180M*/}*
9-25
3GR624310M
TILT STOPPER ASSY
9-18
3H6613010M
BUSHING, UPPER STEERING
9-19
3H6624171M
BUSHING, LOWER STEERING-NOT SAME AS 3H6624170M
9-21
3H6624240M
THRUST PLATE B
9-31
3H6663130M
REVERSE LOCK ARM
9-23
3H9624420M
WING NUT M6
9-22
3H9624460M
SPRING, CO-PILOT
9-17
3H6623250M
THRUST BUSHING
9-39
3C8621042M
RIVET
9-14
350621212M
THRUST ROD
9-35
3GTQ621051
CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C
9-15
369621222M
SPRING
9-3
369Q621123
CLAMP BRACKET, RIGHT (AMB)
9-4
369Q621132
CLAMP BRACKET, LEFT (AMB)
9-27
393624371M
BUSHING
9-38
3ABQ621020
CLAMP SCREW HANDLE (AMB)
9-26
3AS624330M
GRIP, TILT STOPPER
9-24
3C8663080M
WASHER (10 MULTIPLE)
9-36
3GTQ621051
CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C
9-1
3H6Q623910
SWIVEL BRACKET A (AMB)
9-37
369621061M
CLAMP SCREW (THREADED STYLE)
9-2
3H6Q623921
SWIVEL BRACKET B (AMB)
9-32
9101035614M
BOLT (10 MULTIPLE)
9-16
9101E35640M
BOLT & WASHER (10 MULTIPLE)
9-12
9217030406M
SCREW (10 MULTIPLE)
9-6
9304030800M
NYLON NUT (10 MULTIPLE)
9-7
9401030800M
WASHER (10 MULTIPLE)
9-8
307621161M
WASHER
9-40
332621011M
PAD, CLAMP SCREW (THREADED STYLE)
9-10
9216030612M
SCREW (10 MULTIPLE)
