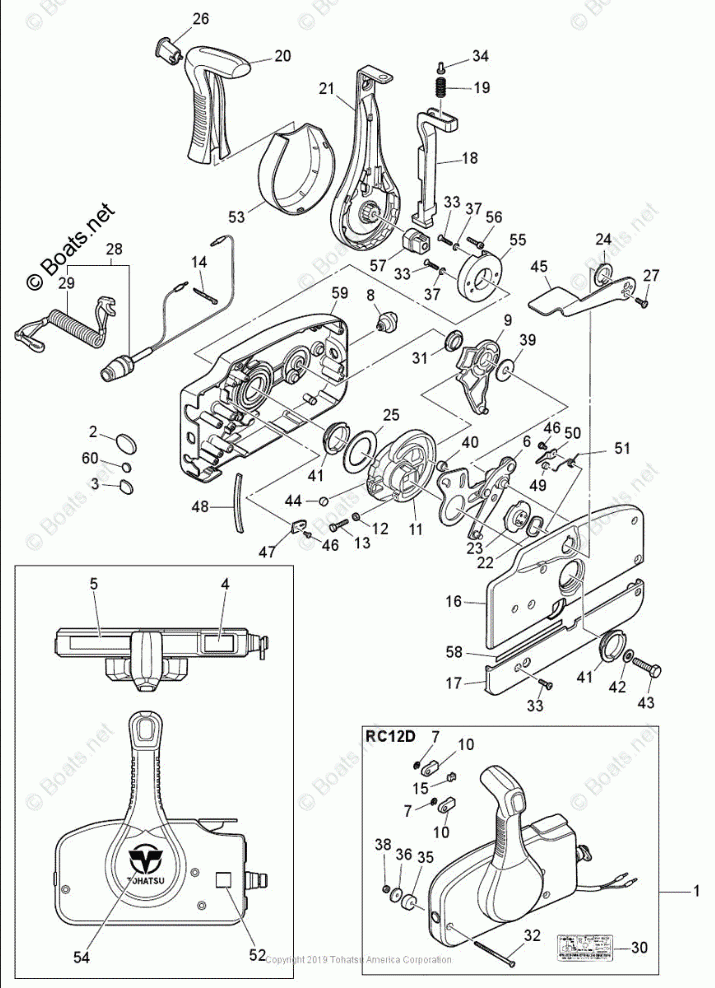

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS6C
Tohatsu
#oem кодцена
15-29
353068210M
SAFETY LANYARD & LOCK
15-34
3VL843750M
SCREW
15-7
9453030600M
E-RING (10 MULTIPLE)
15-55
3U2635060M
HOLDER
15-5
3U2843360M
SHIFT POSITION DECAL
15-30
3U2843390M
INSTRUCTION DECAL
15-18
3U2844010M
NEUTRAL LOCK ARM
15-43
3U2844420M
BOLT
15-26
3U2844520M
TILT SWITCH PLUG
15-45
3U2B843120
FREE THROTTLE LEVER
15-59
3U2B844400
FRONT HOUSING
15-53
3VK631070M
COVER
15-33
3VK843750M
SCREW (10 MULTIPLE )
15-58
3U2721870M
CAUTION DECAL
15-46
9215030406M
SCREW (10 MULTIPLE)
15-52
3U2722000M
STOP SWITCH DECAL
15-57
3U2773670M
JOINT
15-4
3U2843310M
DECAL (LEVER)
15-54
3U2843340M
R C LOGO DECAL
15-21
3U2843430M
CONTROL LEVER
15-37
3U2843710M
WASHER (10 MULTIPLE)
15-32
3U2843750M
SCREW
15-14
3U2843980M
BAND
15-20
3U2844040M
GRIP
15-41
3U2844310M
BUSHING
15-56
3U2849170M
BOLT
15-17
3U2B843660
REAR PANEL
15-27
9216030512M
SCREW (10 MULTIPLE)
15-13
9101030525M
BOLT (10 MULTIPLE)
15-12
9301030500M
NUT (10 MULTIPLE)
15-35
3A3843740M
SPACER
15-38
9301030600M
NUT (10 MULTIPLE)
15-42
9401030800M
WASHER (10 MULTIPLE)
15-3
353843210M
GROMMET-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*
15-36
353843710M
WASHER
15-44
353843880M
ROLLER, THROTTLE DRUM
15-60
369844180M
GROMMET E
15-28
3A3068300M
STOP SWITCH ASSY W/LANYARD *{/*FOR BINNACLE SWITCH W/FLAT PLUG USE 3Y9068300M*/}*
15-10
3A3833142M
TERMINAL EYE
15-48
3A3843070M
SPRING
15-11
3A3843642M
DRIVE GEAR
15-6
3A3843651M
THROTTLE ARM
15-22
3A3843680M
WAVE WASHER
15-15
3A3843760M
GROMMET
15-1
3U2B843600
RC BOX, RC12D (MFS4B~30C),W/O ELECT START(2018)
15-9
3A3843810M
SHIFT GEAR ASSY
15-39
3A3843830M
WASHER (10 MULTIPLE)
15-23
3A3843910M
DRUM, FREE ACCELERATOR
15-19
3A3844030M
SPRING
15-40
3A3844210M
ROLLER
15-25
3A3844220M
THRUST PLATE
15-47
3A3844230M
RETAINER
15-49
3A3844240M
ROLLER, FREE ACCELERATOR
15-51
3A3844250M
SPRING, FREE ACCELERATOR
15-50
3A3844260M
RETAINER
15-31
3A3844320M
BUSHING B
15-24
3A3844350M
BUSHING
15-16
3U2B844410
REAR HOUSING
