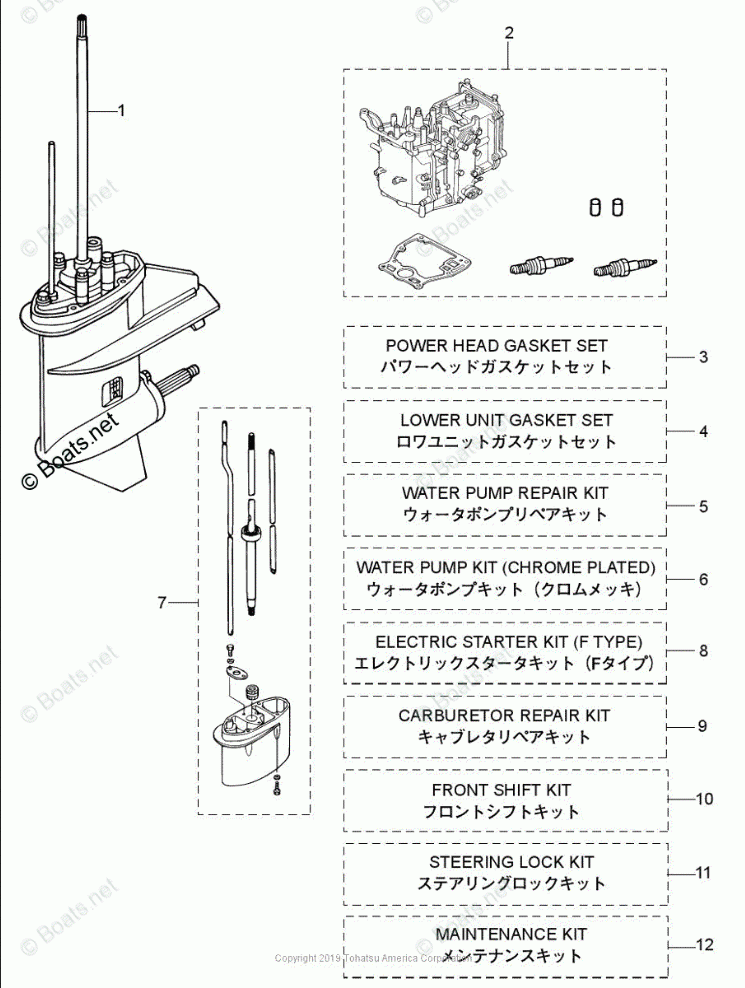

Tohatsu MFS8B

ASSEMBLY & KIT PARTS

#

oem код

название

цена

25-4

O-RING

O-RING

25-3

GASKET, HEAD COVER

GASKET, HEAD COVER

25-8

TERMINAL CAP

TERMINAL CAP

25-8

TERMINAL CAP

TERMINAL CAP

25-8

FUSE WIRE

FUSE WIRE

25-7

STOPPER, BUSHING

STOPPER, BUSHING

25-12

TRIM TAB

TRIM TAB

25-3

GASKET, OIL PUMP

GASKET, OIL PUMP

25-8

ELECTRIC BRACKET

ELECTRIC BRACKET

25-8

STAY, TERMINAL HOLDER

STAY, TERMINAL HOLDER

25-9

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

25-9

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

25-9

GASKET, FLOAT CHAMBER

GASKET, FLOAT CHAMBER

25-3

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

25-3

GASKET, INTAKE MANIFOLD

GASKET, INTAKE MANIFOLD

25-3

GASKET, ENGINE BASE

GASKET, ENGINE BASE

25-3

GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD

25-10

SHIFT LEVER, F8/9.8A3-F25/30C (AMB)

SHIFT LEVER, F8/9.8A3-F25/30C (AMB)

25-3

OIL SEAL

OIL SEAL

25-8

MOUNT RUBBER

MOUNT RUBBER

25-12

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

25-3

GASKET

GASKET

25-12

GASKET

GASKET

25-10

CABLE JOINT

CABLE JOINT

25-8

STAY, FUSE HOLDER

STAY, FUSE HOLDER

25-3

OIL SEAL

OIL SEAL

25-10

COLLAR, BRACKET

COLLAR, BRACKET

25-3

O-RING

O-RING

25-9

FLOAT ARM PIN

FLOAT ARM PIN

25-9

FLOAT

FLOAT

25-8

STARTER CABLE

STARTER CABLE

25-7

BUSHING, DRIVE SHAFT HOUSING

BUSHING, DRIVE SHAFT HOUSING

25-10

GROMMET

GROMMET

25-10

ROD, SHIFT LEVER (AMB)

ROD, SHIFT LEVER (AMB)

25-8

BATTERY CABLE L=2500

BATTERY CABLE L=2500

25-4

GASKET

GASKET

25-10

SHIFT DECAL

SHIFT DECAL

25-11

STEERING LOCK PLATE

STEERING LOCK PLATE

25-11

STEERING LOCK KIT (F8/9.8 EP/EPT/EFT) *{/*FITS 8/9.8A3 4-STR. REMOTE (EP / EPT) MODELS ONLY */}*

STEERING LOCK KIT (F8/9.8 EP/EPT/EFT) *{/*FITS 8/9.8A3 4-STR. REMOTE (EP / EPT) MODELS ONLY */}*

25-11

PRE-COATED BOLT 6-12

PRE-COATED BOLT 6-12

25-8

ELECTRIC START KIT, 8/9.8A2,A3, B (F TYPE)

ELECTRIC START KIT, 8/9.8A2,A3, B (F TYPE)

25-2

SHORT BLOCK (8-9.8/4-ST)

SHORT BLOCK (8-9.8/4-ST)

25-3

POWER HEAD GASKET SET

POWER HEAD GASKET SET

25-8

BRACKET,STARTER MOTOR

BRACKET,STARTER MOTOR

25-8

HOLDER, CABLE TERMINAL

HOLDER, CABLE TERMINAL

25-4

LOWER UNIT GASKET KIT 8/9.8B

LOWER UNIT GASKET KIT 8/9.8B

25-6

GUIDE PLATE, CHROME PLATED WATER PUMP

GUIDE PLATE, CHROME PLATED WATER PUMP

25-6

LINER, CHROME PLATED WATER PUMP CASE

LINER, CHROME PLATED WATER PUMP CASE

25-6

WATER PUMP REPAIR KIT, CHROME, 8 HP

WATER PUMP REPAIR KIT, CHROME, 8 HP

25-4

GASKET, DRIVESHAFT HOUSING

GASKET, DRIVESHAFT HOUSING

25-12

FUEL FILTER

FUEL FILTER

25-10

CHOKE ROD

CHOKE ROD

25-10

R-PIN (10 MULTIPLE)

R-PIN (10 MULTIPLE)

25-11

WASHER, 8.5-34-3

WASHER, 8.5-34-3

25-8

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

25-8

BOLT (10 MULTIPLE)- NO LONGER AVAILABLE *{/*PART IS NLA*/}*

BOLT (10 MULTIPLE)- NO LONGER AVAILABLE *{/*PART IS NLA*/}*

25-9

SCREW

SCREW

25-12

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

25-12

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)

25-8

WASHER, 6-16-1.5

WASHER, 6-16-1.5

25-4

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

25-7

WATER PIPE "UL"

WATER PIPE "UL"

25-7

CAM ROD UL

CAM ROD UL

25-9

CARBURETOR REPAIR KIT MFS8/9.8A-B

CARBURETOR REPAIR KIT MFS8/9.8A-B

25-1

LOWER UNIT ASSY L (AMB)

LOWER UNIT ASSY L (AMB)

25-1

LOWER UNIT ASSY S (AMB)

LOWER UNIT ASSY S (AMB)

25-12

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

25-3

OIL SEAL

OIL SEAL

25-8

TERMINAL CAP

TERMINAL CAP

25-4

O-RING

O-RING

25-12

KEY

KEY

25-9

O-RING

O-RING

25-3

GASKET, CARBURETOR

GASKET, CARBURETOR

25-8

STARTER SOLENOID

STARTER SOLENOID

25-8

COLLAR, 6.2-9-7.4

COLLAR, 6.2-9-7.4

25-8

MOUNT, RUBBER

MOUNT, RUBBER

25-7

EXTENSION HOUSING UL (AMB)

EXTENSION HOUSING UL (AMB)

25-5

WATER PUMP REPAIR KIT 8-9.8 HP

WATER PUMP REPAIR KIT 8-9.8 HP

25-5

GASKET

GASKET

25-6

GASKET

GASKET

25-4

GASKET

GASKET

25-12

GASKET

GASKET

25-5

GUIDE PLATE

GUIDE PLATE

25-12

GUIDE PLATE

GUIDE PLATE

25-5

KEY

KEY

25-12

IMPELLER (8/9.8)

IMPELLER (8/9.8)

25-10

FRONT SHIFT KIT, F8A,A2,A3/9.8A,A2,A3

FRONT SHIFT KIT, F8A,A2,A3/9.8A,A2,A3

25-12

LINER PUMP CASE

LINER PUMP CASE

25-3

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is not available. Have to replace cylinder head and thermostat cap to newer style.*/}*

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is not available. Have to replace cylinder head and thermostat cap to newer style.*/}*

25-4

OIL SEAL, PROPELLER SHAFT

OIL SEAL, PROPELLER SHAFT

25-12

ANODE, ZINC (ROUND)

ANODE, ZINC (ROUND)

25-4

O-RING A

O-RING A

25-10

WASHER

WASHER

25-5

LINER PUMP CASE

LINER PUMP CASE

25-12

GASKET

GASKET

25-5

IMPELLER (8/9.8)

IMPELLER (8/9.8)

25-6

GASKET

GASKET

25-4

GASKET

GASKET

25-5

GASKET

GASKET

25-4

GASKET, WATER PUMP CASE LOWER

GASKET, WATER PUMP CASE LOWER

25-5

GASKET, WATER PUMP CASE LOWER

GASKET, WATER PUMP CASE LOWER

25-6

IMPELLER (8/9.8)

IMPELLER (8/9.8)

25-9

FLOAT VALVE

FLOAT VALVE

25-7

EXTENSION HOUSING KIT UL (AMB)

EXTENSION HOUSING KIT UL (AMB)

25-8

RECTIFIER

RECTIFIER

25-8

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

25-8

MAIN SWITCH

MAIN SWITCH

25-8

STARTER MOTOR (S106-12B)

STARTER MOTOR (S106-12B)

25-10

SHAFT, SHIFT LEVER (AMB)

SHAFT, SHIFT LEVER (AMB)

25-8

COVER

COVER

25-8

FLYWHEEL CUP

FLYWHEEL CUP

25-8

ALTERNATOR

ALTERNATOR

25-8

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

25-11

BRACKET CAP

BRACKET CAP

25-8

COLLAR, 6-8-6

COLLAR, 6-8-6

25-9

SCREW

SCREW

25-5

BOLT

BOLT

25-7

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

25-8

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

25-3

O-RING

O-RING

25-7

BOLT, 6-35 PRECOATED

BOLT, 6-35 PRECOATED

25-9

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

25-10

BRACKET, SHIFT LEVER (AMB)

BRACKET, SHIFT LEVER (AMB)

25-8

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

25-10

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

25-8

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

25-8

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

25-10

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

25-10

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

25-3

O-RING

O-RING

25-10

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

25-5

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

25-9

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

25-12

SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)

SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)

25-4

OIL SEAL

OIL SEAL

25-10

WASHER

WASHER

25-11

PRE-COATED BOLT 8-20

PRE-COATED BOLT 8-20
