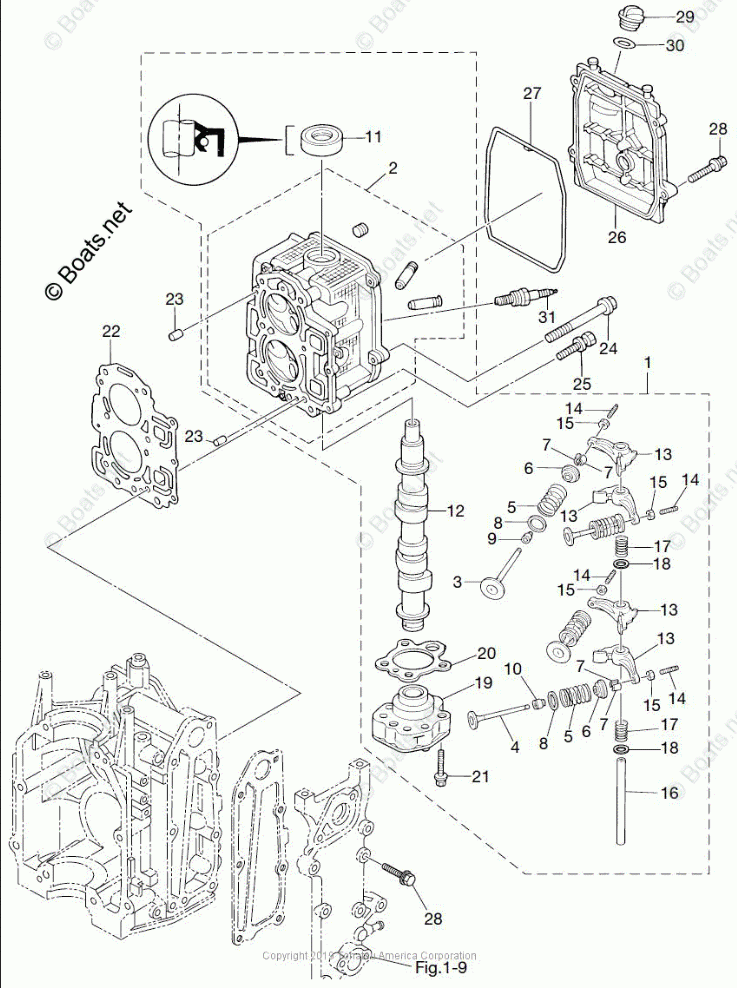

CYLINDER HEAD & OIL PUMP

Tohatsu MFS8B
Tohatsu
#oem кодцена
3-29
3R0710151M
FILLER CAP, ENGINE OIL
3-11
3H8070250M
OIL SEAL
3-25
9101145625M
BOLT (10 MULTIPLE)
3-12
3Y4078100M
CAMSHAFT
3-13
3Y2079350M
ROCKER ARM
3-16
3Y2079200M
SHAFT, ROCKER ARM NLA *{/*PART IS NO LONGER AVAILABLE*/}*
3-20
3V1076530M
GASKET, OIL PUMP
3-19
3V1076000M
OIL PUMP
3-8
3V1072050M
SEAT, VALVE SPRING
3-3
3V1072010M
INTAKE VALVE
3-27
3V1010240M
GASKET, HEAD COVER
3-22
3V1010050M
GASKET, CYLINDER HEAD
3-18
3R3072270M
WASHER
3-14
3R0072380M
SCREW
3-15
3H8072370M
NUT
3-24
3H8010121M
BOLT
3-4
3V1072020M
EXHAUST VALVE
3-17
3AA072250M
SPRING, ROCKER SHAFT NLA *{/*PART IS NO LONGER AVAILABLE*/}*
3-5
3AA072030M
VALVE SPRING NO LONGER AVAILABLE *{/*PART IS NO LONGER AVAILABLE*/}*
3-10
3R3072060M
SEAL, EXH VALVE STEM
3-9
3R3072040M
SEAL, INT VALVE STEM
3-30
3R0074220M
O-RING
3-7
3KY079230M
COTTER
3-23
345011110M
DOWEL PIN 6-12
3-31
970101103M
SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)
3-21
9101E35635M
BOLT & WASHER (10 MULTIPLE)
3-28
9101E35625M
BOLT & WASHER (10 MULTIPLE)
3-26
3V1B010210
COVER, CYLINDER HEAD
3-2
3V1B010010
CYLINDER HEAD
3-1
3V1B010004
CYLINDER HEAD ASSY, MFS8/9.8A3
3-6
3GT079210M
RETAINER *{/* WHEN REPLACING 3AE079210M USE USE 3GT079210M AND 3KY079230M*/}*
