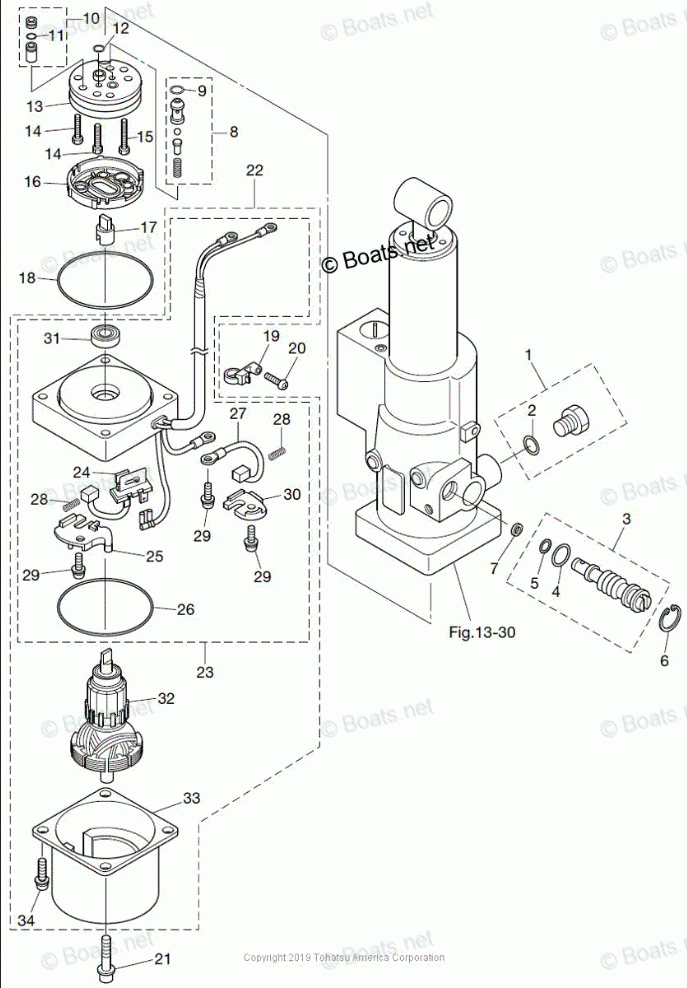

POWER TILT Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8B (2019)

POWER TILT

Tohatsu MFS8B

oem код

название

цена

14-7

3AC771730M

SEAL WASHER

14-9

3Z0771790M

O-RING

14-34

9215030512M

SCREW (10 MULTIPLE)

14-19

3Z1843981M

BAND

14-10

3Z0774600M

VALVE ASSY

14-8

3Z0774500M

RELIEF VALVE ASSY

14-21

3Z0774310M

BOLT

14-1

3Z0772210M

CAP ASSY

14-33

3Z0771950M

YOKE ASSY

14-23

3Z0771920M

MOTOR BRACKET ASSY

14-24

3Z0771910M

BREAKER- NO LONGER AVAILABLE *{/* NO LONGER AVAILABLE*/}*

14-32

3Z0771900M

ARMATURE ASSY

14-25

3Z0771870M

BREAKER HOLDER NLA *{/* PART IS NO LONGER AVAILABLE*/}*

14-30

3Z0771860M

BRUSH HOLDER NLA *{/* PART IS NO LONGER AVAILABLE*/}*

14-22

3Z0771800M

MOTOR ASSY

14-5

3Z0771790M

O-RING

14-3

3Z0771750M

MANUAL VALVE ASSY

14-12

3B7771690M

O-RING

14-27

3E0771830M

BRUSH

14-2

3B7771690M

O-RING

14-15

3B7774311M

BOLT

14-14

3B7774321M

BOLT

14-16

3B7774341M

FILTER B

14-13

3C8774300M

PUMP- NO LONGER AVAILABLE *{/* NO LONGER AVAILABLE*/}*

14-17

3E0771630M

COUPLING, PUMP

14-28

3E0771840M

SPRING, BRUSH

14-26

3Z0771670M

O-RING

14-31

3E0771930M

OIL SEAL-NOT AVAILABLE

14-18

3R0771670M

O-RING

14-6

3R0771710M

C-RING

14-4

3R0771770M

O-RING

14-11

3R0774510M

O-RING

14-20

3V1643330M

SCREW, PRE-COATED

14-29

9215215512M

SCREW (10 MULTIPLE)
