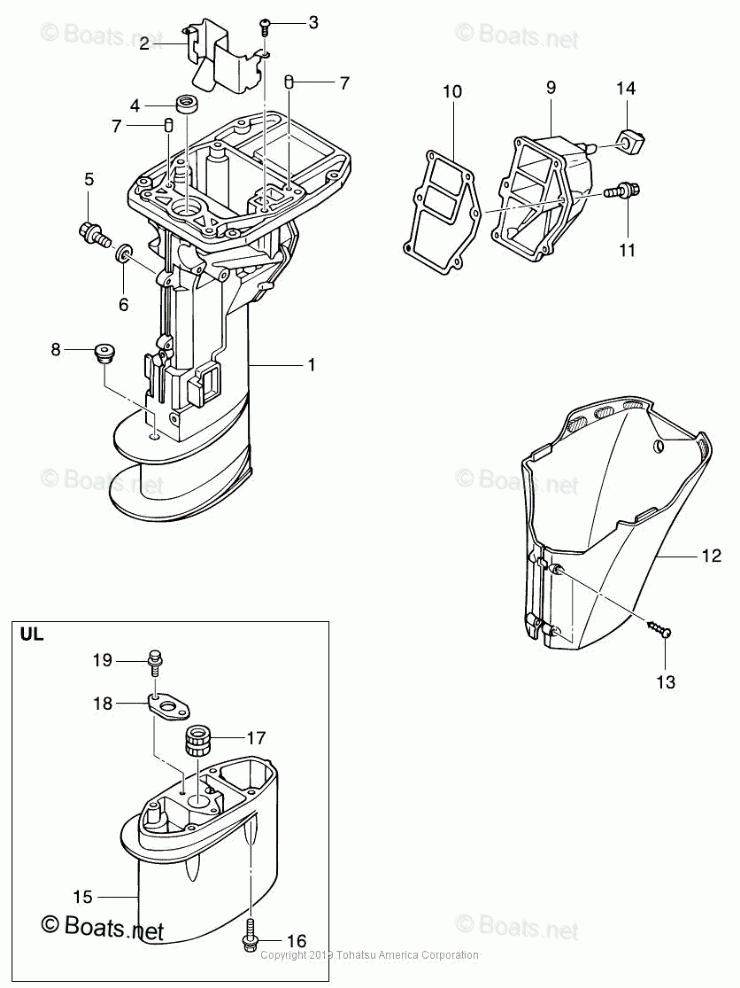

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS8B
Tohatsu
#oem кодцена
9-15
3B2Q611102
EXTENSION HOUSING UL (AMB)
9-17
3B2600031M
BUSHING, DRIVE SHAFT HOUSING
9-18
3V1643320M
STOPPER, BUSHING
9-10
3V1612200M
GASKET, IDLE PORT
9-14
3V1612120M
GROMMET, IDLE PORT
9-2
3V1074401M
GUIDE PLATE
9-5
3R3077051M
DRAIN BOLT (14mm-1.50 pitch)
9-6
3R3074060M
WASHER (10 MULTIPLE)
9-13
3F3024230M
TAPPING SCREW 5-30
9-4
3B2012150M
OIL SEAL
9-1
3V1Q610202
DRIVE SHAFT HOUSING S (AMB)
9-8
369660431M
GROMMET
9-19
9101E35612M
BOLT & WASHER (10 MULTIPLE)
9-7
345011110M
DOWEL PIN 6-12
9-11
9101E35620M
BOLT & WASHER (10 MULTIPLE)
9-16
3V2600010M
BOLT, 6-35 PRECOATED
9-12
3V1Q612250
APRON (AMB)
9-1
3V1Q610301
DRIVE SHAFT HOUSING L (AMB)
9-3
9215036510M
SCREW (10 MULTIPLE)
