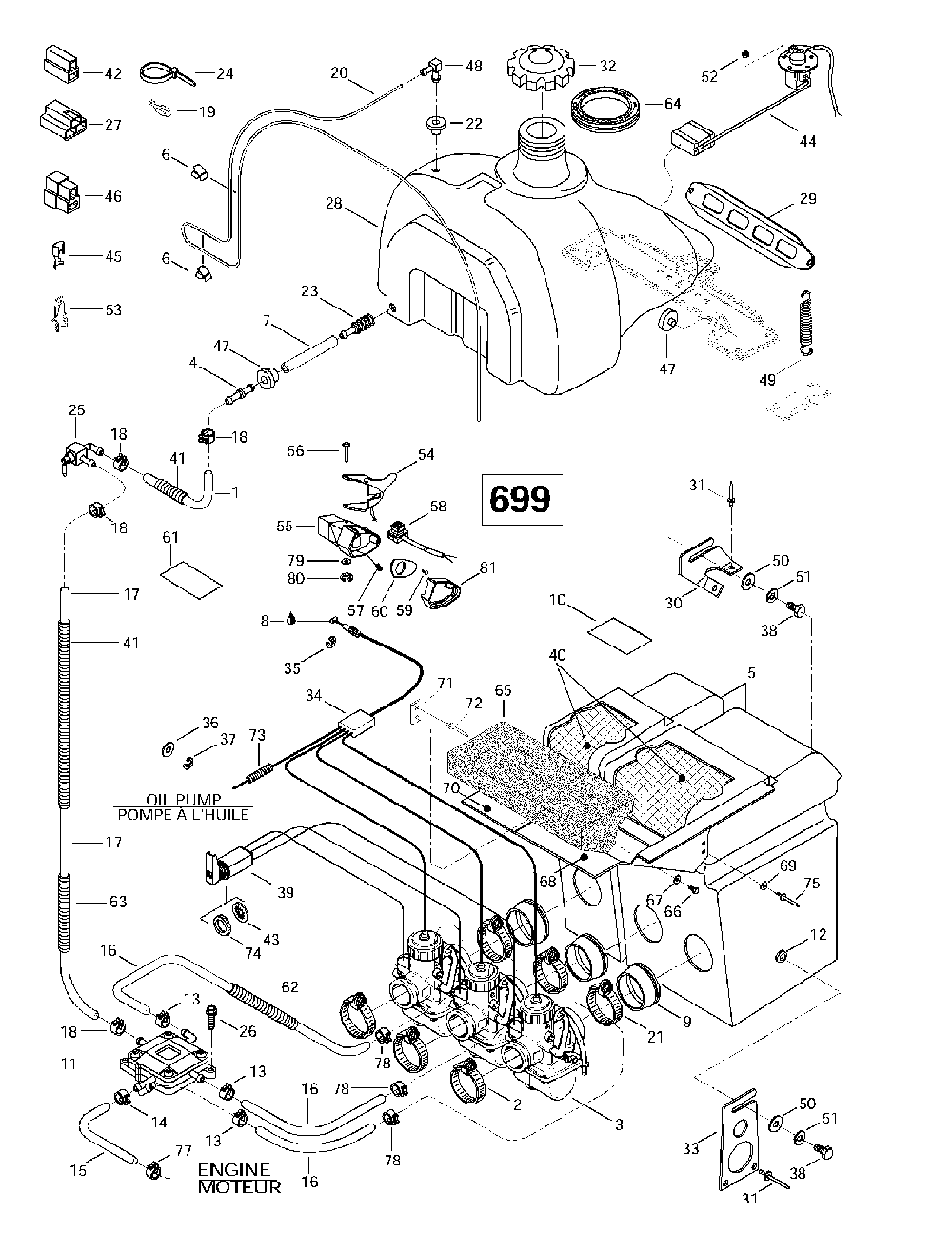

02- fuel system (699)

Ski-Doo (Bombardier) Mach Z
Ski-Doo (Bombardier)
#oem кодцена
1
414933900
Boyau Forme *hose-formed Mach 1.
2
414830100
Collet *collar Mach 1.
3
403129200
Carb.vm-38 *carb-vm-38 Mach 1.
4
414872700
Raccord Male *connector-male Mach 1.
5
580647600
Silenc.adm.ass.*intake-air Ass Mach 1. (incl. 9, 10, 12, 40, 68, 69, 75)
580647700
Silenc.adm.ass.*intake-air Ass Mach 1. (incl. 9, 10, 12, 40, 69, 70, 71, 72, 75)
6
414227300
Clip - Spring Mach 1.
7
415005700
Boyau Polyure *hose-polyurethane Mach 1.
9
570047000
Adap.admis.vm36*adap-air Vm-36 Mach 1.
10
414161500
Etiquette Avert*label-warning Mach 1.
11
403901100
Pompe A Essence*pump-fuel Mach 1.
12
732610057
Jack-nut M6 Mach 1.
13
414554800
Bride A Ressort*clamp-spring Mach 1.
14
414415200
Bride A Ressort*clamp-spring Mach 1.
15
415063100
Boyau 90 D. *hose-90 D. Mach 1.
16
415080200
Boyau Polyure *polyurethane Hose Mach 1.
17
415080300
Conduit D Ess. *line-fuel Mach 1.
18
414655700
Bride A Ressort*clamp-spring Mach 1.
19
515175253
Cosse Femelle *terminal-femal Mach 1.
20
415080100
Boyau Amorce *line-primer Mach 1.
22
570135100
Passe-fils *grommet Mach 1.
23
414872100
Crepine *filter-fuel Mach 1.
24
414115200
Tie-rap 180 Mm Mach 1.
25
414872200
Valve Essence *valve-shutoff Mach 1.
26
210262080
Screw-forming Hex.hd.fl.gm6174m Mach 1.
27
409008500
Logement Femel.*housing-female Mach 1.
28
572057100
Reservoir Essen*tank-fuel Mach 1.
29
517249200
Support Res.ess*support-tank Fuel Mach 1.
30
518313900
Attache Inter. *bracket-inner Mach 1.
31
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mach 1.
32
513033024
Bouchon Essence*cap-fuel Mach 1.
33
517252000
Attache Ext. *bracket-outer Mach 1.
34
414966501
Cable Acc.vm-36*cable-throttle Mach 1.
35
414274500
Circlip-black Chromate Mach 1.
36
414753300
Rondelle *washer Mach 1.
37
414753500
Circlip-type Bs N Mach 1.
38
207162044
Screw-hex.cap Din.933 Mach 1.
39
415006200
Cable Etrang. *cable-choke Mach 1.
40
572029103
Filtre A Air *filter-air Mach 1.
572029007
Filtre A Air *filter-air Mach 1.
41
415080000
Gaine *protector Tube Mach 1.
42
409204600
Logement Femel.*housing-female Mach 1.
43
394103300
Washer-lock Int.teeth Mach 1.
44
415114700
Capt.niv.ess. *sensor-fuel Mach 1.
46
409204500
Logement Male *housing-male Mach 1.
47
570273900
Passe-fils *grommet Mach 1.
48
414814100
Raccord Male *connector-male Mach 1.
49
415107100
Ressort *spring Mach 1.
50
224061121
Washer-flat Mach 1.
51
234161471
Washer-lock Black Din.127b Mach 1.
52
232551414
Nut-stop Elastic Din.985 Mach 1.
53
409210000
Cosse Male *terminal-male Mach 1.
54
512059153
Manette Ass. *handle-assy Mach 1.
55
512060193
Logement Acc. *housing-throttle Mach 1.
56
414438700
Goupille Levier*pin-lever Mach 1.
57
414440800
Screw-set Din 916-a2 Mach 1.
58
515176725
Interrupteur *kill Switch Mach 1.
59
211000098
Screw-thread Cut.ph.pan Type25 Mach 1.
60
512059507
Plaque *plate Mach 1.
61
414931500
Etiquette Secur*label-security Mach 1.
62
409901800
Tubing - Insulating 13 Mm Mach 1.
63
414942900
Gaine *tubing Mach 1.
64
570276900
Bague Caout. *ring-rubber Mach 1.
65
415027600
Filtre A Air *filter-air Mach 1.
66
222851465
Screw-pan Hd.ph.din.7985a Mach 1.
67
234451418
Washer-lock Serrated Din.6798a Mach 1.
68
517284900
Deflect. Long *deflect.-long Mach 1.
69
517225900
Washer - Flat Mach 1.
70
517285000
Deflect. Court *deflect.-short Mach 1.
71
517278500
Plaquette Soude*plate-weld Mach 1.
72
390402400
Rivet-pop 3/16 *rivet-pop 3/16 Mach 1.
74
512059364
Ecrou Plastique*nut-plastic Mach 1.
75
390406600
Rivet-pop 3/16 *rivet-pop 3/16 Mach 1.
76
390909200
Rivet Avex *rivet Avex Mach 1.
77
408801100
Bride Serrage *clamp-gear Mach 1.
78
414420700
Bride A Ressort*clamp-spring Mach 1.
79
414438900
Rondelle *washer Mach 1.
80
414439000
Circlip *circlip Mach 1.
81
572044600
Couvercle Acc. *cover-throttle Mach 1.
21
414830100
Collet *collar Mach 1.
45
515175253
Cosse Femelle *terminal-femal Mach 1.
73
409901800
Tubing - Insulating 13 Mm Mach 1.
