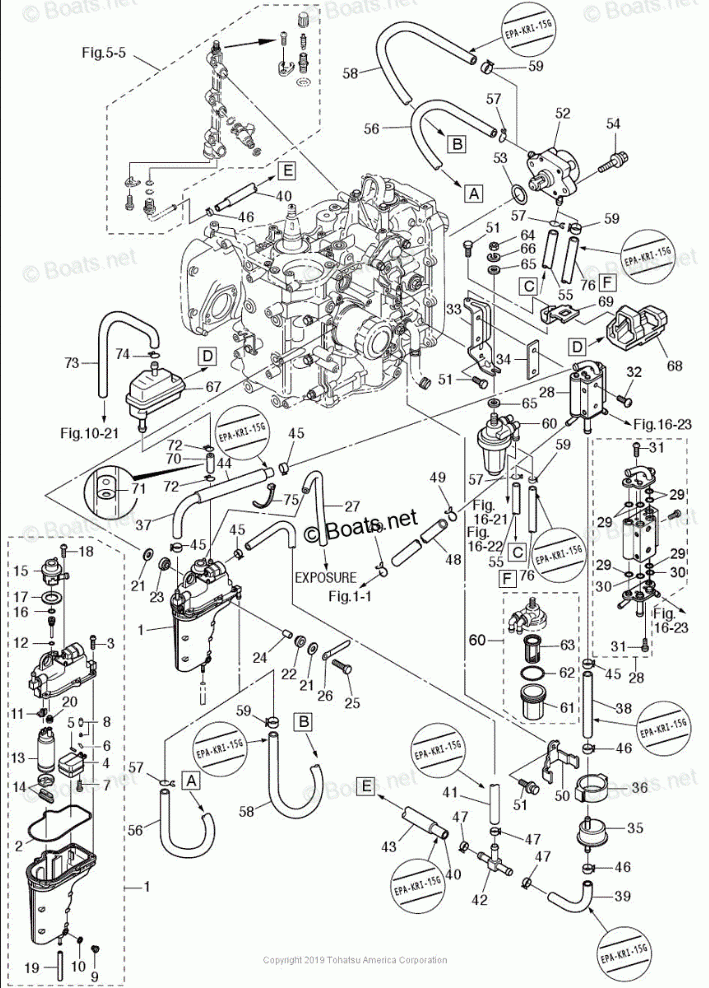

Fuel System

Tohatsu MFS30C
Tohatsu
#oem кодцена
6-6
344032440M
CLIP
6-36
3AC101450M
RUBBER MOUNT, FUEL FILTER
6-42
3AC700130M
T-NIPPLE
6-67
3AC103200M
AIR VENT ASSY
6-28
3AC101750M
FUEL COOLER ASSY
6-30
3AC101640M
O-RING
6-15
3AC101540M
FUEL REGULATOR
6-1
3AC101500M
VAPOR SEPARATOR
6-50
3AC101440M
BAND, FUEL FILTER
6-37
3AD022090M
LOW PERMEATION HOSE
6-16
3AC100950M
O-RING
6-29
3AC100460M
O-RING
6-34
3AC100190M
GASKET, FUEL COOLER
6-46
3AC090561M
CLIP
6-11
3AC069520M
TERMINAL HOLDER
6-68
3AC063020M
RUBBER MOUNT, AIR VENT NLA *{/* PART IS NO LONGER AVAILABLE*/}*
6-14
3AC043220M
FILTER (INLET)
6-69
3AC761740M
AIR VENT STAY
6-41
3AD022100M
LOW PERMEATION HOSE
6-9
3AC032920M
DRAIN SCREW
6-5
3F3032320M
ARM PIN, FLOAT
6-3
9215036416M
SCREW
6-31
9215036410M
SCREW (10 MULTIPLE)
6-47
3T5100860M
CLAMP, 21/32" (17.5mm)
6-58
3NW040550M
HOSE, LOW PERMEATION
6-48
3NV652100M
COOLING HOSE, CYLINDER FUEL COOLER
6-76
3NV040550M
HOSE, LOW PERMEATION
6-40
3AL022100M
LOW PERMEATION HOSE
6-63
3AD022340M
FILTER
6-71
3AD101700M
ORIFICE
6-43
3AD061570M
HOSE PROTECTOR NLA *{/*PART IS NO LONGER AVAILABLE*/}*
6-44
3AD061330M
PROTECTOR @18-130
6-20
3AD043190M
GROMMET
6-12
3AD031160M
O-RING
6-61
3AD022370M
CUP
6-62
3AD022350M
O-RING
6-17
3AC043130M
GROMMET
6-2
3AC032350M
O-RING
6-13
3AC043100M
FUEL FEED PUMP
6-64
9301030800M
NUT (10 MULTIPLE)
6-55
98AB501000M
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
6-70
98AB501000M
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
6-56
98AB501000M
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
6-19
98AB301000M
FUEL PIPE 3MM 1/8" (1 EA.=1 METER)
6-27
98AB301000M
FUEL PIPE 3MM 1/8" (1 EA.=1 METER)
6-65
9401030800M
WASHER (10 MULTIPLE)
6-54
9101E35625M
BOLT & WASHER (10 MULTIPLE)
6-57
338022150M
CLIP, FUEL PIPE
6-51
9101E35616M
BOLT & WASHER (10 MULTIPLE)
6-25
9101E30630M
BOLT (10 MULTIPLE)
6-8
3R3032390M
FLOAT VALVE
6-53
3H8624150M
O-RING
6-52
3H8040001M
FUEL PUMP, F25/30A/B F9.9/15/18/20
6-60
3AD022300M
FUEL FILTER ASSY
6-35
3ACB101430
FUEL FILTER, HIGH PRESSURE
6-72
338022150M
CLIP, FUEL PIPE
6-49
338022150M
CLIP, FUEL PIPE
6-18
3AC032340M
SCREW
6-23
3B7069200M
MOUNT RUBBER
6-4
3AC032300M
FLOAT
6-10
3AC031160M
O-RING, DRAIN SCREW
6-33
3AC022390M
PLATE
6-39
3AC022100M
LOW PERMEATION HOSE
6-38
3AC022090M
LOW PERMEATION HOSE
6-74
338011330M
LOCK RING
6-45
3AC100870M
CLAMP
6-21
346671150M
WASHER
6-22
346671130M
MOUNT RUBBER
6-73
98AL401000M
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
6-66
9413030800M
SPRING WASHER (10 MULTIPLE)
6-7
9215030408M
SCREW (10 MULTIPLE)
6-26
3T4069721M
CLAMP
6-24
346671141M
SPACER
6-59
3GT351430M
CLIP, @ 9.4
6-32
9219030635M
SCREW
