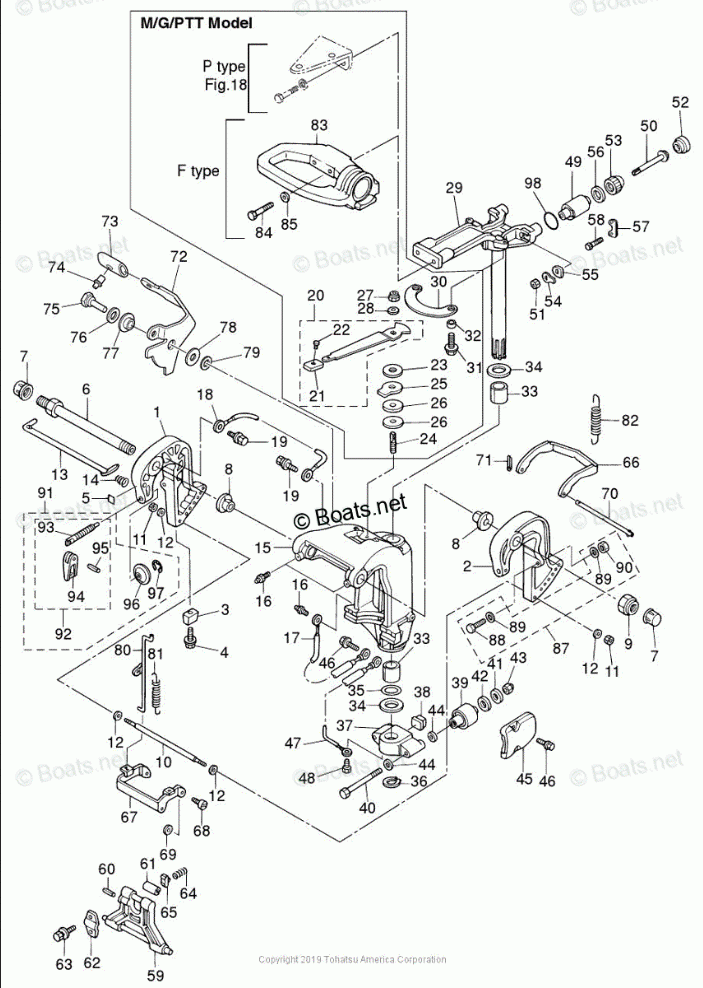

BRACKET (MANUAL TILT)
BRACKET (MANUAL TILT)

BRACKET (MANUAL TILT)

Tohatsu MFS30C

BRACKET (MANUAL TILT)

#

oem код

название

цена

12-13

THRUST ROD

THRUST ROD

12-33

BUSHING

BUSHING

12-3

ANODE

ANODE

12-87

RIGGING BOLT SET

RIGGING BOLT SET

12-32

COLLAR

COLLAR

12-63

BOLT

BOLT

12-21

GRIP

GRIP

12-20

HANDLE, CO-PILOT

HANDLE, CO-PILOT

12-30

PLATE, CO-PILOT

PLATE, CO-PILOT

12-62

SETTING PLATE, TILT STOPPER

SETTING PLATE, TILT STOPPER

12-34

THRUST PLATE

THRUST PLATE

12-35

O-RING

O-RING

12-39

MOUNT RUBBER, LOWER

MOUNT RUBBER, LOWER

12-41

WASHER, 13-34-3

WASHER, 13-34-3

12-67

ARM REVERSE LOCK

ARM REVERSE LOCK

12-80

LINK, REVERSE LOCK

LINK, REVERSE LOCK

12-82

SPRING S

SPRING S

12-81

SPRING

SPRING

12-66

REVERSE LOCK

REVERSE LOCK

12-70

ROD

ROD

12-61

BUSHING

BUSHING

12-10

DISTANCE PIECE

DISTANCE PIECE

12-42

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

12-38

DAMPER RUBBER

DAMPER RUBBER

12-68

SHAFT

SHAFT

12-44

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-15

SWIVEL BRACKET

SWIVEL BRACKET

12-26

DISK, CO-PILOT

DISK, CO-PILOT

12-29

STEERING SHAFT ASSY *{/*USE 3AHQ620100 UNTIL OUT*/}*

STEERING SHAFT ASSY *{/*USE 3AHQ620100 UNTIL OUT*/}*

12-2

CLAMP BRACKET, LEFT

CLAMP BRACKET, LEFT

12-1

CLAMP BRACKET, RIGHT

CLAMP BRACKET, RIGHT

12-91

CLAMP SCREW KIT

CLAMP SCREW KIT

12-59

TILT STOPPER

TILT STOPPER

12-60

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

12-36

C-RING

C-RING

12-51

NUT

NUT

12-98

O-RING

O-RING

12-53

UPPER DAMPER RUBBER B

UPPER DAMPER RUBBER B

12-56

LOCK PLATE, UPPER

LOCK PLATE, UPPER

12-52

UPPER DAMPER RUBBER A

UPPER DAMPER RUBBER A

12-43

NYLON NUT

NYLON NUT

12-54

LOCK PLATE, MOUNT RUBBER

LOCK PLATE, MOUNT RUBBER

12-40

BOLT, LOWER MOUNT RUBBER

BOLT, LOWER MOUNT RUBBER

12-57

RETAINER, MOUNT RUBBER

RETAINER, MOUNT RUBBER

12-50

BOLT W/WASHER

BOLT W/WASHER

12-49

UPPER MOUNT RUBBER

UPPER MOUNT RUBBER

12-72

REVERSE LOCK LEVER

REVERSE LOCK LEVER

12-55

WASHER, RUBBER MOUNT B

WASHER, RUBBER MOUNT B

12-69

WASHER, 6-16-1.5

WASHER, 6-16-1.5

12-14

SPRING, THRUST ROD

SPRING, THRUST ROD

12-31

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-85

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-28

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-76

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-89

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-27

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

12-90

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-11

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-88

BOLT

BOLT

12-46

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-4

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-96

PAD, CLAMP SCREW (THREADED STYLE)

PAD, CLAMP SCREW (THREADED STYLE)

12-58

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-92

CLAMP SCREW ASSY

CLAMP SCREW ASSY

12-94

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

12-83

STEERING BRACKET (AMB)

STEERING BRACKET (AMB)

12-45

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

12-82

SPRING L, REVERSE LOCK

SPRING L, REVERSE LOCK

12-64

SPRING

SPRING

12-6

SWIVEL BRACKET BOLT

SWIVEL BRACKET BOLT

12-78

WASHER

WASHER

12-9

BRACKET NUT

BRACKET NUT

12-71

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)

12-48

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-79

WASHER, 6-16-1.5

WASHER, 6-16-1.5

12-95

SPRING PIN

SPRING PIN

12-5

LABEL, CO-PILOT

LABEL, CO-PILOT

12-17

GROUND WIRE

GROUND WIRE

12-73

LOCK LEVER GRIP

LOCK LEVER GRIP

12-75

SHOULDER BOLT

SHOULDER BOLT

12-77

BUSHING

BUSHING

12-8

BUSHING BRACKET BOLT

BUSHING BRACKET BOLT

12-74

STOPPER

STOPPER

12-22

STOPPER

STOPPER

12-65

SET PIECE

SET PIECE

12-97

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)

12-19

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-93

CLAMP SCREW

CLAMP SCREW

12-25

WASHER, CO-PILOT

WASHER, CO-PILOT

12-24

BOLT, CO-PILOT

BOLT, CO-PILOT

12-23

WASHER

WASHER

12-84

BOLT

BOLT

12-47

GROUND WIRE

GROUND WIRE

12-18

GROUND WIRE

GROUND WIRE

12-7

BRACKET CAP

BRACKET CAP

12-16

GREASE NIPPLE

GREASE NIPPLE

12-12

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-37

MOUNT BRACKET

MOUNT BRACKET
