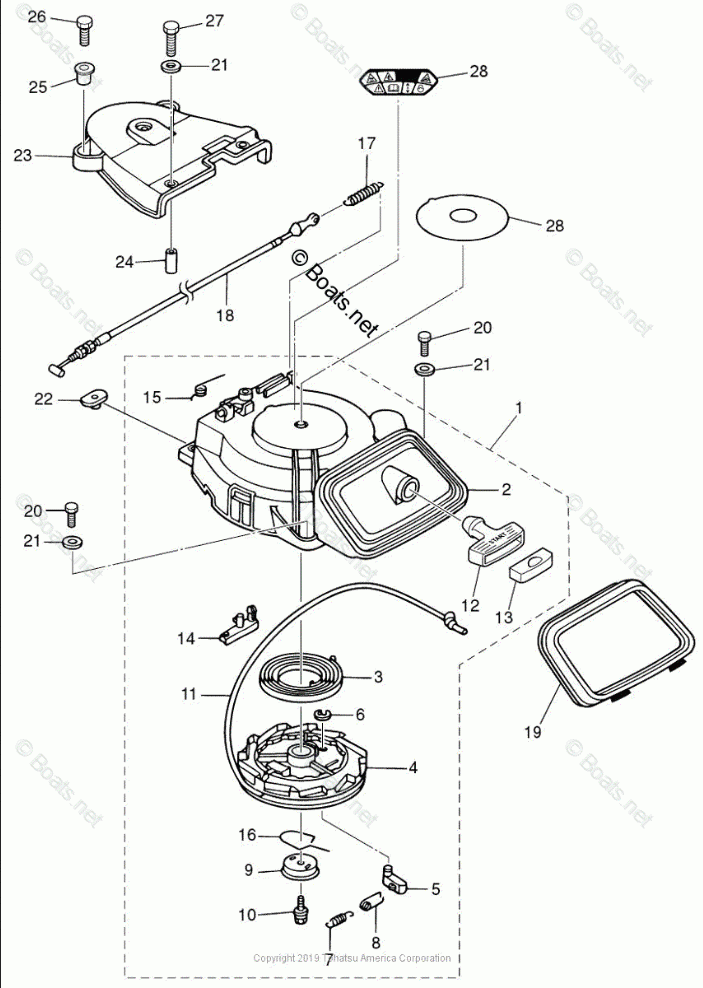

ПУСКОВОЙ МЕХАНИЗМ
ПУСКОВОЙ МЕХАНИЗМ

ПУСКОВОЙ МЕХАНИЗМ

Tohatsu MFS30C

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

7-21

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-1

RECOIL STARTER ASSY

RECOIL STARTER ASSY

7-24

COLLAR

COLLAR

7-10

TAPPING SCREW

TAPPING SCREW

7-23

BELT COVER

BELT COVER

7-4

REEL

REEL

7-7

RETURN SPRING

RETURN SPRING

7-6

E-RING

E-RING

7-5

RATCHET

RATCHET

7-19

STARTER SEAL

STARTER SEAL

7-22

NUT

NUT

7-25

COLLAR, 6.1-14-8.9

COLLAR, 6.1-14-8.9

7-18

STARTER LOCK, CABLE

STARTER LOCK, CABLE

7-2

STARTER CASE

STARTER CASE

7-12

STARTER HANDLE

STARTER HANDLE

7-8

RATCHET GUIDE

RATCHET GUIDE

7-14

STARTER LOCK

STARTER LOCK

7-15

SPRING

SPRING

7-11

STARTER ROPE

STARTER ROPE

7-9

FRICTION PLATE

FRICTION PLATE

7-3

STARTER SPRING

STARTER SPRING

7-20

BOLT, PRE-COATED 6-20

BOLT, PRE-COATED 6-20

7-17

CAM SPRING, STARTER LOCK

CAM SPRING, STARTER LOCK

7-28

CAUTION DECAL B

CAUTION DECAL B

7-28

CAUTION DECAL (B)

CAUTION DECAL (B)

7-13

ROPE ANCHOR

ROPE ANCHOR

7-27

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-26

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-16

FRICTION SPRING

FRICTION SPRING
