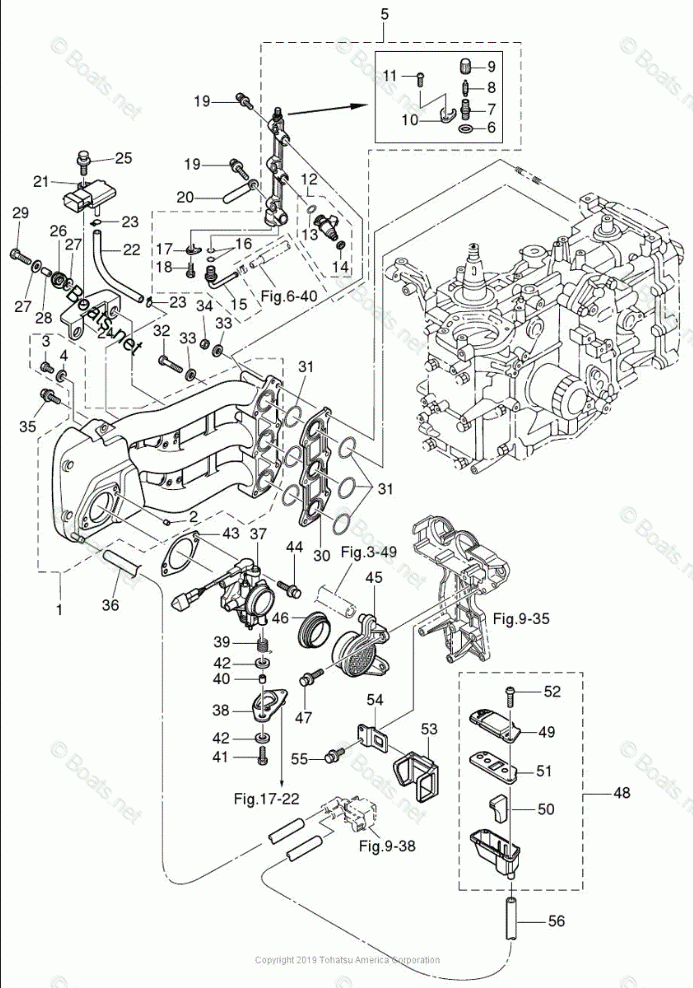

ВПУСКНОЙ КОЛЛЕКТОР

Tohatsu MFS30C
Tohatsu
#oem кодцена
5-12
3AC103001M
FUEL INJECTOR
5-14
3AC103031M
O-RING
5-30
3AC039520M
INSULATOR
5-24
3AC072330M
PLATE, MAP SENSOR
5-8
3AC100980M
VALVE ASSY
5-9
3AC100990M
CAP
5-43
3AC101040M
GASKET, THROTTLE BODY
5-50
3AC101300M
AIR FILTER
5-15
3AC101610M
NIPPLE NO LONGER AVAILABLE *{/* PART IS NO LONGER AVAILABLE*/}*
5-6
3AC101620M
O-RING
5-10
3AC101690M
PLATE
5-5
3AC102000M
FUEL RAIL ASSY
5-21
3AC102140M
MAP SENSOR
5-13
3AC103041M
O-RING
5-49
3AC024160M
INTAKE SILENCER COVER
5-53
3AC636240M
GROMMET
5-54
3AC637370M
STAY
5-7
3AC773670M
JOINT
5-56
3AD022030M
FUEL HOSE
5-45
3AD024090M
INTAKE SILENCER ASSY, THROTTLE BODY NLA *{/* PART IS LONGER AVAILABLE*/}*
5-3
3R0020950M
BOLT
5-4
3R0021120M
WASHER
5-11
9215030410M
SCREW (10 MULTIPLE)
5-37
3AC101001M
THROTTLE BODY ASSY, F30B
5-38
3AC637490M
THROTTLE CAM, F30B
5-39
3AC637271M
SPRING
5-46
3AC024180M
GASKET
5-51
3AC024140M
INTAKE SILENCER GASKET
5-27
3C8663080M
WASHER (10 MULTIPLE)
5-33
9401030600M
WASHER (10 MULTIPLE)
5-28
3H6760791M
COLLAR, 6.2-9-7.4
5-16
3T5101620M
O-RING 9.8-1.9
5-29
9101030620M
BOLT (10 MULTIPLE)
5-41
9101030625M
BOLT (10 MULTIPLE)
5-18
9101E35616M
BOLT & WASHER (10 MULTIPLE)
5-25
9101E35616M
BOLT & WASHER (10 MULTIPLE)
5-47
9101E35620M
BOLT & WASHER (10 MULTIPLE)
5-44
9101E35625M
BOLT & WASHER (10 MULTIPLE)
5-35
9101E35625M
BOLT & WASHER (10 MULTIPLE)
5-19
9101E35625M
BOLT & WASHER (10 MULTIPLE)
5-34
9301030600M
NUT (10 MULTIPLE)
5-2
345011110M
DOWEL PIN 6-12
5-48
3AC024090M
INTAKE SILENCER ASSY, ISC
5-42
346671150M
WASHER
5-55
9101E35612M
BOLT & WASHER (10 MULTIPLE)
5-20
3PR069720M
CLAMP
5-26
3T5069200M
MOUNT RUBBER
5-32
9161140653M
BOLT (10 MULTIPLE)
5-22
98AL401000M
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
5-52
3AC059130M
TAPPING SCREW
5-17
3T5101690M
PLATE, NIPPLE
5-23
338011330M
LOCK RING
5-40
353760790M
COLLAR
5-31
3AC020120M
O-RING
5-36
3AC022030M
FUEL HOSE NO LONGER AVAILABLE *{/*PART IS NO LONGER AVAILABLE*/}*
5-1
3AC020101M
INTAKE MANIFOLD
