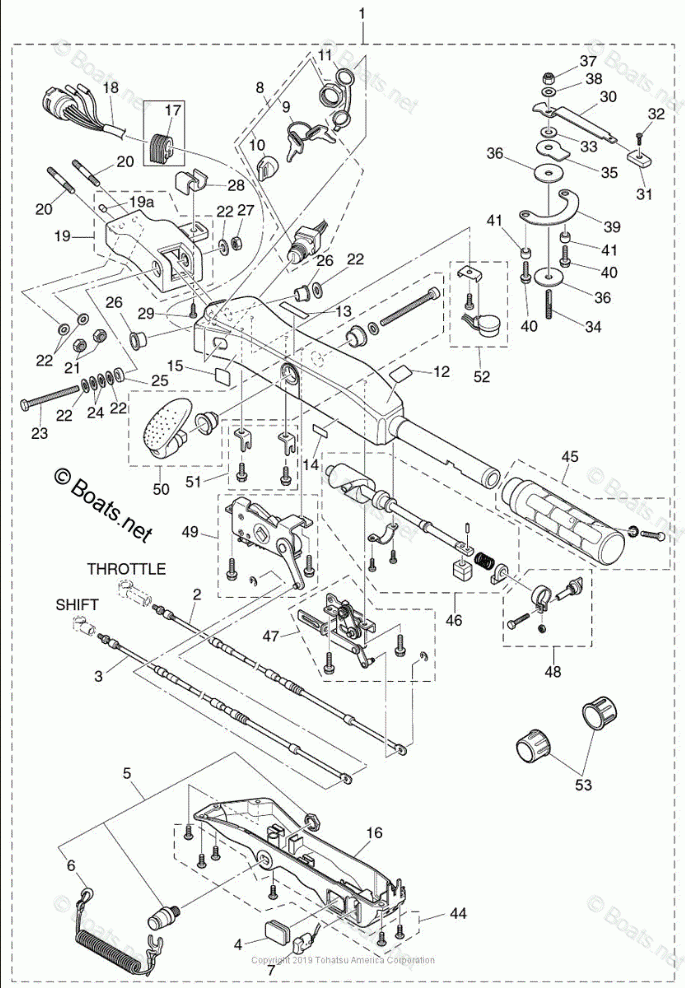

TILLER HANDLE (MULTI-FUNCTION)

Tohatsu MFS30C
Tohatsu
#oem кодцена
20A-6
353068210M
SAFETY LANYARD & LOCK
20A-49
3GF661600M
SHIFT UNIT ASSY
20A-26
3GF631020M
BUSHING
20A-45
3GF631930M
GRIP PARTS KIT
20A-23
3GF632010M
BOLT
20A-44
3GF632050M
SCREW SET
20A-24
3GF633050M
CONICAL SPRING WASHER
20A-27
3GF633100M
LOCK NUT
20A-16
3GF633200M
TILLER HANDLE COVER
20A-17
3GF636240M
GROMMET
20A-19A
3GF650120M
DOWEL PIN, TILLER HANDLE
20A-50
3GF661580M
SHIFT LEVER KIT
20A-51
3GF661980M
CABLE BRACKET KIT
20A-46
3GF630620M
THROTTLE SHAFT KIT
20A-13
3GF675781M
SHIFT DECAL
20A-12
3GF720190M
THROTTLE DECAL
20A-14
3GF722000M
STOP SWITCH DECAL
20A-52
3GF761750M
BUZZER KIT
20A-15
3GF843390M
INSTRUCTION DECAL
20A-2
3NV636000M
THROTTLE WIRE-MULTI-FUNCTION TILLER F25/30C
20A-3
3NV661960M
SHIFT CABLE-MULTI-FUNCTION TILLER F25/30C
20A-11
3T5760220M
CAP , MAIN SWITCH
20A-20
9153E31040M
STUD BOLT
20A-21
9304031000M
NYLON NUT
20A-1
3NVQ630003
Multi Function Tiller Handle Kit (MFS30/25C) AQ/Blue switch on grip
20A-47
3GF630670M
THROTTLE LINK ASSY
20A-48
3GF630320M
THROTTLE FRICTION ASSY
20A-19
3AHQ620000
STEERING BRACKET ASSY, F25/30B, F40/50A
20A-33
3R3624430M
WASHER
20A-40
9101E35616M
BOLT & WASHER (10 MULTIPLE)
20A-37
9304030800M
NYLON NUT (10 MULTIPLE)
20A-38
9401030800M
WASHER (10 MULTIPLE)
20A-22
9401E31000M
WASHER (10 MULTIPLE)
20A-53
346621270M
BRACKET CAP
20A-5
398068300M
STOP SWITCH ASSY W/LANYARD
20A-8
3GF760200M
MAIN SWITCH
20A-10
3GF762050M
MAIN SWITCH KEY CAP
20A-9
3GF762170M
KEY-#943 (ONE KEY)
20A-9
3GF762180M
KEY-#944 (ONE KEY)
20A-9
3GF762190M
KEY-#945 (ONE KEY)
20A-34
3R3624450M
BOLT, CO-PILOT
20A-25
3GF630250M
SPACER
20A-35
3R3624481M
WASHER, CO-PILOT
20A-32
346663340M
STOPPER
20A-29
3T5064370M
TAPPING SCREW 6-16
20A-30
3AC624410M
FRICTION LEVER, D25/30B
20A-39
3AC624470M
PLATE, CO-PILOT
20A-31
3AC630120M
GRIP
20A-41
3AC636190M
COLLAR
20A-4
3AH636240M
GROMMET
20A-7
3AH726150M
PTT SWITCH ASSY
20A-18
3AH761190M
CORD ASSY, TILLER HANDLE KIT, D25/30B
20A-28
3GF620040M
CORD HOLDER
20A-36
3RS624490M
DISK, CO-PILOT
