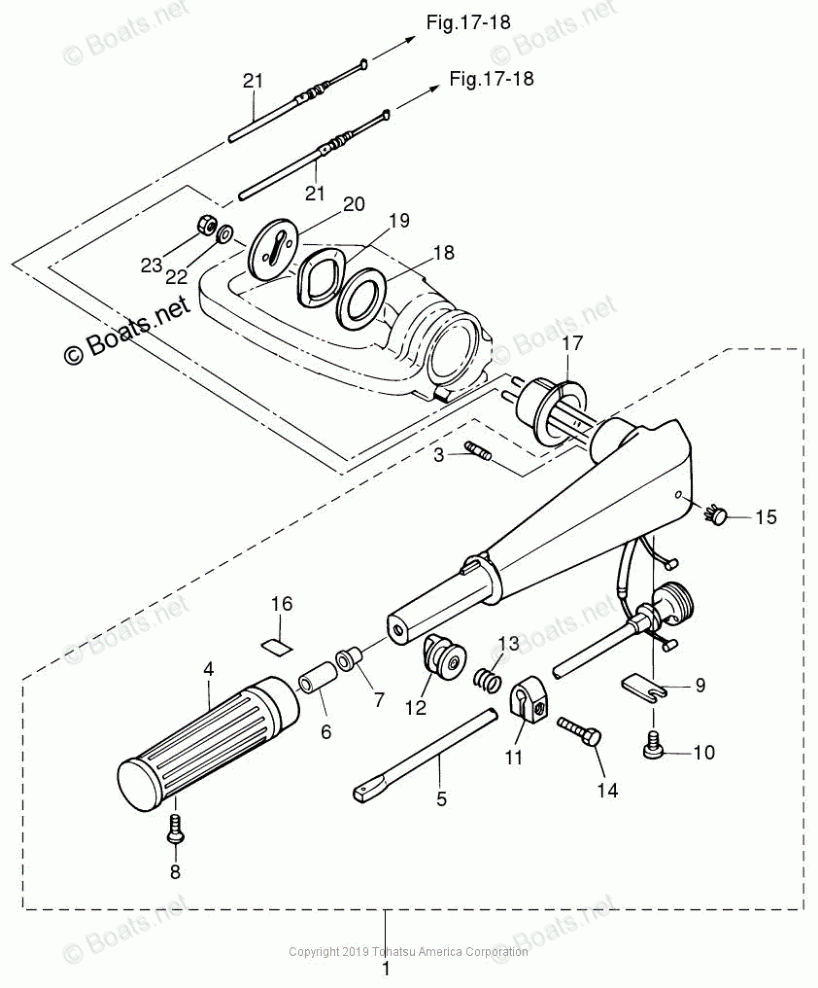

TILLER HANDLE (STANDARD)

Tohatsu MFS30C
Tohatsu
#oem кодцена
15-7
350630460M
BUSHING
15-15
350671540M
PIN
15-19
3R3631090M
WAVE WASHER
15-18
3R3631080M
WASHER
15-20
3R3631070M
PLATE, STEERING HANDLE
15-17
3R3631020M
BUSHING, HANDLE
15-5
3R3630410M
THROTTLE SHAFT
15-21
3NW636000M
THROTTLE CABLE
15-6
345630480M
FRICTION RUBBER, THROTTLE SHAFT A
15-16
3AC720190M
THROTTLE DECAL
15-10
9215030612M
SCREW (10 MULTIPLE)
15-1
3ACQ630051
TILLER HANDLE ASSY (AMB)
15-12
3V1630770M
ADJUST NUT
15-13
3V1630360M
SPRING
15-11
3V1630351M
FRICTION PIECE
15-4
3R3630120M
GRIP
15-9
3B2630630M
SUPPORTER
15-22
9401030600M
WASHER (10 MULTIPLE)
15-23
9301030600M
NUT (10 MULTIPLE)
15-14
9101030625M
BOLT (10 MULTIPLE)
15-3
3B2631041M
STUD
15-8
9218030525M
SCREW (10 MULTIPLE)
