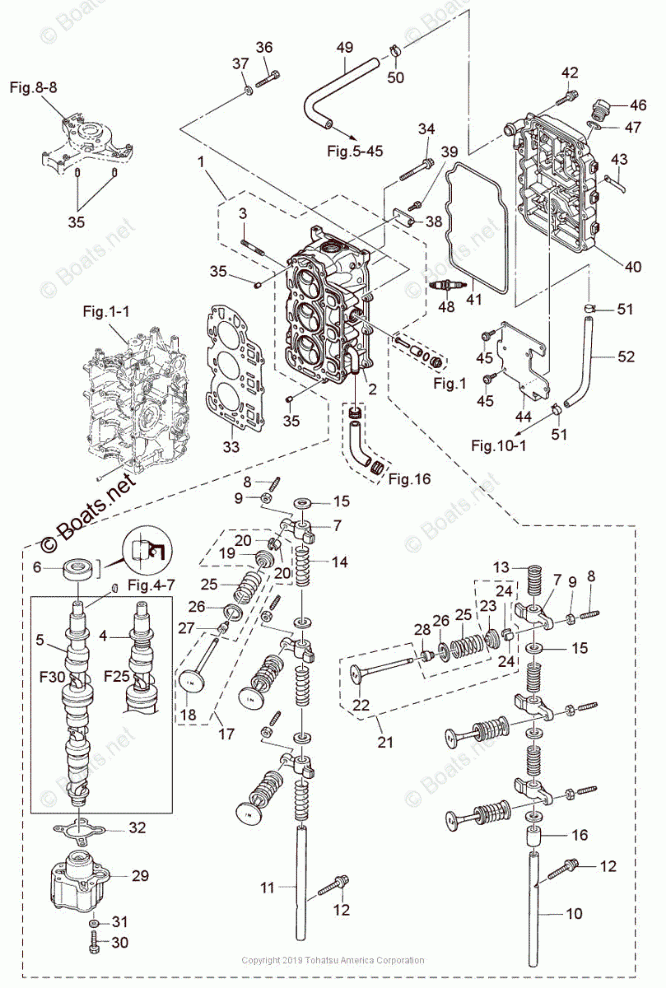

CYLINDER HEAD COVER F25/30B

CLIP @15.5

EXHAUST VALVE

ROCKER ARM

SPRING

SPRING

COLLAR, 13.1-15.9-22.5

GASKET, HEAD COVER

PLATE, CYLINDER HEAD

PLATE, BREATHER

O-RING, OIL PUMP OUTER

CLIP @15.5

BOLT (10 MULTIPLE)

EXHAUST VALVE

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

STUD

SCREW

RUBBER PIPE

CYLINDER HEAD COMPLETE, F30C

CYLINDER HEAD, F25/30C

RETAINER *{/* WHEN REPLACING 3AE079210M USE USE 3GT079210M AND 3KY079230M*/}*

RETAINER *{/* WHEN REPLACING 3AE079210M USE USE 3GT079210M AND 3KY079230M*/}*

SEAT, VALVE SPRING

INTAKE VALVE

INTAKE VALVE

OIL PUMP

SEAL, EXH VALVE STEM

FILLER CAP, ENGINE OIL

BOLT (10 MULTIPLE)

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)

DOWEL PIN 6-12

VALVE SPRING

COTTER

O-RING

SEAL, INT VALVE STEM

BOLT, CYLINDER HEAD

SHAFT, ROCKER ARM (INTAKE)

OIL SEAL

NUT

SCREW

WASHER

CLAMP

BOLT (10 MULTIPLE)

BREATHER HOSE

CYLINDER HEAD GASKET FOR BELOW SERIAL 008960AK(SEE NOTE) *{/*REQUIRES THREEBOND 1207B SEALANT TO INSTALL PART #999981207B*/}*

CAMSHAFT

SHAFT, ROCKER ARM (EXHAUST)

SEAT, VALVE SPRING
