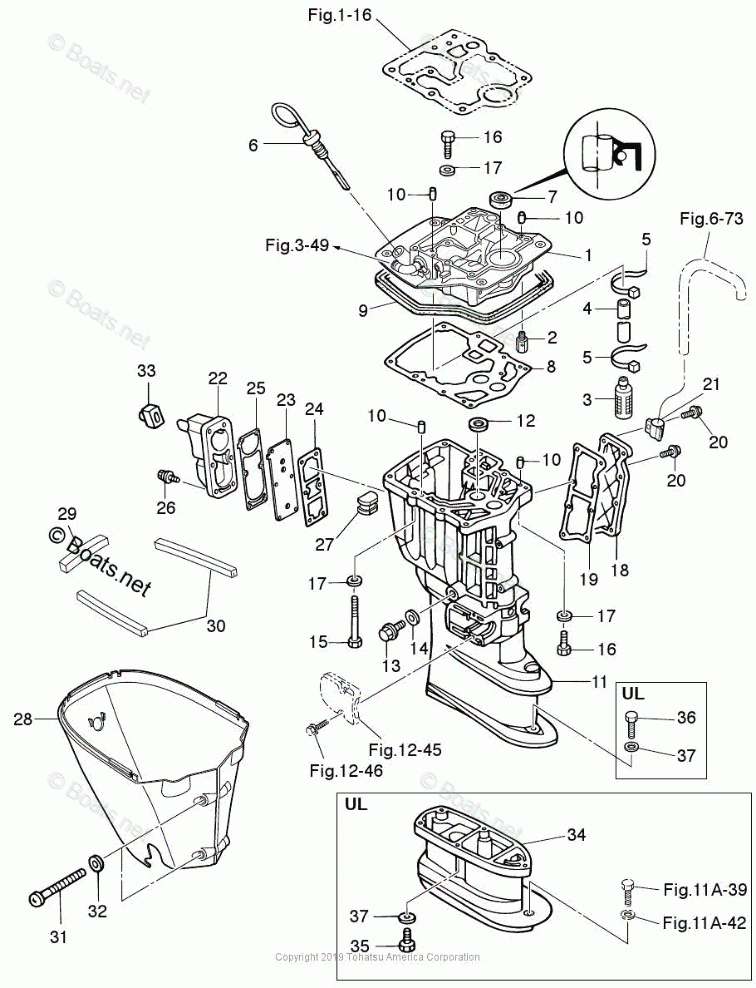

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS30C
Tohatsu
#oem кодцена
10-7
346012150M
OIL SEAL, DRIVE SHAFT
10-33
3NV612120M
GROMMET, APRON
10-27
3AC611820M
GROMMET
10-31
3AC612170M
TAPPING SCREW
10-25
3AC612201M
GASKET, IDLE EXHAUST PORT COVER
10-23
3AC621140M
PLATE
10-15
3B7610173M
BOLT 8-105
10-29
3F3672131M
SEAL RUBBER, FILLER LID
10-8
3R0610120M
GASKET, DRIVE SHAFT HOUSING
10-4
98AH951000M
HOSE
10-16
3R0610171M
BOLT
10-19
3R0610290M
GASKET, DRAIN COVER
10-24
3R0612070M
GASKET, IDLE PORT
10-12
3R0652070M
PLATE, WATER PIPE
10-3
3R3077101M
OIL STRAINER
10-30
3T1612130M
APRON SEAL
10-36
9161E30845M
BOLT
10-6
3AC074210M
OIL LEVEL GAUGE
10-35
9161E30835M
BOLT (10 MULTIPLE)
10-34
346Q611105
EXTENSION HOUSING UL
10-18
3R0Q610280
DRAIN COVER NLA *{/* PART IS NO LONGER AVAILABLE*/}*
10-22
3ACQ612080
COVER, IDLE EXHAUST PORT
10-11
3AEQ611912
DRIVE SHAFT HOUSING S
10-11
3AEQ611923
DRIVE SHAFT HOUSING L
10-28
3NVQ612100
APRON
10-37
3P0662330M
WASHER (10 MULTIPLE)
10-9
3R0671160M
SEAL RUBBER, ENGINE BASE
10-26
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-2
3V2076200M
PLUNGER
10-20
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-17
9401030800M
WASHER (10 MULTIPLE)
10-10
345011110M
DOWEL PIN 6-12
10-32
9401E30600M
WASHER (10 MULTIPLE)
10-21
345069150M
CORD CLAMP A
10-14
3R3074060M
WASHER (10 MULTIPLE)
10-13
3R3077051M
DRAIN BOLT (14mm-1.50 pitch)
10-1
3NWB013000
ENGINE BASE
