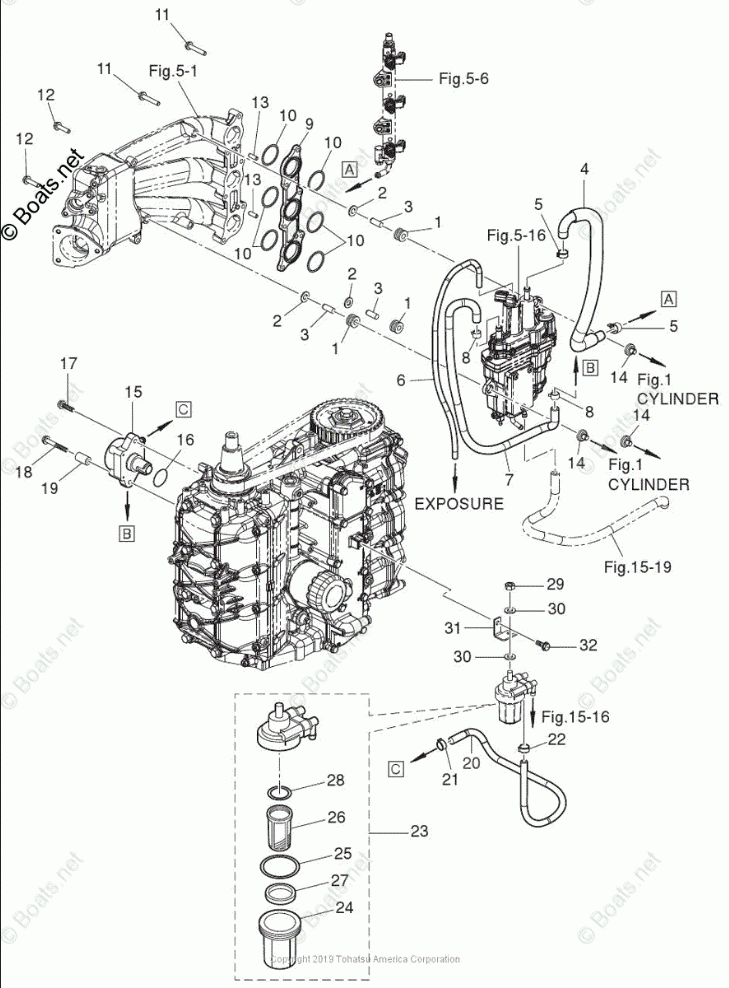

Fuel System Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS40A (2019)

Fuel System

Tohatsu MFS40A

oem код

название

цена

6-26

3B7022340M

FILTER

6-3

3KY010800M

PIN, 8-22

6-27

3T5022290M

FLOAT

6-16

3KY624150M

O-RING

6-14

3KY101550M

BUSHING

6-7

3KY040850M

LOW PERMEATION HOSE, 30-430-45

6-7

3KY040770M

FUEL HOSE, 7-12

6-20

3KY040600M

LOW PERMEATION HOSE (L=445MM)

6-15

3KY040000M

FUEL PUMP ASSY

6-9

3KY039520M

INSULATOR

6-19

3KY026050M

SPACER, 6.5-13-22

6-31

3KY022390M

PLATE

6-20

3KY022110M

FUEL HOSE (L=445MM)

6-6

3KY022030M

FUEL HOSE

6-4

3KY021650M

FUEL HOSE W/ PROTECTOR, 80-200-55

6-10

3KY020120M

O-RING, 1.9-33.2

6-13

3B2011110M

KNOCK

6-25

3B7022350M

O-RING A

6-29

9301030800M

NUT (10 MULTIPLE)

6-28

3B7022360M

O-RING B

6-24

3B7022370M

CUP

6-23

3T5022300M

FUEL FILTER ASSY

6-17

9101E35625M

BOLT & WASHER (10 MULTIPLE)

6-12

9101E35625M

BOLT & WASHER (10 MULTIPLE)

6-11

9101E35635M

BOLT & WASHER (10 MULTIPLE)

6-30

9401030800M

WASHER (10 MULTIPLE)

6-1

3KY069200M

RUBBER MOUNT

6-2

9401030800M

WASHER (10 MULTIPLE)

6-22

3GT351430M

CLIP, @ 9.4

6-32

9101E35612M

BOLT & WASHER (10 MULTIPLE)

6-8

345701141M

CLIP

6-21

345701141M

CLIP

6-5

3AC100870M

CLAMP

6-18

9101035645M

BOLT
