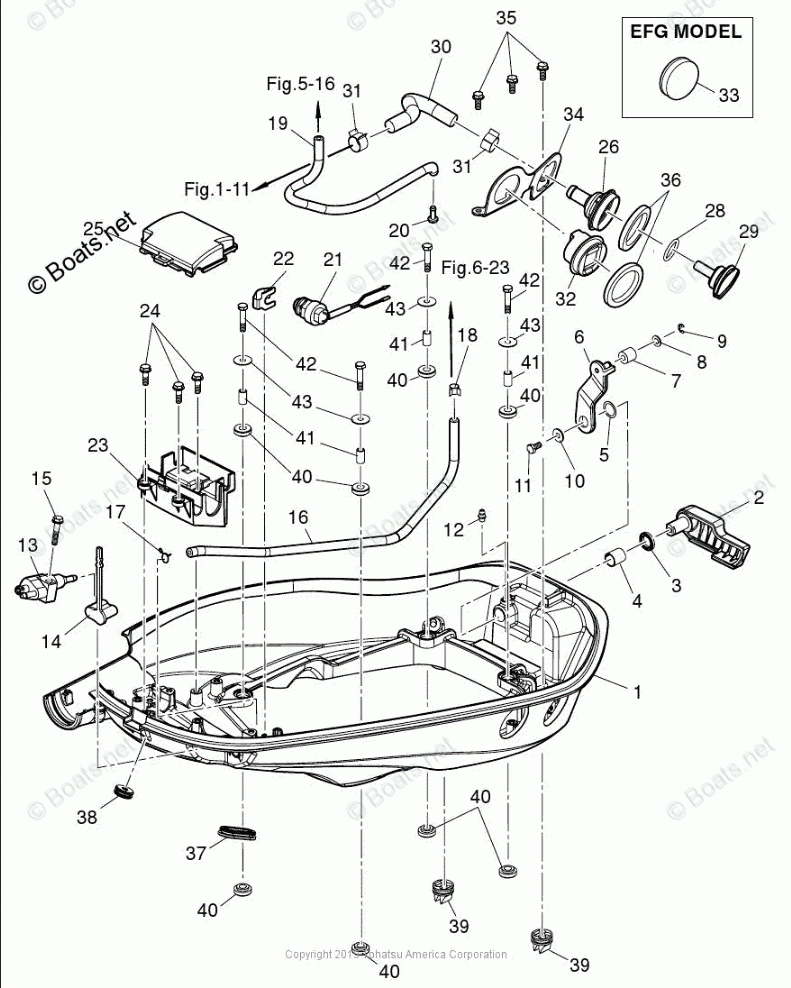

BOTTOM COWL

Tohatsu MFS40A
Tohatsu
#oem кодцена
15-13
394702600M
FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50
15-29
3T1724040M
CAP, FLUSHING CONNECTOR
15-10
3R0663080M
WASHER, 6-16-1.5
15-4
350671050M
BUSHING, HOOK LEVER
15-32
3AC726150M
PTT SWITCH
15-38
3KY671170M
GROMMET, TRIM SENDER
15-33
3KY726180M
GROMMET, PTT SWITCH
15-7
3R0675170M
ROLLER
15-20
3T1011380M
WATER NIPPLE
15-26
3T1724030M
FLUSHING CONNECTOR
15-16
3KY040550M
LOW PERMEATION HOSE L=450MM
15-36
3F3726161M
GASKET, PTT SWITCH NS70B, D40/50B2
15-23
3KY062810M
CABLE TERMINAL HOLDER
15-19
3KY652120M
WATER HOSE
15-2
3KY671410M
HOOK LEVER
15-6
3KY671420M
COVER HOOK
15-30
3KY724100M
FLUSHING HOSE
15-34
3KY724130M
FLUSHING CONNECTOR BRACKET
15-25
3KZ069020M
COVER
15-39
3T1671610M
GROMMET
15-21
3NV760800M
NEUTRAL SWITCH
15-40
346671130M
MOUNT RUBBER
15-1
3KYQ671000
BOTTOM COWL
15-8
346671150M
WASHER
15-1
3KYW671000
BOTTOM COWL (WHITE)
15-11
9101030616M
BOLT (10 MULTIPLE)
15-15
9101035630M
BOLT (10 MULTIPLE)
15-42
9101E30630M
BOLT (10 MULTIPLE)
15-35
9101E35616M
BOLT & WASHER (10 MULTIPLE)
15-24
9101E35620M
BOLT & WASHER (10 MULTIPLE)
15-16
98AB501000M
FUEL PIPE 5MM (3/16") (1 EA.=1 METER)
15-17
338022150M
CLIP, FUEL PIPE
15-43
346671150M
WASHER
15-9
9453030500M
E-RING (10 MULTIPLE)
15-18
3GT351430M
CLIP, @ 9.4
15-28
3R0074220M
O-RING
15-3
338671470M
SEAL RING
15-12
344671771M
GREASE NIPPLE
15-41
346671141M
SPACER
15-22
398760830M
ACTUATOR, NEUTRAL SWITCH
15-37
3BJ662260M
GROMMET, SHIFT ROD
15-14
3H6702620M
PROTECTOR, FUEL CONN
15-5
9414031400M
WAVE WASHER (10 MULTIPLE)
15-31
3T1077371M
CLIP 17.8
