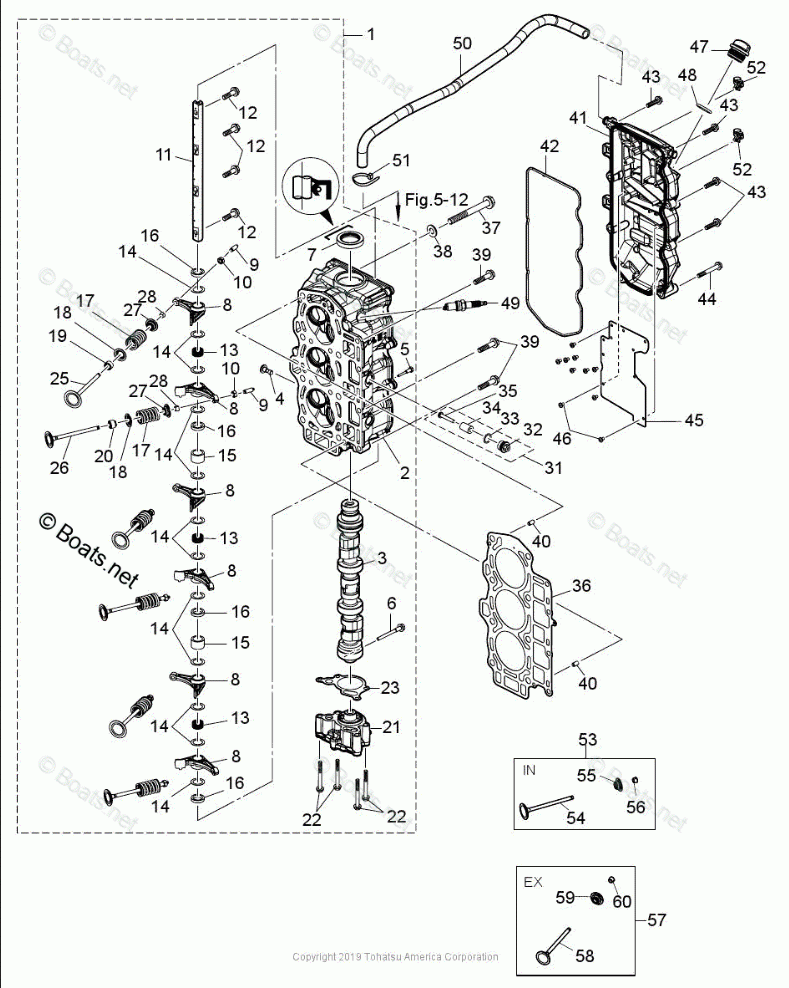

CYLINDER HEAD & OIL PUMP

Tohatsu MFS40A
Tohatsu
#oem кодцена
3-41
3KYB010200
CYLINDER HEAD COVER
3-8
3KY079350M
ROCKER ARM
3-26
3KY079020M
EXHAUST VALVE
3-58
3KY079020M
EXHAUST VALVE
3-17
3KY079030M
VALVE SPRING
3-18
3KY079050M
VALVE SPRING SEAT
3-11
3KY079200M
ROCKER ARM SHAFT
3-59
3KY079210M
RETAINER
3-55
3KY079210M
RETAINER
3-27
3KY079210M
RETAINER
3-12
3KY079220M
ROCKER SHAFT BOLT
3-13
3KY079250M
ROCKER SHAFT SPRING
3-14
3KY079270M
WASHER
3-15
3KY079390M
COLLAR, 16-21.7-14.25
3-25
3KY079010M
INTAKE VALVE
3-6
3KY079500M
THRUST BOLT
3-4
3KY079600M
LIFTER
3-5
3KY079620M
LIFTER BOLT
3-1
3KYB010001
CYLINDER HEAD, COMPLETE MFS40A/50A
3-16
3KZ079390M
COLLAR, 16-21.7-4.25
3-44
9101035645M
BOLT
3-46
9215210408M
SCREW (10 MULTIPLE)
3-49
970101105M
SPARK PLUG, NGK DCPR6EIX, (4 MULTIPLE) *{/*MFS40/50/60A*/}*
3-53
3KY078951M
INTAKE VALVE KIT
3-57
3KY078961M
EXHAUST VALVE KIT
3-22
9101035650M
BOLT
3-54
3KY079010M
INTAKE VALVE
3-3
3KY078100M
CAMSHAFT ASSY
3-47
3R0710151M
FILLER CAP, ENGINE OIL
3-9
3R0072380M
SCREW
3-43
9101E35625M
BOLT & WASHER (10 MULTIPLE)
3-40
345011110M
DOWEL PIN 6-12
3-56
3KY079230M
COTTER
3-60
3KY079230M
COTTER
3-28
3KY079230M
COTTER
3-48
3R0074220M
O-RING
3-19
3R3072040M
SEAL, INT VALVE STEM
3-20
3R3072060M
SEAL, EXH VALVE STEM
3-39
3BJ610171M
BOLT
3-10
3H8072370M
NUT
3-52
3KY843980M
BAND
3-51
3T5843980M
LEAD WIRE BAND, 104
3-50
3KY077350M
BREATHER HOSE
3-7
3V1001210M
OIL SEAL
3-32
3P0011430M
ANODE PLUG
3-34
3P0602180M
ANODE
3-33
3T5100460M
O-RING
3-35
9215030530M
SCREW (10 MULTIPLE)
3-36
3KY010050M
CYLINDER HEAD GASKET
3-37
3KY010130M
CYLINDER HEAD BOLT
3-42
3KY010240M
CYLINDER HEAD COVER GASKET
3-21
3KY076000M
OIL PUMP ASSY
3-23
3KY076530M
OIL PUMP GASKET
3-45
3KY077310M
BREATHER CHAMBER COVER
3-31
3KM011420M
ANODE PLUG ASSY
