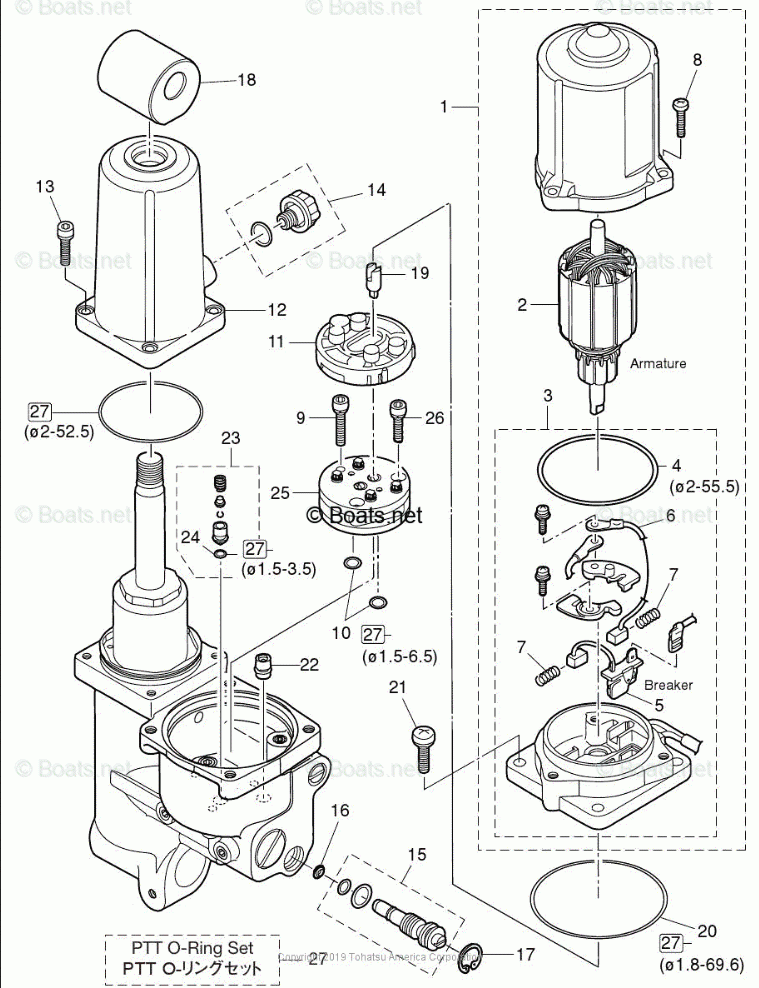

POWER TRIM & TILT Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS60A (2019)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2019
MFS60A
POWER TRIM & TILT
POWER TRIM & TILT

POWER TRIM & TILT

Tohatsu MFS60A

POWER TRIM & TILT

#

oem код

название

цена

14-16

SEAL WASHER

SEAL WASHER

14-15

MANUAL VALVE ASSY

MANUAL VALVE ASSY

14-22

VALVE ASSY

VALVE ASSY

14-23

RELIEF VALVE ASSY

RELIEF VALVE ASSY

14-18

JOINT

JOINT

14-27

O-RING SET

O-RING SET

14-14

CAP ASSY

CAP ASSY

14-21

SCREW

SCREW

14-3

MOTOR BRACKET ASSY

MOTOR BRACKET ASSY

14-5

BREAKER

BREAKER

14-2

ARMATURE ASSY

ARMATURE ASSY

14-4

O-RING, 2-55.5

O-RING, 2-55.5

14-1

MOTOR, PTT

MOTOR, PTT

14-19

COUPLING

COUPLING

14-9

BOLT

BOLT

14-12

RESERVOIR TANK

RESERVOIR TANK

14-13

BOLT

BOLT

14-20

O-RING

O-RING

14-17

C-RING

C-RING

14-10

O-RING

O-RING

14-24

O-RING

O-RING

14-7

SPRING, BRUSH

SPRING, BRUSH

14-6

BRUSH

BRUSH

14-25

PUMP- NO LONGER AVAILABLE *{/* NO LONGER AVAILABLE*/}*

PUMP- NO LONGER AVAILABLE *{/* NO LONGER AVAILABLE*/}*

14-11

FILTER B

FILTER B

14-26

BOLT

BOLT

14-8

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)
