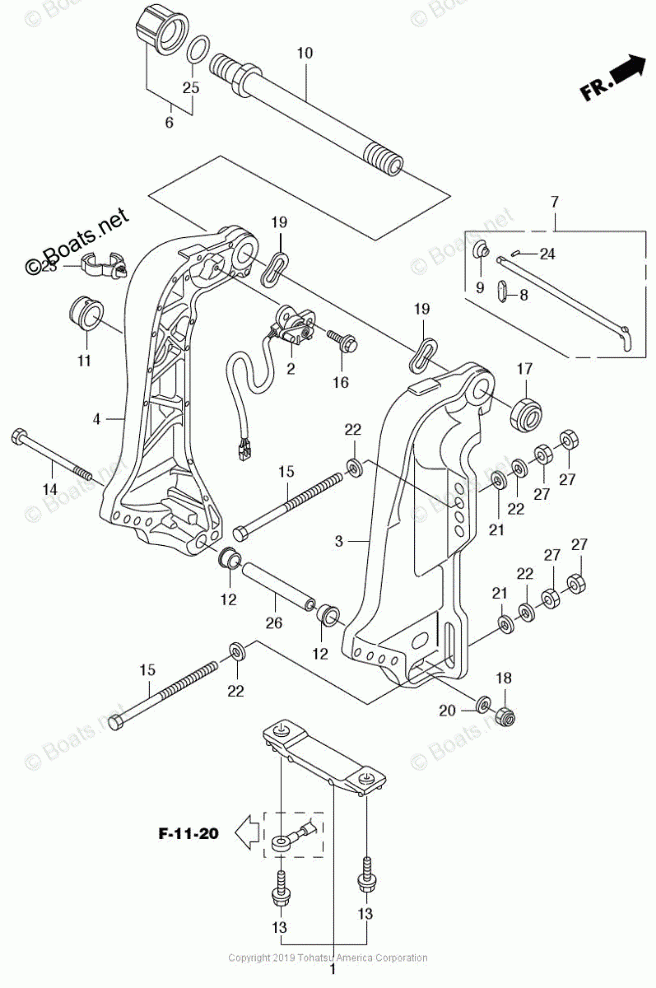

Stern Bracket

Tohatsu BFT60A

Stern Bracket

#

oem код

название

цена

F-10-23

CLIP, WIRE HARN

CLIP, WIRE HARN

F-10-22

WASHER, PLAIN 12MM

WASHER, PLAIN 12MM

F-10-15

BOLT, HEX, 12 X 119

BOLT, HEX, 12 X 119

F-10-10

SHAFT COMP., TILT

SHAFT COMP., TILT

F-10-4

HZZ3-50311-000ZC

BRACKET, L. STERN

BRACKET, L. STERN

F-10-3

HZZ3-50301-010ZC

BRACKET, R. STERN

BRACKET, R. STERN

F-10-2

SENSOR ASSY., TRIM ANGLE

SENSOR ASSY., TRIM ANGLE

F-10-13

BOLT, FLANGE, 6X23

BOLT, FLANGE, 6X23

F-10-18

NUT, FLANGE, 10MM

NUT, FLANGE, 10MM

F-10-26

COLLAR, DISTANCE, 10X90

COLLAR, DISTANCE, 10X90

F-10-25

O-RING, 15.54X2.26

O-RING, 15.54X2.26

F-10-21

WASHER, PLAIN, 12MM

WASHER, PLAIN, 12MM

F-10-9

SPRING, ADJUST ROD

SPRING, ADJUST ROD

F-10-19

WASHER, WAVE, 26MM

WASHER, WAVE, 26MM

F-10-17

NUT, SELF-LOCK(7/8-14UNF)

NUT, SELF-LOCK(7/8-14UNF)

F-10-14

BOLT, HEX., 10X158

BOLT, HEX., 10X158

F-10-12

BUSHING, LOWER CYLINDER

BUSHING, LOWER CYLINDER

F-10-11

BUSHING, MOTOR CODE

BUSHING, MOTOR CODE

F-10-6

CAP ASSY

CAP ASSY

F-10-1

METAL KIT, ANODE

METAL KIT, ANODE

F-10-16

BOLT, FLANGE 6X16 (SUS-D)

BOLT, FLANGE 6X16 (SUS-D)

F-10-27

HCO-94001-12490-0S

NUT, HEX 12MM

NUT, HEX 12MM

F-10-20

WASHER, PLAIN, 10MM

WASHER, PLAIN, 10MM

F-10-7

ROD COMP., ADJUSTING

ROD COMP., ADJUSTING
