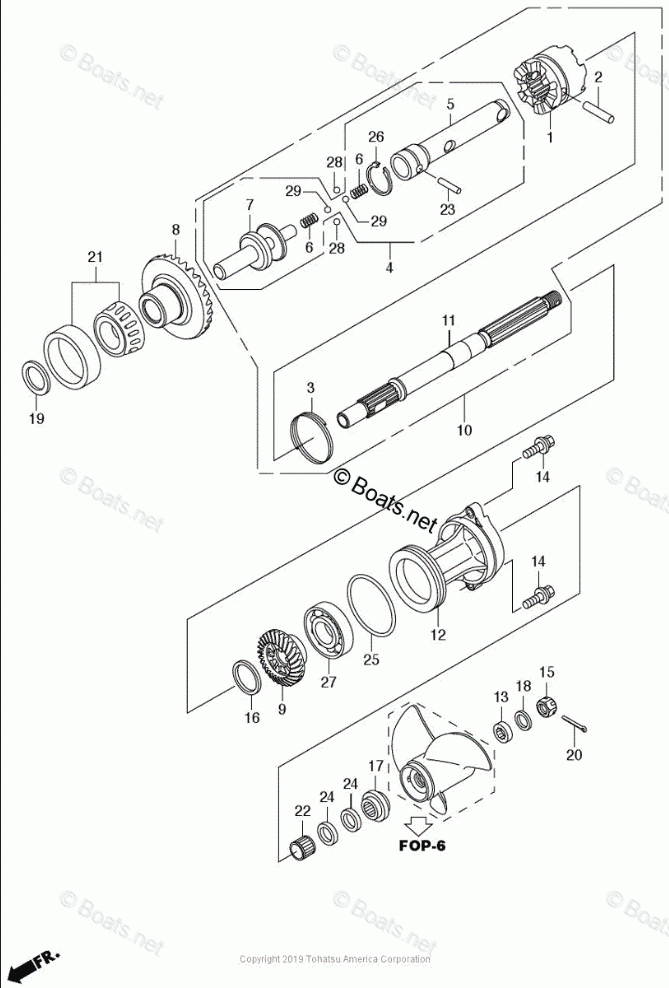

PROPELLER SHAFT (60A-STD. MODEL)

Tohatsu BFT60A
Tohatsu
#oem кодцена
F-5-27
HCO-96100-60070-00
BEARING, RADIAL BALL 6007
F-5-24
HZW4-91252-003
SEAL, WATER 22X35X7
F-5-26
HZZ3-91451-000
CIRCLIP, 14MM
F-5-25
HZZ3-91352-000
O-RING, 76.5X3
F-5-12
HZZ3-41201-000ZD
HOUSING, PROP SHAFT (BFT60)
F-5-11
HZZ3-41161-000
SHAFT, PROPELLER, BFT60A (13-SPLINE) *{/*13-SPLINE*/}*
F-5-10
HZZ3-41160-000
SHAFT ASSY, PROPELLER, BFT60A
F-5-9
HZZ3-41151-000
BEVEL GEAR, REVERSE (29T)
F-5-8
HZZ3-41140-000
BEVEL GEAR, FORWARD (29T)
F-5-7
HZZ3-24124-000
PLATE, SHIFT
F-5-6
HZZ3-24123-000
SPRING, SHIFT
F-5-5
HZZ3-24122-000
SLIDER, SHIFT
F-5-4
HZZ3-24113-000
SLIDER ASSY, SHIFT
F-5-1
HZZ3-24101-000
SHIFTER, CLUTCH BFT60A
F-5-14
HZY6-90105-000
BOLT-WASHER, 8X30
F-5-23
HZW1-91101-003
ROLLER, 3X12.8
F-5-28
HCO-96211-06000
BALL, STEEL 6
F-5-22
HZV5-91053-003
BEARING, NEEDLE 22X28X20
F-5-20
HZV5-90758-000
SPLIT PIN, 4.0
F-5-19
HZV5-90531-000
SHIM, D (51X57X0.50)
F-5-19
HZV5-90530-000
SHIM, C (51X57X0.30)
F-5-19
HZV5-90529-000
SHIM, B (51X57X0.15)
F-5-19
HZV5-90528-000
SHIM, A (51X57X0.10)
F-5-18
HZV5-90508-000
WASHER, 17MM
F-5-17
HZV5-90506-020
WASHER, PROP THRUST
F-5-16
HZV5-90503-000
WASHER, 22MM
F-5-15
HZV5-90301-000
NUT, CASTLE 16MM
F-5-13
HZV5-58151-000
SPACER, 10MM
F-5-3
HZV5-24103-000
RING, CROSS PIN
F-5-2
HZV5-24102-000
PIN, SHIFTER, 6.3 X 33
F-5-29
HCO-96211-07000
BALL, STEEL 7
F-5-21
HZZ5-91051-003
BEARING, 32X58X17
