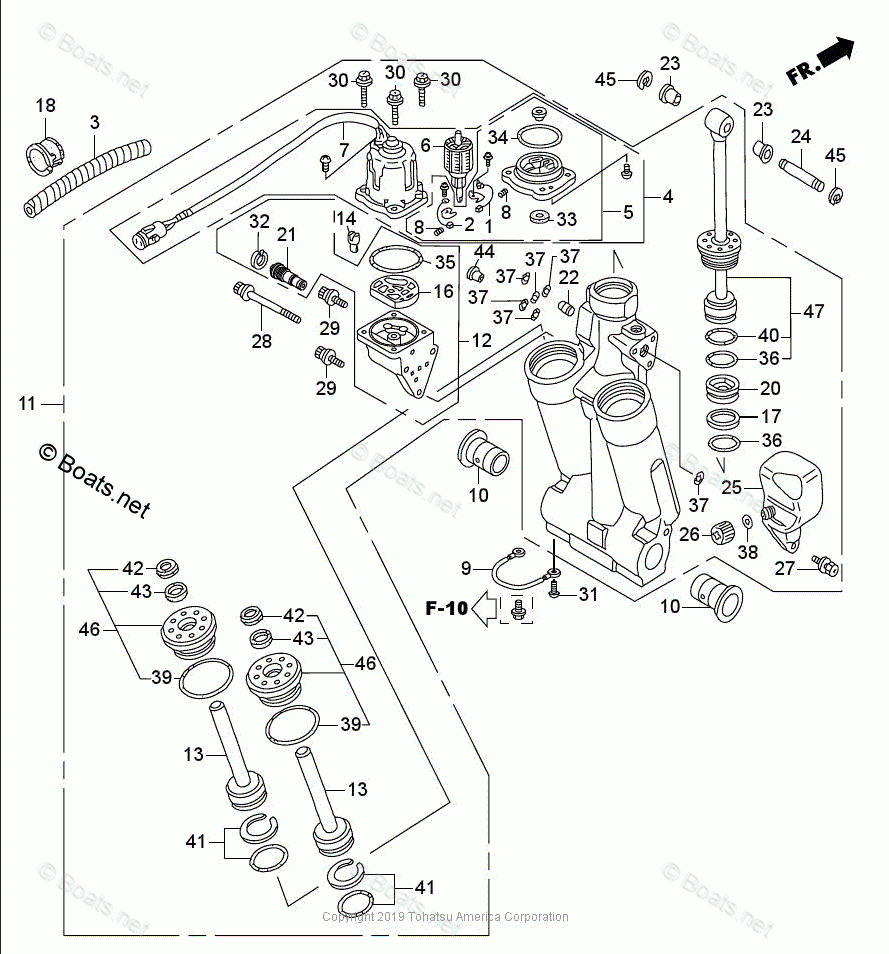

POWER TRIM & TILT

Tohatsu BFT75AK1
Tohatsu
#oem кодцена
F-11-45
HCO-94540-15029
E-RING, 15MM
F-11-41
HZW1-91357-701
O-RING SET, 3.5X31.7
F-11-32
HZW1-90652-702
CIRCLIP, INTERNAL
F-11-34
HZW1-91207-013
O-RING, 2.0X70.5
F-11-37
HZW1-91352-702
O-RING, 1.8X7.7
F-11-38
HZW1-91353-703
O-RING, 1.9X11
F-11-39
HZW1-91354-701
O-RING, 3.5X35.7
F-11-40
HZW1-91355-701
O-RING, 3.5X41.7
F-11-43
HZW1-91361-701
PACKING
F-11-29
HZW1-90115-702
BOLT, SOCKET (B)
F-11-44
HZW1-91557-701
COLLAR, ORIFICE
F-11-9
HZY3-40219-013
WIRE, LEAD (1.5X116MM)
F-11-46
HZY9-56115-023
GUIDE, ROD
F-11-47
HZY9-56120-013
ROD ASSY, PISTON
F-11-5
HZX2-36122-013
BRACKET ASSY
F-11-4
HZY9-36120-013
MOTOR ASSY,POWER TILT
F-11-30
HZW1-90116-702
BOLT, HEX
F-11-28
HZW1-90114-702
BOLT, SOCKET (A)
F-11-8
HZV5-36136-821
SPRING, MOTOR
F-11-35
HZV5-91302-821
O-RING, 1.8X69.6
F-11-10
HZV5-50214-003
BUSHING, SWIVEL CASE
F-11-17
HZV5-56117-821
RING, BACK UP
F-11-18
HZV5-56118-820
BUSHING, MOTOR CODE
F-11-23
HZV5-56513-000
BUSHING, LOWER CYLINDER
F-11-31
HZV5-90119-000
SCREW, PAN, 6X8
F-11-33
HZV5-91203-821
OIL SEAL
F-11-36
HZV5-91316-821
O-RING, 3.5X38.7
F-11-27
HZW1-90113-702
BOLT, RECESSED
F-11-13
HZW1-56110-701
ROD COMP, PISTON (B)
F-11-14
HZW1-56113-701
JOINT, DRIVE
F-11-16
HZW1-56116-701
FILTER B
F-11-20
HZW1-56130-702
PISTON COMP, FREE
F-11-22
HZW1-56180-701
VALVE COMP, RESERVOIR
F-11-25
HZW1-56851-703
TANK, OIL
F-11-26
HZW1-56860-701
CAP COMP, OIL TANK
F-11-11
HZY9-56000-043
TRIM-TILT ASSY, POWER (BFT75/90)
