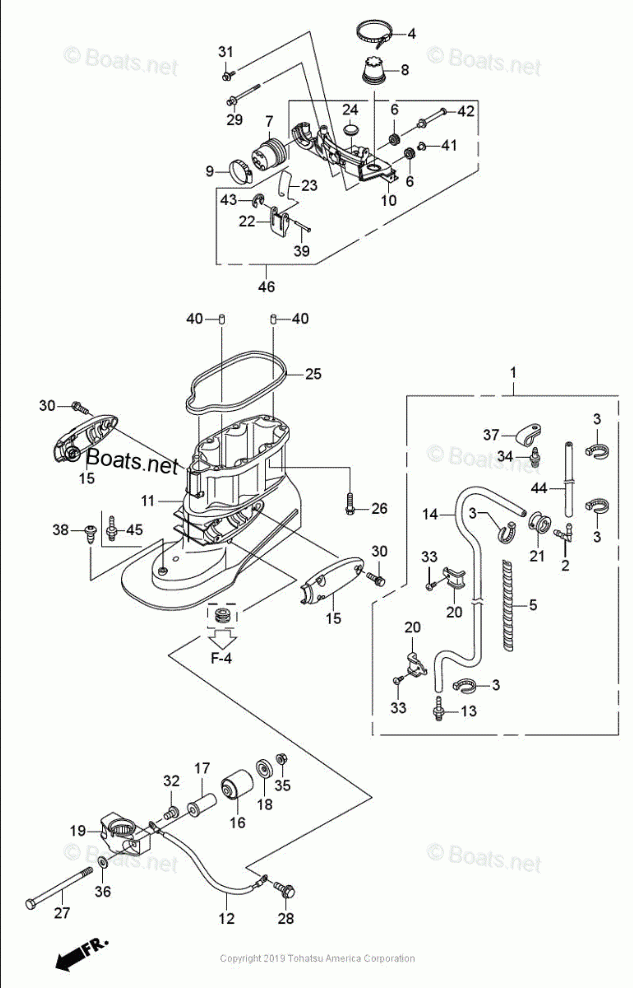

Extension Case

Tohatsu BFT75AK1
Tohatsu
#oem кодцена
F-3-37
H750-90628-000
CLIP, (14MM)
F-3-18
HZY9-50157-000
STOPPER, LOWER MOUNT
F-3-30
HZY6-90105-000
BOLT-WASHER, 8X30
F-3-1
HZY9-06411-010
TUBE KIT, SPEED SENSOR
F-3-7
HZY9-40105-000
GROMMET, REMOTE CONTROL CABLE
F-3-10
HZY9-40154-000ZC
BRACKET, UNDER COVER FRONT
F-3-11
HZY9-40201-020ZC
CASE, EXTENSION
F-3-14
HZY9-41173-000
TUBE, SPEED SENSOR
F-3-15
HZY9-50111-000ZC
HOUSING, LOWER MOUNTING
F-3-22
HZY9-63232-010
LEVER, FASTENER
F-3-21
HZY6-56118-000
BUSHING, MOTOR CODE
F-3-23
HZY9-63237-000
WIRE, FASTENER
F-3-25
HZY9-63719-000
SEAL B, COVER UNDER
F-3-27
HZY9-90102-000
BOLT, HEX., 12X186
F-3-29
HZY9-90104-000
BOLT-WASHER, 6X95
F-3-31
HZY9-90105-000
BOLT-WASHER, 6X27
F-3-39
HZY9-90754-000
PIN, 5X44.5
F-3-42
HZY9-91553-000
COLLAR, FR. BRACKET
F-3-16
HZZ0-50155-000
MOUNT, LOWER RUBBER
F-3-26
HZY6-90002-000
BOLT, FLANGE, 10X40
F-3-20
HZY6-50209-000
PLATE, SPEED SENSOR TUBE
F-3-43
HCO-94540-04029
E RING 4
F-3-32
HZV5-90119-000
SCREW, PAN, 6X8
F-3-44
HCO-95005-5095030
TUBE 5X950
F-3-2
HGE1-17357-670
JOINT A, BREATHER
F-3-3
HKM3-32161-003
BAND WIRE
F-3-4
HMG9-35701-950
BAND, TY-RAP
F-3-24
HZC0-63515-700
CAP, L. SIDE COVER
F-3-6
HZV5-40102-000
GROMMET, UNDER CASE
F-3-45
HZV5-41172-000
NIPPLE, SENSOR
F-3-13
HZV5-41172-000
NIPPLE, SENSOR
F-3-33
HZV5-90119-000
SCREW, PAN, 6X8
F-3-5
HZY6-36104-003
TUBE, SPIRAL
F-3-34
HZV5-90127-003
SCREW, RIVET, 5X10
F-3-40
HZV5-90756-000
DOWEL PIN, 6X10
F-3-8
HZW1-40107-700
GROMMET, UNDER CASE (C)
F-3-19
HZW1-50161-020ZC
HOUSING, LOWER CENTER MOUNTING
F-3-36
HZW1-90559-000
WASHER, PLAIN, 12MM
F-3-35
HZW5-90302-003
NUT, FLANGE, 12MM
F-3-28
HZW9-90103-010
BOLT, FLANGE, 6X12
F-3-9
HZY3-40119-003
BAND, UNDER CASE GROMMET
F-3-38
HZZ3-90651-003
CLIP, (7MM)
