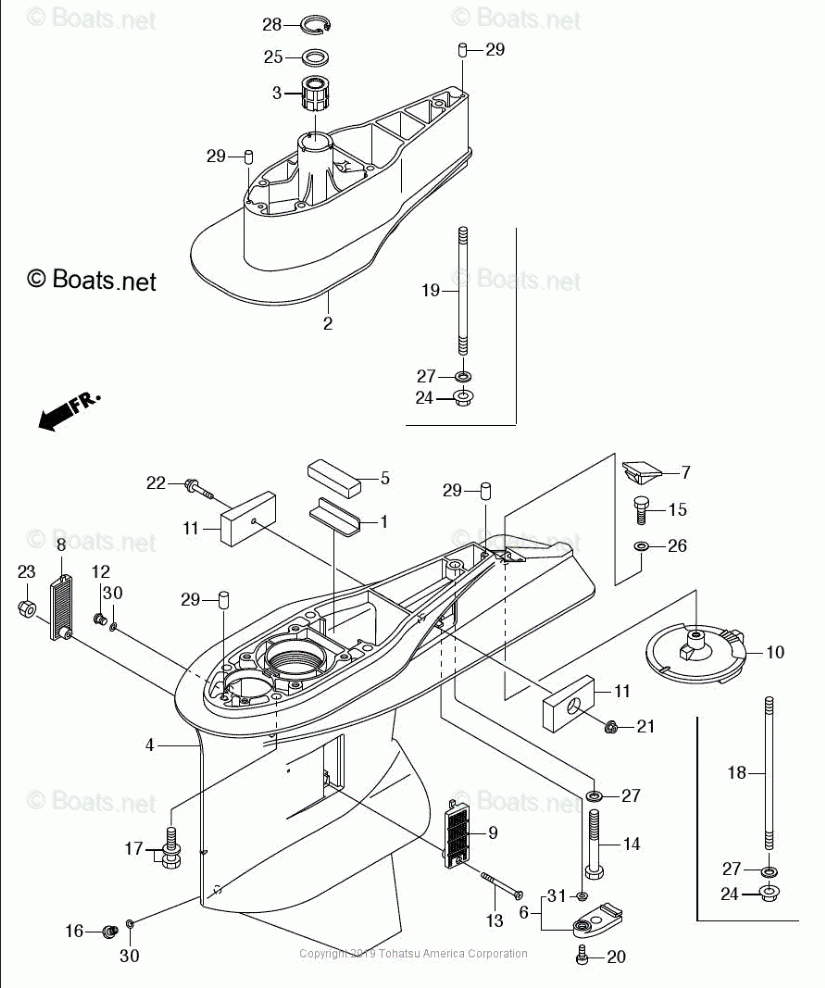

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu BFT75AK1
Tohatsu
#oem кодцена
F-3-10-22
HHW1-90225-670
BOLT, FLANGE 6X35 (SUS)
F-3-10-30
HZW4-91301-003
O-RING 6.9X1.45
F-3-10-13
HZZ0-90101-000
SCREW, FLAT, 5X55
F-3-10-10
HZZ0-41107-000ZD
TAB, TRIM
F-3-10-9
HZZ0-41105-010
SCREEN, L. WATER, BFT75/90A, BFTW60A
F-3-10-8
HZZ0-41104-010
SCREEN, R. WATER, BFT75/90A, BFTW60A
F-3-10-7
HZZ0-41103-000
GROMMET, GEAR CASE
F-3-10-6
HZZ0-41102-000
COVER B, GEAR CASE
F-3-10-4
HZY9-41101-H00ZB
CASE, GEAR (AMB) BFT75/90A
F-3-10-17
HZY6-90123-000
BOLT W/WASHER 10 X 40
F-3-10-31
HZY3-91556-000
COLLAR, DISTANCE, 6.5X9X3
F-3-10-20
HZY3-90133-000
BOLT, SOCKET, 6X16
F-3-10-16
HZY3-90120-000
BOLT, DRAIN PLUG
F-3-10-21
HZY1-90205-000
NUT, SELF-LOCK, 6MM
F-3-10-12
HZW9-90101-003
BOLT, OIL CHECK
F-3-10-28
HZW1-90651-710
CIRCLIP, INTERNAL, 40
F-3-10-23
HZV4-90302-000
NUT, SELF-LOCK, 5MM
F-3-10-25
HZW1-90501-710
WASHER, 26MM
F-3-10-19
HZW1-90125-910
BOLT, STUD (10X164)
F-3-10-18
HZW1-90124-910
BOLT, STUD (10X202)
F-3-10-14
HZW1-90104-900
BOLT, HEX., 10X80
F-3-10-11
HZW1-41109-B00
ANODE, METAL, GEAR CASE
F-3-10-5
HZW1-41102-B00
GROMMET, GEAR CASE
F-3-10-3
HZW1-40210-710
BUSHING, VERTICAL SHAFT
F-3-10-1
HZW1-19286-B00
PLATE, RUBBER SETTING
F-3-10-29
HZV5-90756-000
DOWEL PIN, 6X10
F-3-10-27
HZV5-90563-000
WASHER, PLAIN, 10MM
F-3-10-24
HZV5-90306-003
NUT, SELF-LOCK, 10MM
F-3-10-15
HZV5-90115-000
BOLT, HEX., 8X25
F-3-10-26
HZV4-90507-000
WASHER, PLAIN, 8MM
F-3-10-2
HZY9-40202-H50ZA
SEPARATOR, EXTENSION (XL)
