  6. SILENCER CASE + THROTTLE BODY

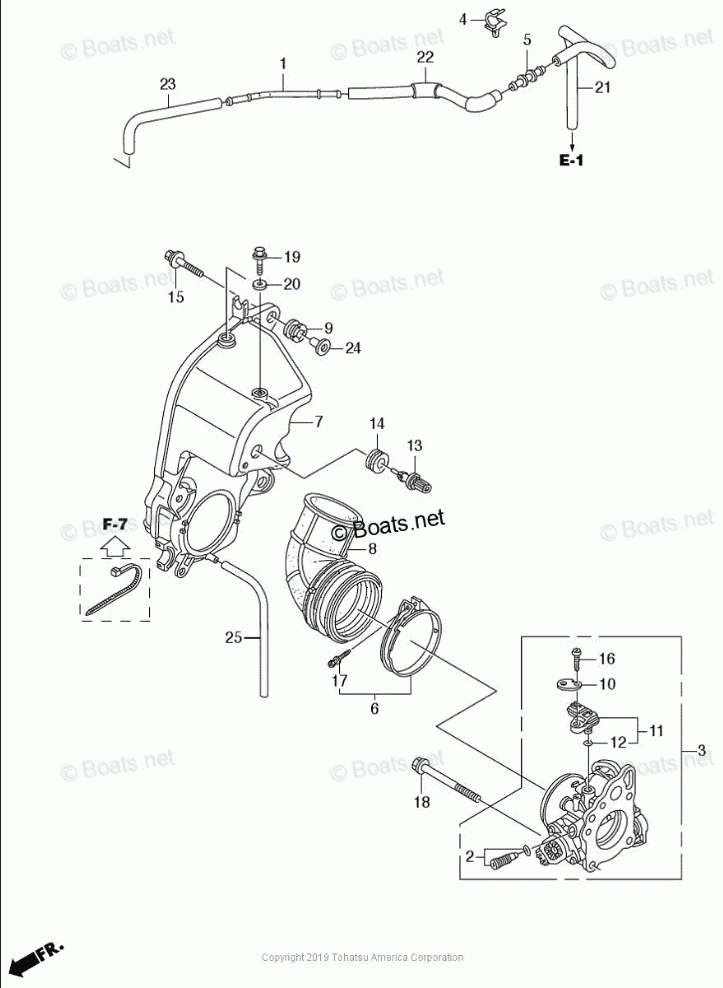

SILENCER CASE + THROTTLE BODY

Tohatsu BFT90AK1
Tohatsu
#oem кодцена
E-15-25
HCO-95003-0701931
V TUBE 4X7X190
E-15-4
HZY9-16896-003
CLAMP B, FUEL TUBE
E-15-6
HZY9-17315-M00
BAND, AIR FLOW
E-15-23
HZY9-91405-000
TUBE C, BREATHER
E-15-22
HZY9-91404-000
TUBE B, BREATHER
E-15-21
HZY9-91403-000
TUBE A, BREATHER
E-15-17
HZY9-90017-000
BOLT-WASHER, 5X30
E-15-9
HZY9-30419-003
GROMMET, ELECTRONIC PARTS CASE
E-15-8
HZY9-17374-000
GROMMET, SILENCER
E-15-7
HZY9-17371-H00
CASE ASSY, SILENCER
E-15-3
HZY9-16400-H01
THROTTLE BODY ASSY, BFT75A/90A
E-15-5
HMR5-16966-000
JOINT, FUEL TUBE
E-15-1
HZY9-15171-000
PIPE, BREATHER
E-15-16
HZY6-90006-000
SCREW, PAN, 5X18
E-15-2
HZY6-16016-003
SCREW SET
E-15-10
HZY3-32128-000
BRACKET, SENSOR CORD
E-15-11
HRNA-37830-A01
SENSOR ASSY, MAP
E-15-13
HRE1-37880-Z01
SENSOR ASSY., AIR TEMP
E-15-12
HPGK-37835-A01
O-RING
E-15-14
HP2A-37881-000
GROMMET, TA SENSOR
E-15-18
HZY9-90027-M00
BOLT, FLANGE 8X60
