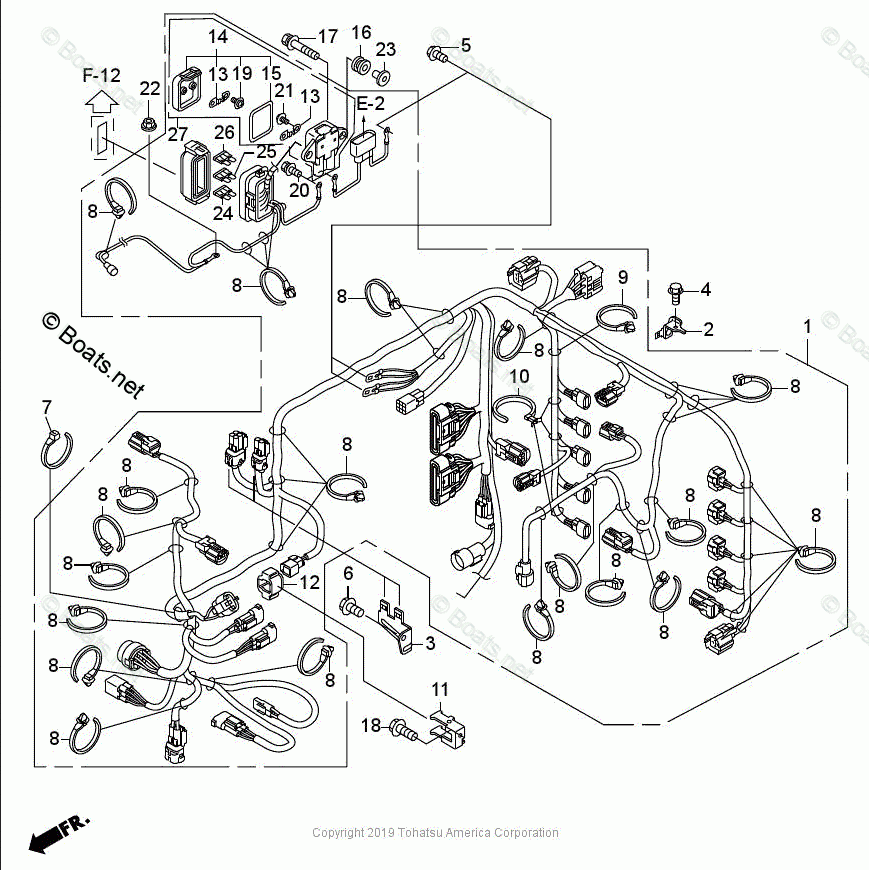

Main Wire Harness

Tohatsu BFT90AK1
Tohatsu
#oem кодцена
F-7-24
HCO-98200-41000
FUSE, MINI (10A)
F-7-3
HZY9-32103-000
BRACKET C, COUPLER
F-7-18
HZZ5-90011-M00
BOLT, FLANGE 6X14 (CT200)
F-7-4
HZZ5-90011-M00
BOLT, FLANGE 6X14 (CT200)
F-7-12
HZZ3-32127-000
SUSPENSION, COUPLER
F-7-15
HZY9-38233-000
PACKING, FUSE BOX COVER
F-7-14
HZY9-38216-003
COVER ASSY., FUSE (70A)
F-7-13
HZY9-38201-003
FUSE 70A
F-7-11
HZY9-32104-H00
BRACKET, COUPLER
F-7-20
HZW5-90106-000
BOLT-WASHER, 5X9
F-7-25
HCO-98200-41500
FUSE, MINI (15A)
F-7-19
HZW5-90105-003
SCREW-WASHER, 3X7
F-7-22
HZW1-90203-000
NUT-WASHER, 8MM
F-7-16
HZW1-38551-000
GROMMET, RELAY
F-7-9
HSW5-91551-003
CLIP, HARNESS BAND (BROWN)
F-7-10
HSJ6-91558-003
STRAP, HARNESS (30) (BLACK)
F-7-21
HSB2-90153-003
SCREW-WASHER, 5X10
F-7-8
HS0A-91541-003
CLIP, HARNESS BAND (BLACK)
F-7-26
HCO-98200-43000
FUSE, MINI (30A)
F-7-27
HZY9-38210-003
BOX ASSY,FUSE(70A) BFT75/90AK
