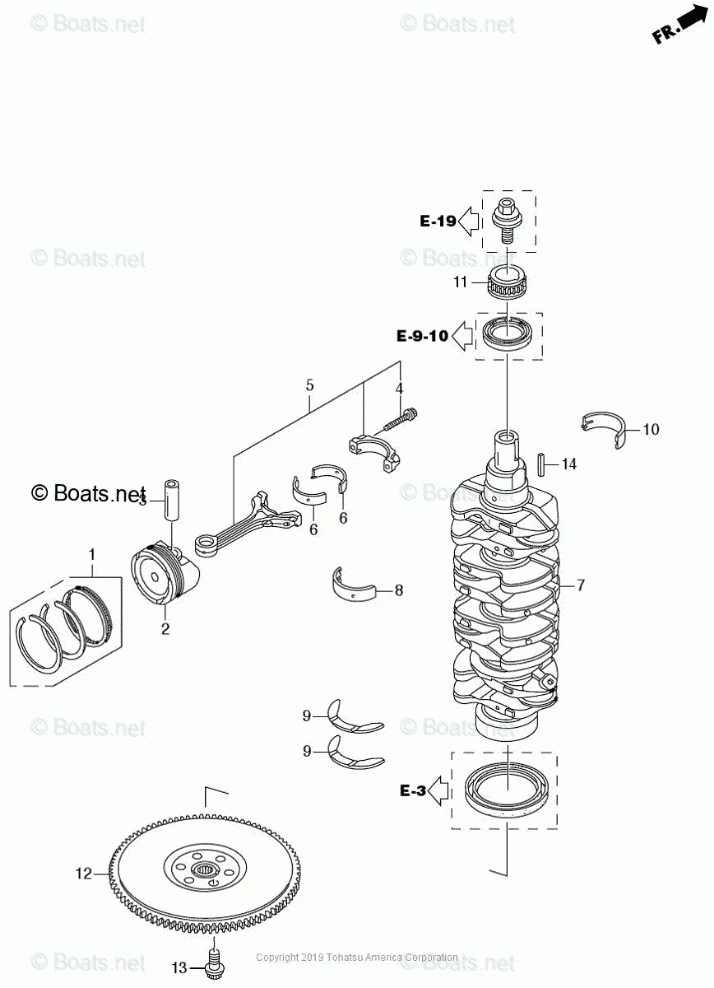

Crankshaft / Piston / Flywheel

Tohatsu BFT90AK1
Tohatsu
#oem кодцена
E-7-14
HPH7-90704-000
KEY, SPECIAL
E-7-10
HPWA-13343-003
BEARING C, MAIN LOWER (BROWN)
E-7-12
HZY9-31110-000ZB
FLYWHEEL ASSY
E-7-11
HZY9-13621-H01
SPROCKET, CAM CHAIN (23T)
E-7-9
HZY9-13331-003
WASHER, THRUST
E-7-7
HZY9-13310-010
CRANKSHAFT ASSY
E-7-5
HZY9-13210-010
ROD, CONNECTING
E-7-2
HZY9-13101-H00
PISTON (STD.)
E-7-1
HZY9-13011-010
RING SET, PISTON (0.25 O/S)
E-7-1
HZY9-13010-H00
RING SET, PISTON (STD.)
E-7-13
HZW1-90002-010
BOLT, 12MM
E-7-10
HPWA-13348-003
BEARING H, MAIN LOWER (WHITE)
E-7-10
HPWA-13347-003
BEARING G, MAIN LOWER (RED)
E-7-10
HPWA-13346-003
BEARING F, MAIN LOWER (PINK)
E-7-10
HPWA-13345-003
BEARING E, MAIN LOWER (YELLOW)
E-7-10
HPWA-13344-003
BEARING D, MAIN LOWER (GREEN)
E-7-10
HPWA-13342-003
BEARING B, MAIN LOWER (BLACK)
E-7-3
HPWA-13111-000
ПАЛЕЦ ПОРШНЕВОЙ
E-7-6
HPWA-13216-003
BEARING F, CONNECTING ROD (PINK)
E-7-4
HPWA-13204-003
BOLT, CONNECTING ROD
E-7-6
HPWA-13211-003
BEARING A, CONNECTING ROD (BLUE)
E-7-6
HPWA-13212-003
BEARING B, CONNECTING ROD (BLACK)
E-7-6
HPWA-13213-003
BEARING C, CONNECTING ROD (BROWN)
E-7-6
HPWA-13214-003
BEARING D, CONNECTING ROD (GREEN)
E-7-6
HPWA-13215-003
BEARING E, CONNECTING ROD (YELLOW)
E-7-6
HPWA-13217-003
BEARING G, CONNECTING ROD (RED)
E-7-8
HPWA-13328-003
BEARING H, MAIN UPPER (WHITE)
E-7-8
HPWA-13322-003
BEARING B, MAIN UPPER (BLACK)
E-7-8
HPWA-13323-003
BEARING C, MAIN UPPER (BROWN)
E-7-8
HPWA-13324-003
BEARING D, MAIN UPPER (GREEN)
E-7-8
HPWA-13325-003
BEARING E, MAIN UPPER (YELLOW)
E-7-8
HPWA-13326-003
BEARING F, MAIN UPPER (PINK)
E-7-8
HPWA-13327-003
BEARING G, MAIN UPPER (RED)
E-7-2
HZZ0-13102-000
PISTON (0.25 O/S)
