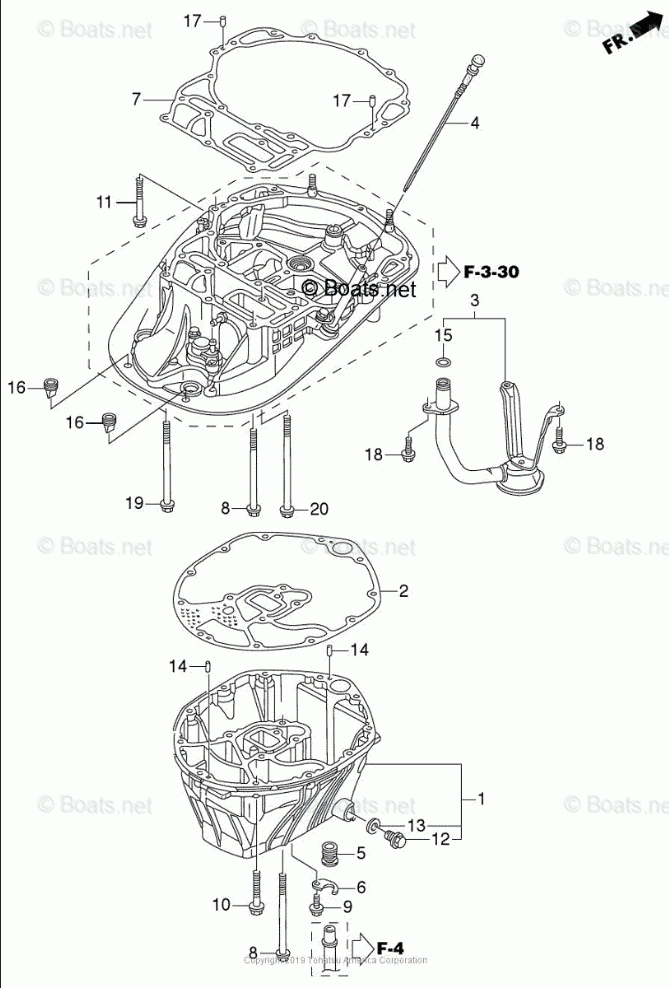

Oil Case

Tohatsu BFT90AK1

Oil Case

#

oem код

название

цена

E-6-17

HCO-94301-06100

DOWEL PIN 6X10

DOWEL PIN 6X10

E-6-9

BOLT, FLANGE, 6X12

BOLT, FLANGE, 6X12

E-6-4

GAUGE, OIL LEVEL

GAUGE, OIL LEVEL

E-6-7

GASKET, MOUNT CASE

GASKET, MOUNT CASE

E-6-6

PLATE, WATER TUBE

PLATE, WATER TUBE

E-6-3

STRAINER COMP., OIL

STRAINER COMP., OIL

E-6-2

PACKING, OIL PAN

PACKING, OIL PAN

E-6-1

HZY9-11320-010ZA

CASE ASSY., OIL

CASE ASSY., OIL

E-6-8

BOLT, FLANGE, 8X100

BOLT, FLANGE, 8X100

E-6-5

GROMMET, WATER TUBE

GROMMET, WATER TUBE

E-6-18

HCO-96300-0601609

BOLT, FLANGE DR 6X16

BOLT, FLANGE DR 6X16

E-6-14

DOWEL PIN, 6X10

DOWEL PIN, 6X10

E-6-12

BOLT, DRAIN PLUG

BOLT, DRAIN PLUG

E-6-13

WASHER, PLUG DRAIN 12MM

WASHER, PLUG DRAIN 12MM

E-6-15

O-RING, 15.5X2.7

O-RING, 15.5X2.7

E-6-11

BOLT, FLANGE 8X45 (SUS-D)

BOLT, FLANGE 8X45 (SUS-D)

E-6-10

BOLT, FLANGE 8X35 (SUS)

BOLT, FLANGE 8X35 (SUS)

E-6-20

HCO-96300-0812009

BOLT, FLANGE DR 8X120 HES NASH

BOLT, FLANGE DR 8X120 HES NASH

E-6-19

HCO-96300-0810009

BOLT, FLANGE DR 8X100

BOLT, FLANGE DR 8X100

E-6-16

GROMMET, 1 WAY

GROMMET, 1 WAY
