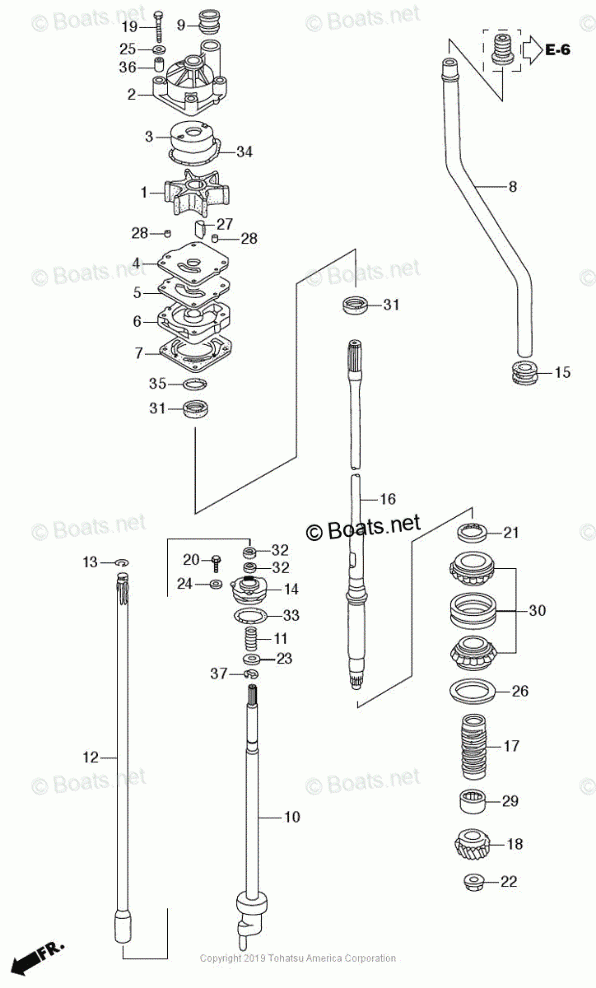

Water Pump + Vertical Shaft

Tohatsu BFT90AK1
Tohatsu
#oem кодцена
F-4-23
H723-90472-000
WASHER, PLAIN 12MM
F-4-1
HZY9-19210-H01
IMPELLER, WATER PUMP (BFT75A/90A)
F-4-27
HZW1-90752-B02
KEY, WOODRUFF
F-4-29
HZW1-91052-B02
BEARING, NEEDLE 1-1/8X1-1/2X1-14
F-4-30
HZW1-91054-B31
BEARING, TAPER ROLLER 30X62X40
F-4-34
HZW1-91356-B00
O-RING, WATER PUMP
F-4-20
HZW9-90102-000
BOLT, FLANGE, 6X12
F-4-11
HZY3-24318-000
SPRING, SHIFT ROD
F-4-32
HZY3-91254-003
SEAL, WATER 12X21X6
F-4-36
HZY6-91552-000
COLLAR, DISTANCE
F-4-3
HZY9-19223-H00
LINER, PUMP
F-4-26
HZW1-90520-B00
SHIM C, GEAR (0.30)
F-4-8
HZY9-19251-000
TUBE, WATER (L)
F-4-8
HZY9-19251-610
TUBE, WATER (XL)
F-4-12
HZY9-24320-610
ROD A , SHIFT (XL)
F-4-14
HZY9-24343-H00
HOLDER, SHIFT ROD
F-4-6
HZZ0-19241-000
HOUSING, WATER PUMP
F-4-10
HZZ0-24310-000
ROD, SHIFT (L)
F-4-31
HZZ3-91253-003
SEAL, WATER 23X36X6
F-4-2
HZY9-19221-H01
HOUSING, IMPELLER
F-4-26
HZW1-90521-B00
SHIM D, GEAR (0.50)
F-4-26
HZW1-90519-B00
SHIM B, GEAR (0.15)
F-4-25
H921-90514-000
WASHER, 8MM
F-4-9
HZW1-19253-B01
RING, WATER TUBE SEAL
F-4-37
HCO-94540-10019
E RING 10
F-4-35
HMB0-91359-000
O-RING 58.5X3.5
F-4-33
HMJ0-91308-003
O-RING
F-4-24
HZV4-90511-000
WASHER, PLAIN, 6MM
F-4-19
HZV5-90010-000
BOLT, HEX., 8X55
F-4-28
HZV5-90756-000
DOWEL PIN, 6X10
F-4-5
HZW1-19234-B00
GASKET B, IMPELLER
F-4-7
HZW1-19242-B00
GASKET, WATER PUMP
F-4-12
HZW1-24320-B00
ROD, SHIFT (L)
F-4-26
HZW1-90518-B00
SHIM A, GEAR (0.10)
F-4-13
HZW1-24327-000
RING, STOPPER
F-4-15
HZW1-40204-000
GROMMET, EXTENSION CASE
F-4-16
HZW1-41112-B03
DRIVE SHAFT (L)
F-4-16
HZW1-41112-B33
DRIVE SHAFT (UL)
F-4-17
HZW1-41116-B00
SLINGER, OIL
F-4-18
HZW1-41131-B01
GEAR, PINION (12T)
F-4-21
HZW1-90242-000
NUT, LOCK (64MM)
F-4-22
HZW1-90303-B03
NUT, HEX (16MM)
F-4-4
HZY9-19231-H01
COVER, IMPELLER
