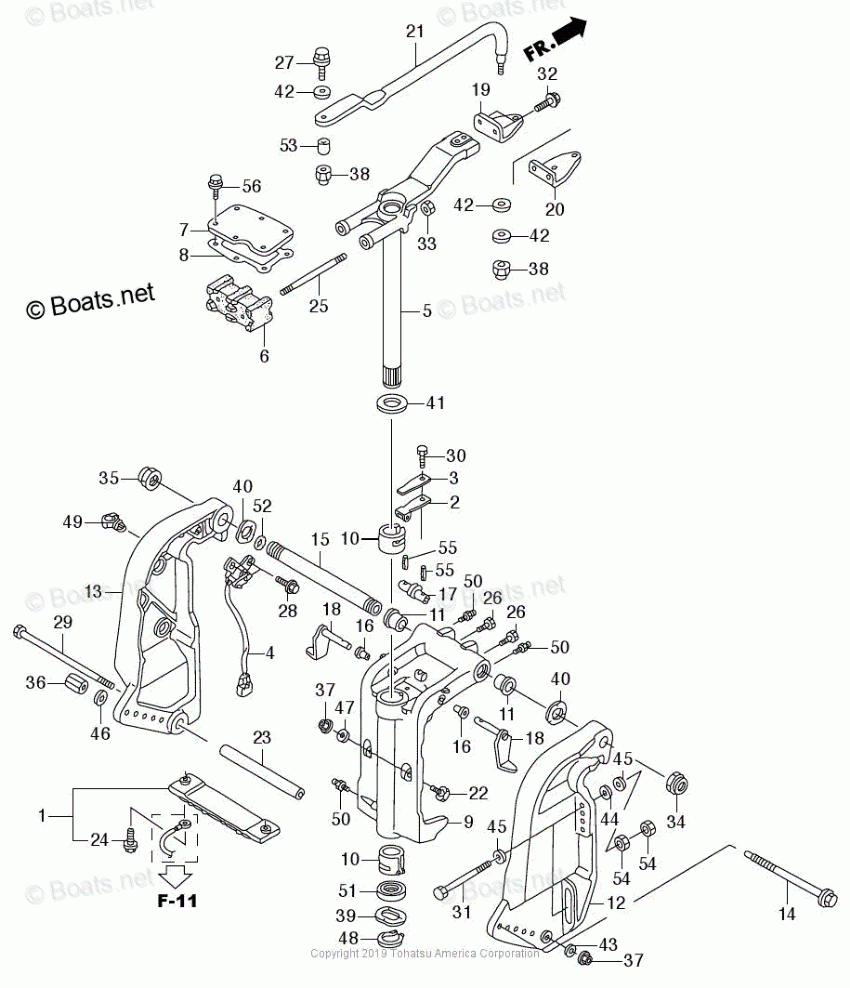

Stern Bracket + Swivel Case

Tohatsu BFT115A
Tohatsu
#oem кодцена
F-10-49
H763-90681-A01
CLIP, WIRE HARN
F-10-24
HZW9-90009-000
BOLT, FLANGE, 6X23
F-10-13
HZW1-50311-070ZC
BRACKET, L. STERN
F-10-21
HZW1-53238-010
ROD, STEERING
F-10-27
HZW1-90105-000
BOLT, 3/8-24 UNF
F-10-37
HZW4-90306-003
NUT, FLANGE, 10MM
F-10-14
HZW5-50341-010
ROD, ADJUSTING
F-10-33
HZW5-90302-003
NUT, FLANGE, 12MM
F-10-36
HZW5-90304-000
NUT, ADJUSTING ROD
F-10-28
HZW9-90105-000
BOLT, FLANGE, 6X20
F-10-11
HZW1-50214-000
BUSH, SWIVEL CASE
F-10-32
HZW9-90154-000
BOLT, FLANGE, 10X25
F-10-31
HZX2-90129-000
BOLT, HEX, 12 X 130
F-10-4
HZY6-35660-013
SENSOR ASSY, TRIM ANGLE
F-10-31
HZZ3-90129-000
BOLT, HEX, 12 X 119
F-10-10
HZZ5-50211-000
LINER, SWIVEL CASE
F-10-15
HZY9-50381-000
SHAFT, TILTING
F-10-29
HZW1-90108-000
BOLT, HEX., 10X235
F-10-12
HZW1-50301-070ZC
BRACKET, R. STERN
F-10-9
HZW1-50201-040ZC
CASE, SWIVEL
F-10-43
H921-90511-000
WASHER, PLAIN, 10MM
F-10-41
HZV5-90504-000
WASHER, 34MM
F-10-54
HCO-94001-12490-0S
NUT, HEX 12MM
F-10-42
HZV4-90514-000
WASHER, 10MM
F-10-16
HZV5-50522-000
BUSH, TILT ARM
F-10-34
HZV5-90304-013
NUT, SELF-LOCK(7/8-14UNF)
F-10-38
HZV5-90307-003
NUT, SELF LOCK, 3/8-24 UNF
F-10-39
HZV5-90501-000
WAVE WASHER, 40MM
F-10-40
HZV5-90502-000
WASHER, WAVE, 26MM
F-10-44
HZV5-90552-000
WASHER, PLAIN, 12MM
F-10-1
HZW1-06411-020
METAL KIT, ANODE
F-10-46
HZV5-90559-000
WASHER, PLAIN 12MM
F-10-45
HZV5-90559-000
WASHER, PLAIN 12MM
F-10-47
HZV5-90563-000
WASHER, PLAIN, 10MM
F-10-48
HZV5-90651-000
CIRCLIP, 39MM
F-10-51
HZV5-91256-003
OIL SEAL (39.5X52X6)
F-10-52
HZV5-91352-000
O-RING, 15.54X2.26
F-10-53
HZV5-91560-000
COLLAR, STEERING ROD
F-10-50
HZV7-90951-010
NIPPLE, GREASE
F-10-23
HZZ0-56539-C00
COLLAR, LOWER CYLINDER
